Uneven product color

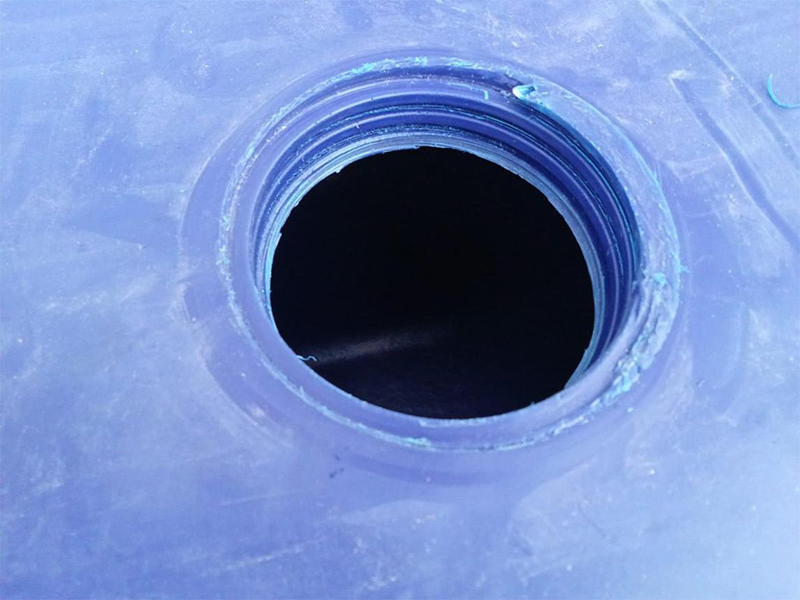

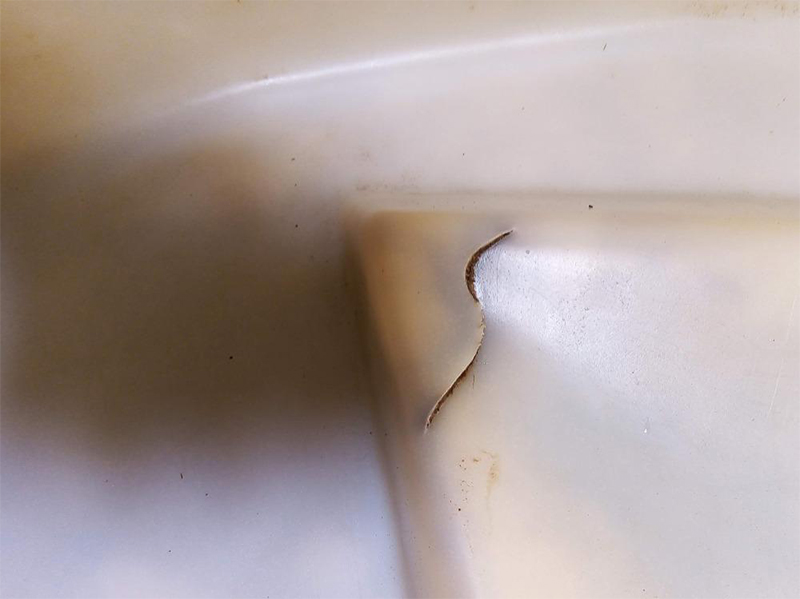

Surface defects
Bubble formation
Incomplete mold coverage
Increased material waste
Longer molding cycles
Designed for Rotomolded Water Tank Production
Our pulverizer machines are specially designed for producing PE powder used in water tank manufacturing.
Benefits include:

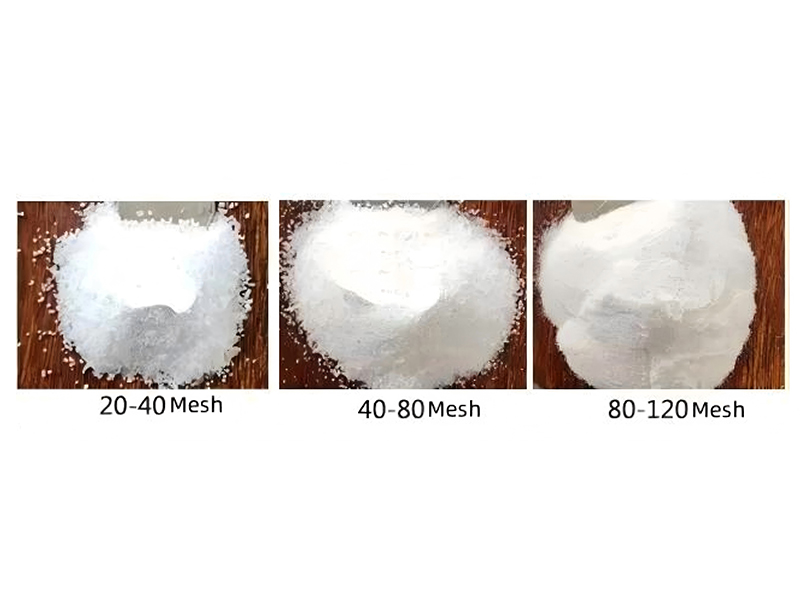

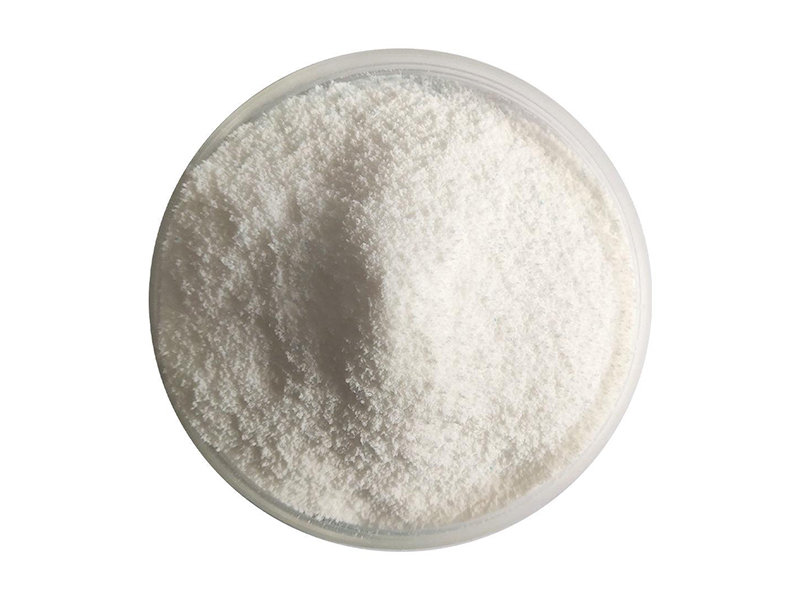

Uniform powder particle size Excellent powder flowability

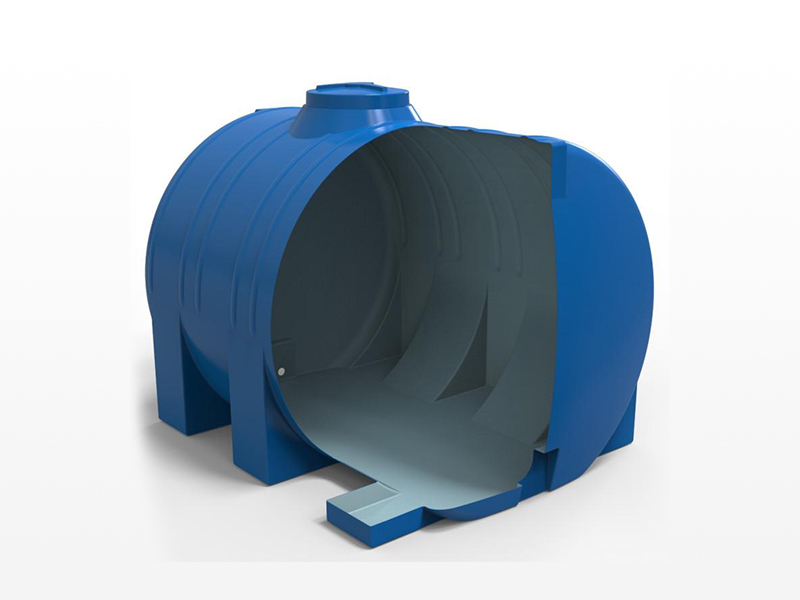

Stable molding performance Reduced material waste

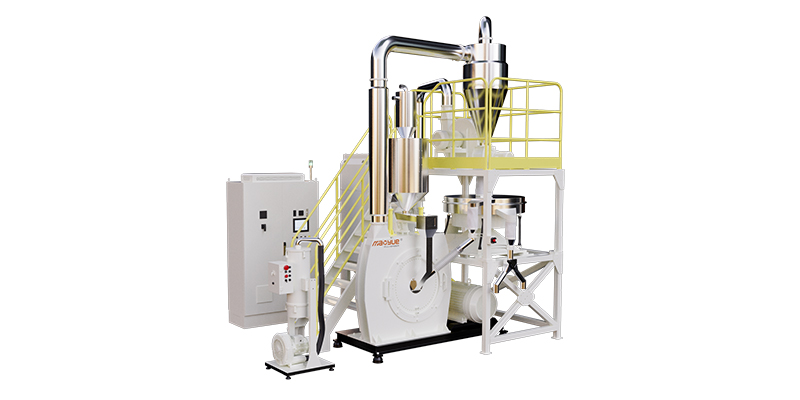

Improved production efficiency Consistent product quality
The precision grinding system ensures every batch of powder meets the requirements of modern rotational molding production.
LLDPE Granules
HDPE Granules
Rotomolding Grade PE
Virgin PE Materials
Modified PE Compounds
Recycled PE Materials
Residential Water Tanks
Agricultural Water Tanks
Chemical Storage Tanks
Industrial Storage Containers

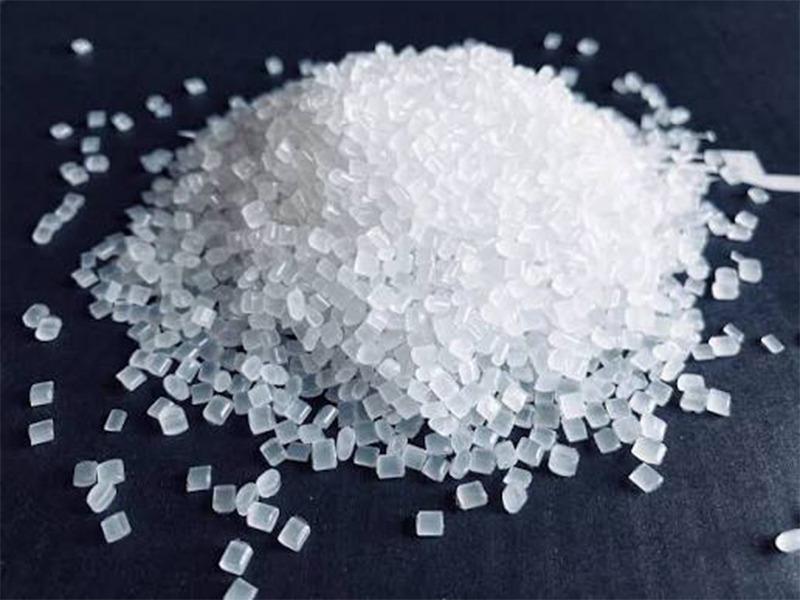

Raw Material Preparation
Rotomolding-grade PE granules are prepared for processing.

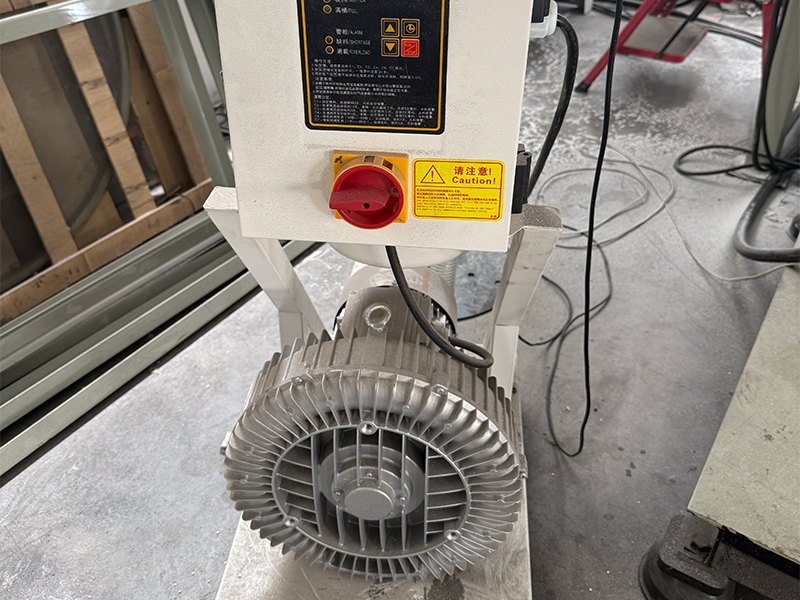

Feeding System
Materials are fed into the pulverizing system.

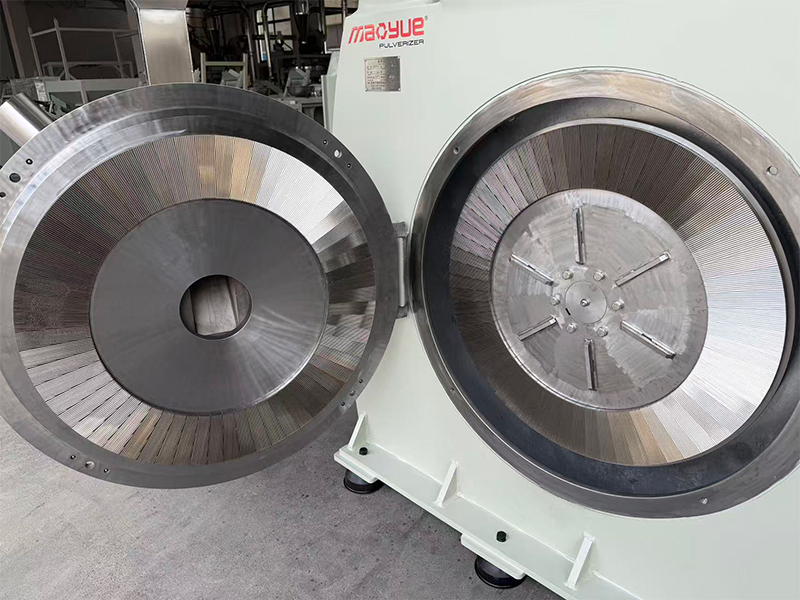

High-Speed Pulverizing
The grinding chamber and pulverizer segment blades reduce the material into fine PE powder.

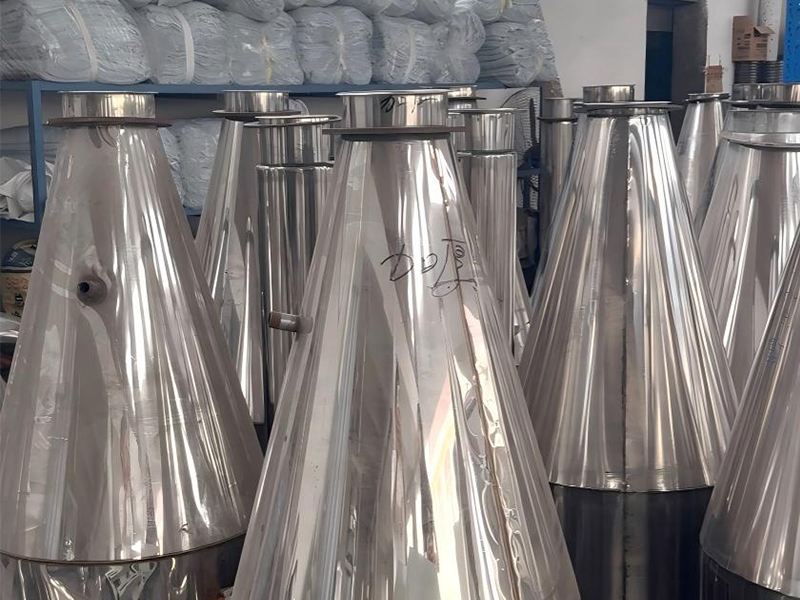

Airflow Classification
The airflow system separates qualified powder particles.

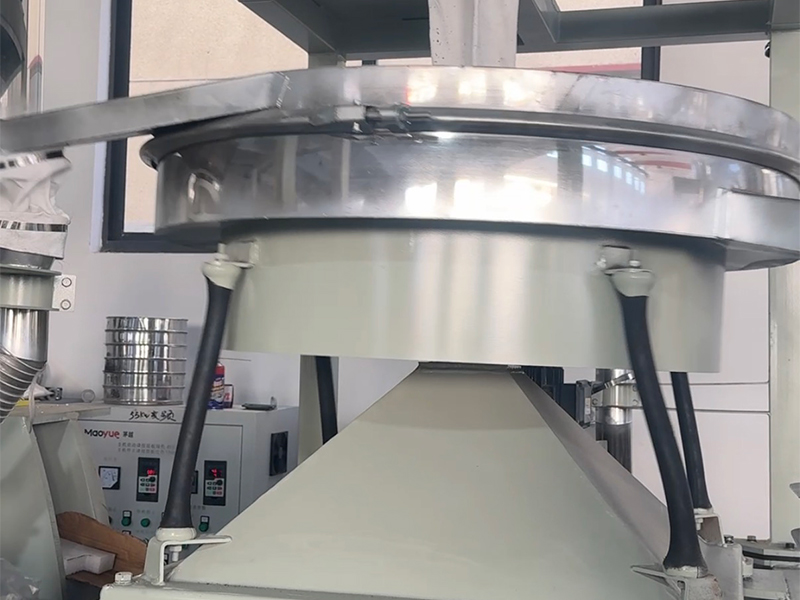

Screening
Powder is screened to achieve the required particle size.

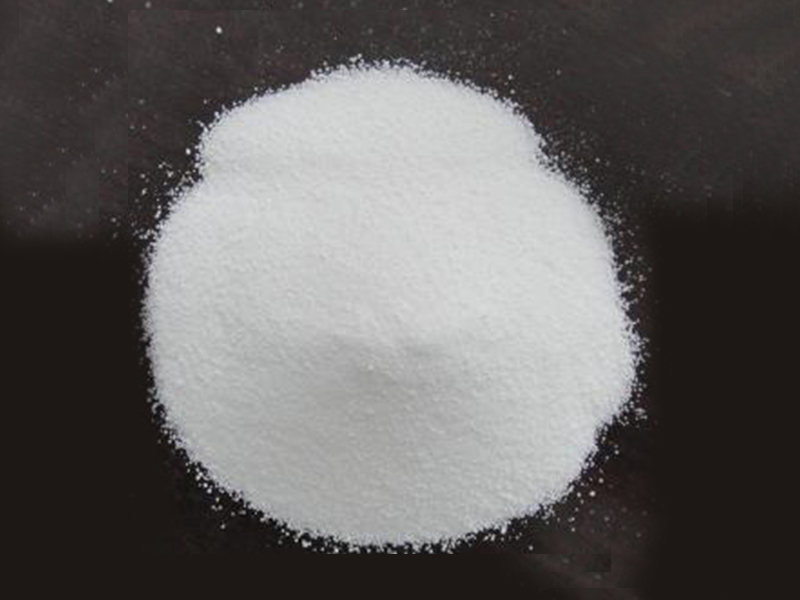

Finished Powder Collection
The finished PE powder is collected and transferred to rotational molding production.
Products Manufactured Using PE Powder

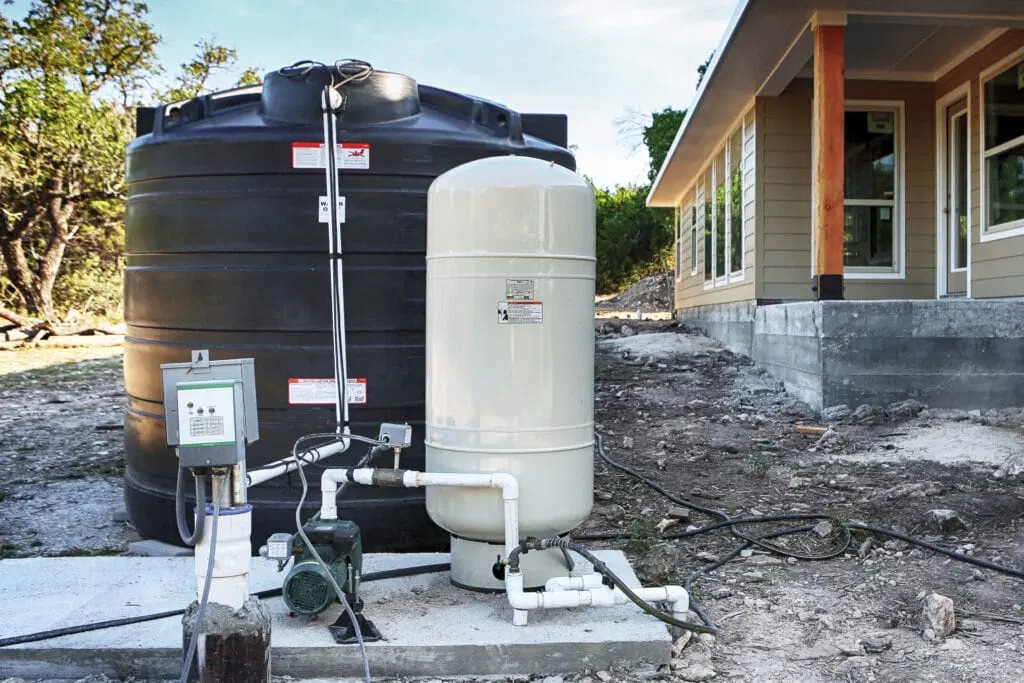

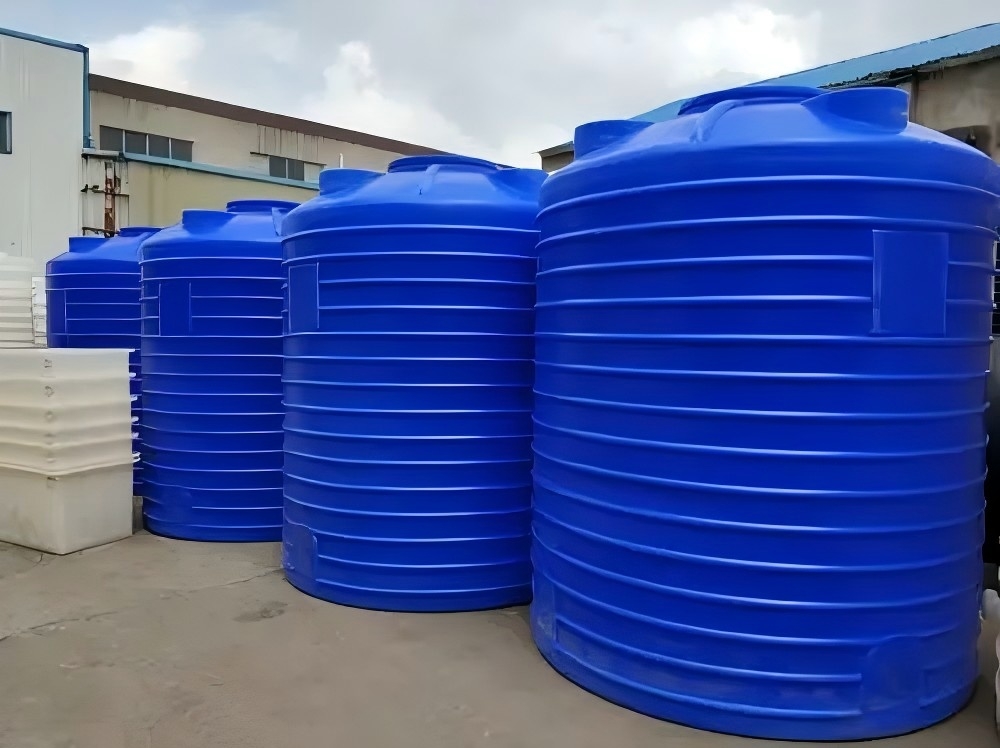

Residential Water Tanks
Durable storage tanks for homes and communities.

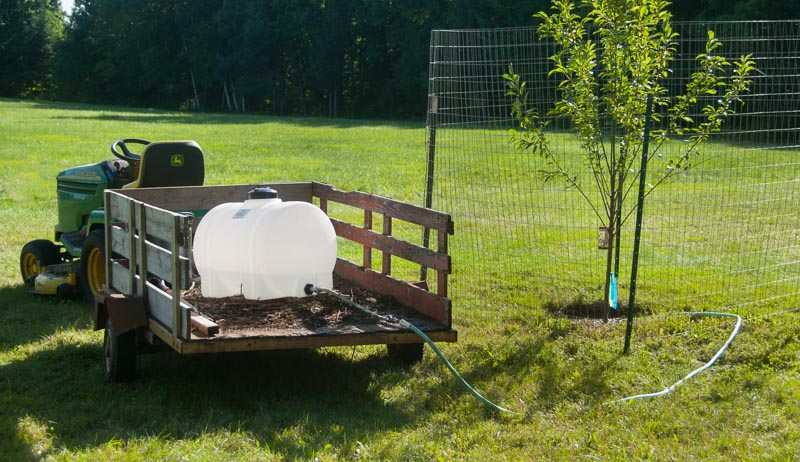

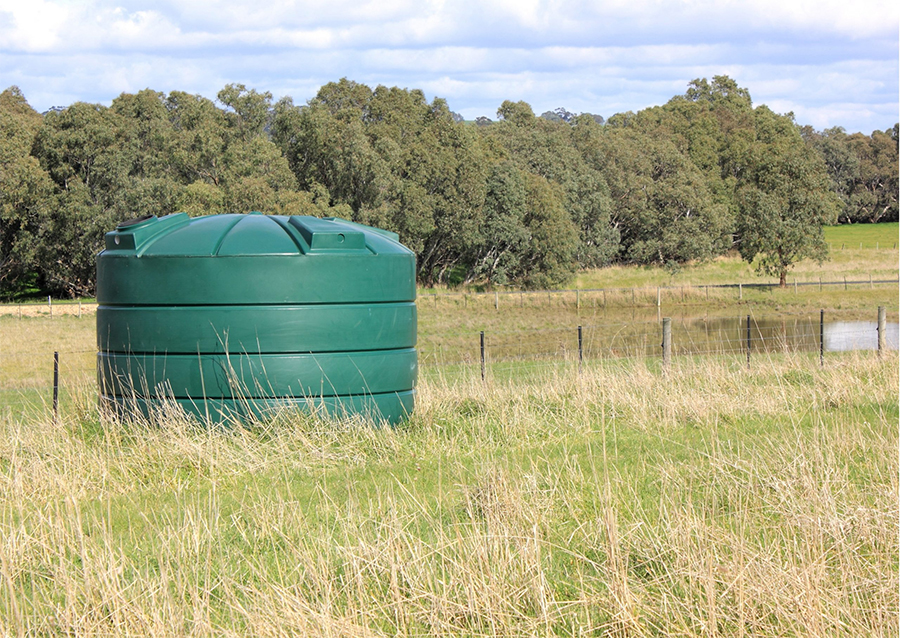

Agricultural Water Tanks
Large-capacity irrigation and farming tanks.

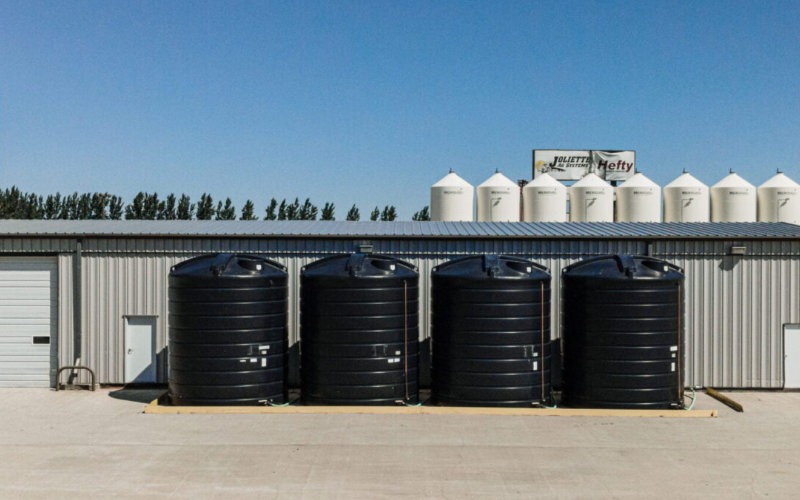

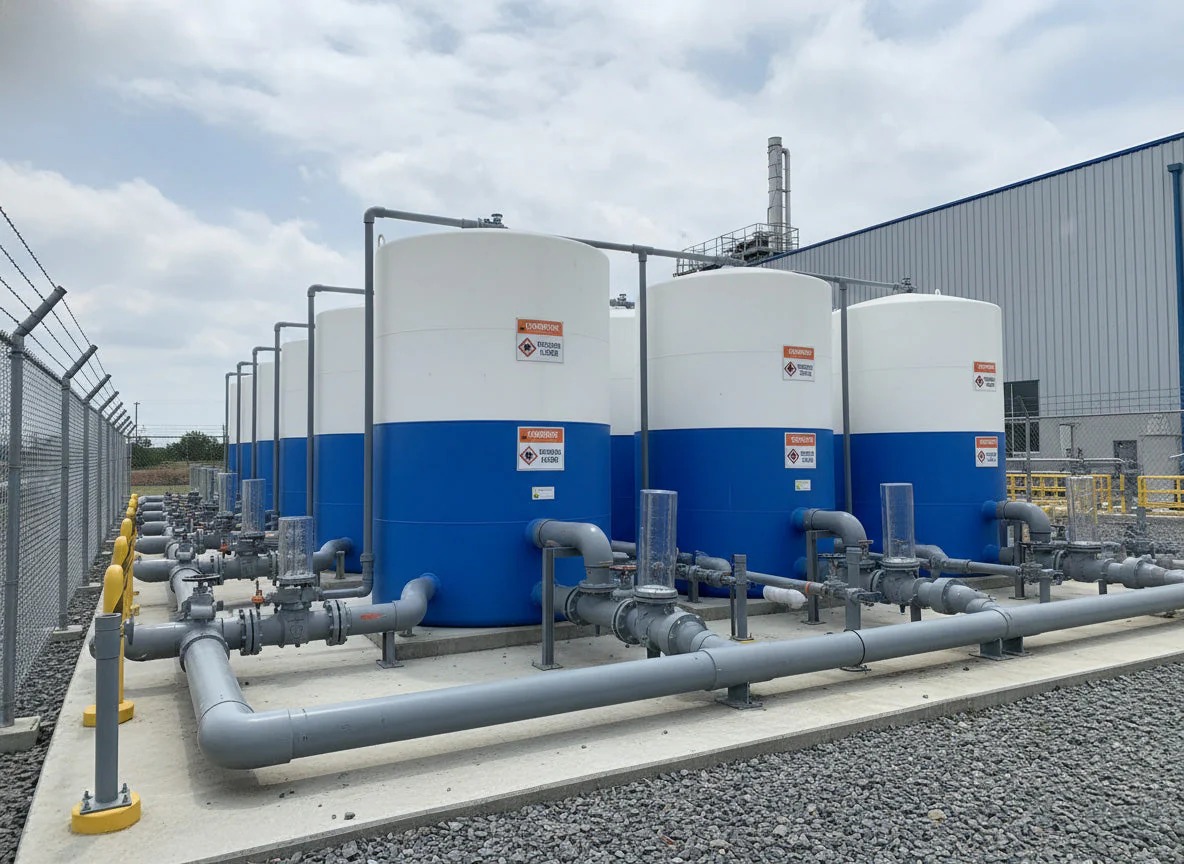

Industrial Storage Tanks
Chemical and industrial liquid storage systems.

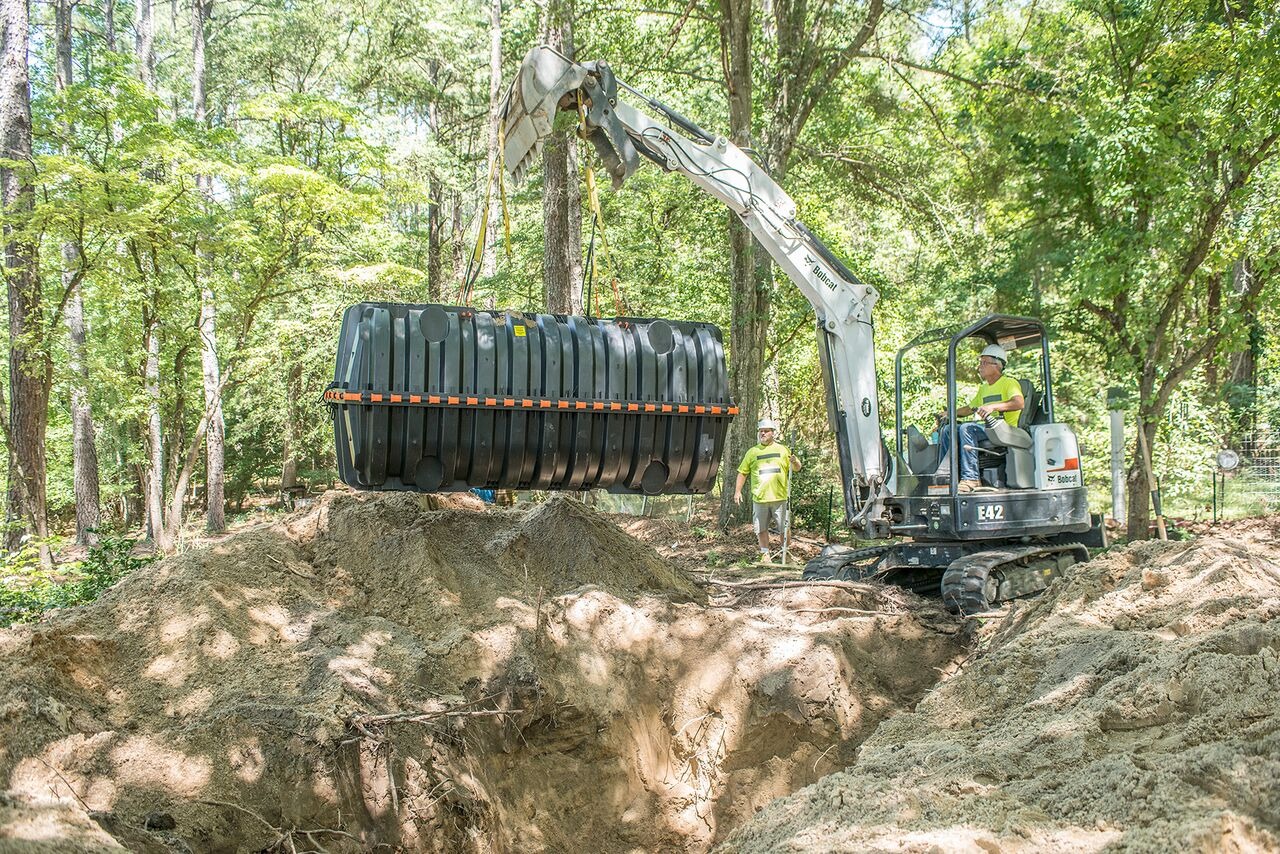

Septic Tanks
Rotomolded wastewater treatment systems.

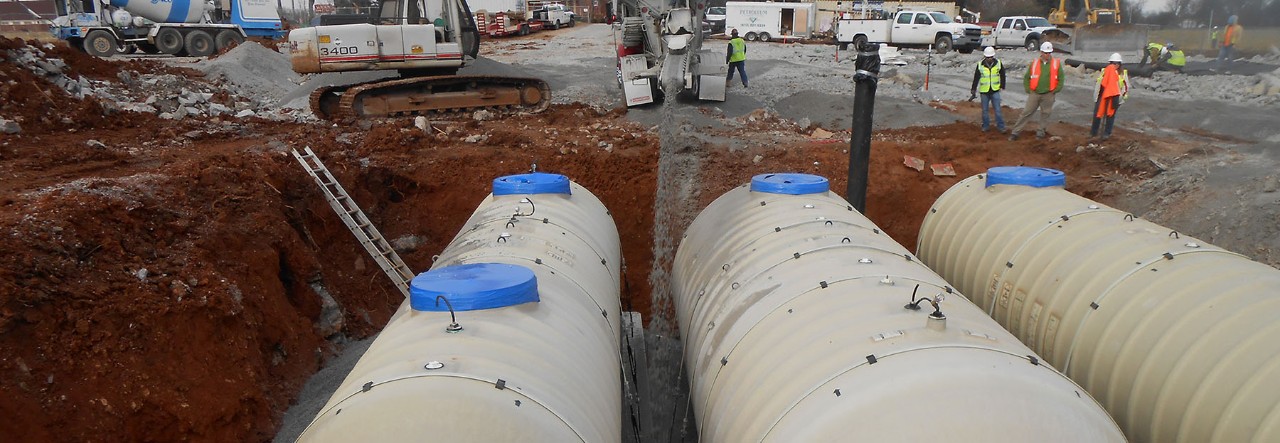

Underground Storage Tanks
Heavy-duty storage solutions for industrial applications.

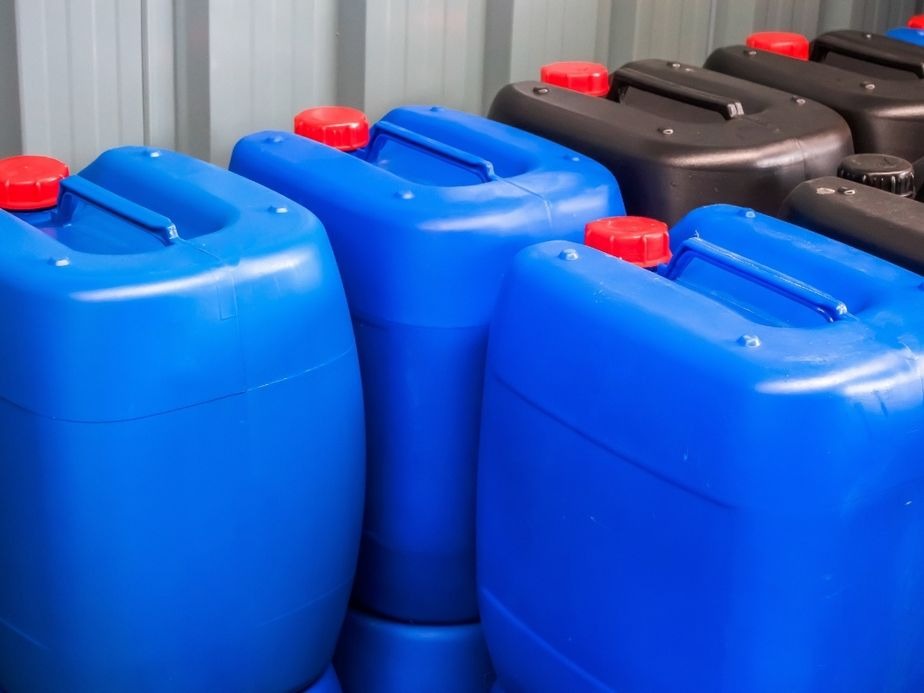

Custom Rotomolded Containers
Large molded products requiring consistent powder quality.
Advanced CNC Manufacturing for Stable Pulverizer Quality
Maoyue operates advanced CNC machining equipment and strict manufacturing processes to ensure stable machine quality and long-term performance.

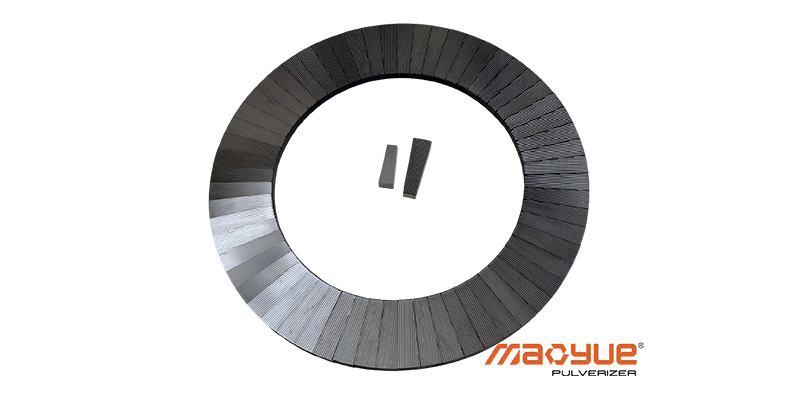

Our precision-produced pulverizer segment blades help maintain consistent powder fineness and reliable industrial operation.
Direct factory manufacturer
Precision CNC machining
Strict quality control
OEM & ODM support
Customized solutions
Fast delivery
| Type | 500 | 600 | 800 |
| diameter of disc | 500mm | 600mm | 800mm |
| Capacity | 50-160 kg/h | 180-320 kg/h | 450-900 kg/h |
| Mesh size | 10 to 30 Mesh | 10 to 50 Mesh | 10 to 50 Mesh |
| Drive motor | 37/45kw | 45/55kw | 75/90/110/132 kw |
| Speed control | Star delta/Soft start/Inverter | Star delta/Soft start/Inverter | Inverter |
| Belt pulley standard | European standard（BUT） | European standard（BUT） | European standard（BUT） |
| Material of grinding disc | D2 | DC53 | DC53(Separated) |
| Blower motor | 5.5/7.5kw | 7.5kw | 11/15kw |
| Pipe material | All stainless steel | All stainless steel | All stainless steel |
| Diameter size of pipe | 159 | 159 | 178/203 |
| Diameter of vibrator | 1000mm | 1200mm | 1200/1500mm |
| Motor power of Vibrating screen | 1.1kw | 1.1kw | 1.1/1.5kw |
| Feeding method | Vacuum feeding | Vacuum feeding | Vacuum feeding |
| Bag diameter size of dust collector | 300mm | 300mm | 300mm |
| Cooling method | Water cooling,one is enter,another is out | Water cooling,one is enter,another is out | Water cooling,one is enter,another is out |
Why Choose Maoyue
Direct Factory Manufacturer
Maoyue specializes in manufacturing plastic pulverizer machines and pulverizer segment blades for industrial powder production applications.
Customized Pulverizer Solutions
We provide customized solutions based on:
Material type,Required mesh size,Production capacity,Factory layout.
Precision CNC Manufacturing
Our pulverizer segment blades are precision-machined for accurate edge geometry and stable long-term operation.
Professional Technical Support
Our engineering team provides:
Machine selection support,Powder testing,Installation guidance,After-sales service.
North African-Egypt
We are forging deep partnerships with Egyptian for Roto and Masterbatch Company (ERMC) and PCC Plastic & Consultations Centre (PCC) to unlock the vast North African market and establish a strong foothold in Egypt's masterbatch and rotomoulding sectors.
Middle Eastern-Saudi Arabia
As a supplier to the rotomoulding industry, we have supported the Middle Eastern market and gained their recognition. We commemorated our partnership with clients in Saudi Arabia through photographs, and upon receiving machinery at their Qatar facility, they promptly provided positive feedback videos for our promotional use. Furthermore, they have repeatedly recommended us to other local clients.
1.What material is commonly used for water tank production?
2.What powder size is recommended for water tank manufacturing?
3.Can recycled PE be used?
4.How does powder quality affect water tank production?
5.Do you provide customized pulverizer systems?
6.How about the capacity of your company?
7.How many employees of your comany?what about the technicists?
8.What’s the payment term?
9.How to deliver the goods to us?
10.Where are your products mainly exported to?
Get Your Water Tank Powder Processing Solution Today
Looking for a reliable PE powder production system for water tank manufacturing?
Maoyue provides:
Factory-direct pricing
Professional technical support
Customized pulverizer solutions
Fast quotation within 24 hours
