MYMF-600
Maoyue
Water, Air
20-120 mesh
3000*3000*4000 mm
PP, PE, PET, EVA
300-500kg/h
600mm
55kw, 75kw

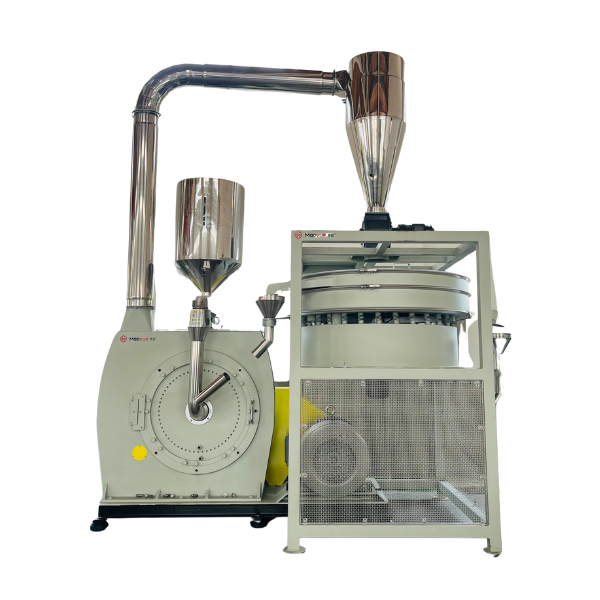

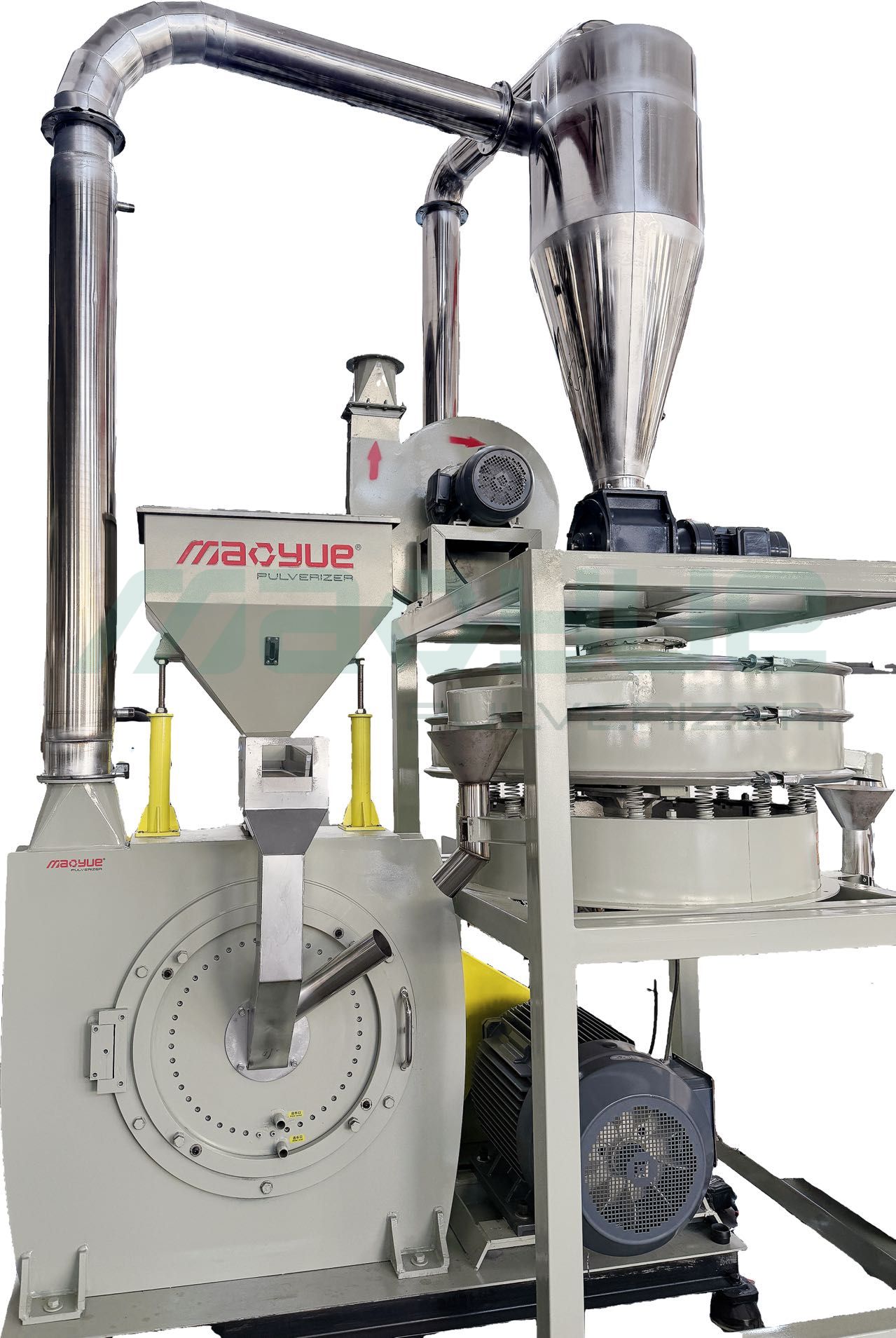

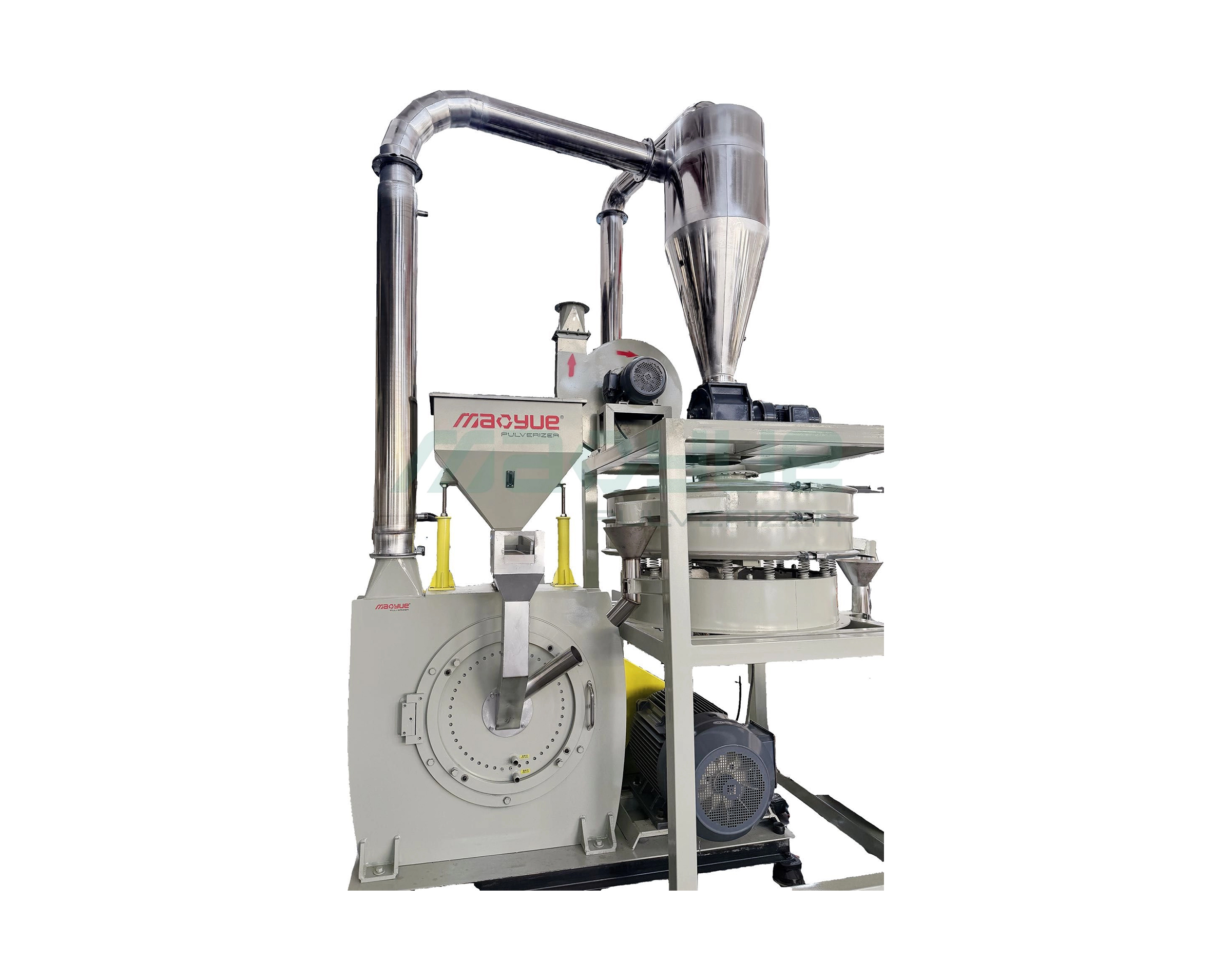

Maoyue PE mill is designed to customize the best quality plastic mill for customers, while ensuring the output, we can grind the particles down to 0.15mm. The feeding method can either be vertical feeding to prevent the material from clogging the machine, or vacuum suction to improve the feeding speed of small particles. The coarseness of the finished powder is realized by adjusting the distance between the grinding discs, and we use DC53 material with extremely high hardness. As the size of the split grinding block can be selected, the PE mill can grind many materials, including PE, PP, LDPE, HDPE, EVA, PET, NBR and so on.
600-PE Pulverizer PP Grinding Machine.pdf
PE, PP, EVA plastic crusher is mainly composed of motor, disc blade, feed fan, vibrating screen, dustremoval system and so on. According to the needs of customers, you can choose some accessories,such as converter, vacuum feeder, screw feeder, magnetic net, metal separator, chiller, pulse dustcollector, metering, weighing and packaging machine.

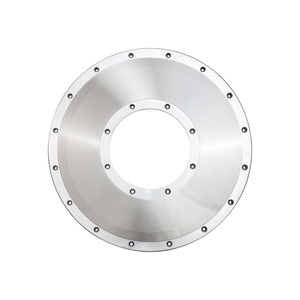

Specialized ultra-high wear-resistant grinding discs, the use of extremely high hardness DC53 material, to provide
good friction, can be changed according to the material size, to achieve the special material special grinding.
The grinding disk and grinding block are made of D2 material, which is extremely wear-resistant and not easy to wear out, with a low scrap rate.
No need to use liquid nitrogen in the grinding process, cost reduction.
Water cooling system is adopted to prevent overheating of bearings, motors and other accessories during operation; the powder making process is sealed, no dust leakage.
The optimal powder shape of the final product and its large specific surface area ensure good mixing and adhesion of the additives, as well as relatively excellent flowability and powder consistency.
| Model | MYMF-600 |
| Length*Width*Height (mm) | 3000*3000*4000 |
| Disc Diameter(mm) | 600 |
| Main Motor(kw) | 55-75 |
| Vibration Motor Power (kw) | 1.5 |
| Fan Power(kw) | 7.5 |
| Discharge Motor(kw） | 1.5 |
| Cooling Method | Water Air |
| Capacity(kg/h) | 300-500 |
This PE grinding machine is suitable for grinding moderate hardness plastics, including rubber and other materials.
The service industries mainly include chemical industry, rotomolding and masterbatch factories.
The powder from grinding PE and other materials can also be used in the production of rubber and plastic composites. Plastic composites have excellent mechanical properties and abrasion resistance, and are widely used in automotive, construction, electronics and other industries. By combining PE powder with rubber, composites can be produced with excellent wear mixing, aging and impact resistance.
Powders such as PE can be used as a component of coatings to improve the abrasion and weathering resistance of the coating as well as resistance to chemical overview.
Plastic grinding machine industry, as a part of the plastic reprocessing field, has shown great development potential and prospects in recent years with the global environmental awareness, the progress of resource recycling technology and the diversification of industrial demand. Plastic grinding machine is mainly used to crush waste plastic, plastic granules or other plastic materials into fine powder, these powders can be reprocessed as raw materials, which are widely used in many fields such as plastic recycling, production and modification.
And under such a trend, Maoyue Group responds positively and expands rapidly, and so far it has more than ten workshops to produce and manufacture PE, PVC grinding machines and their accessories. Since the foundation of our company, all the key components are produced and processed by ourselves, and we are adhering to the best service to our customers!
MAOYUE, founded in changzhou, china in 1990, iscommitted to serving the global plastic processing industry, focusing on the research and development and manufacturing of crushing recycling equipment. As a family-owned enterprise specializing in crushing and milling technology, our goal is always to make our customers a significant success. Through sustainable and stable technologies and products, MAOYUE has become the preferred source manufacturing supplier for crushing mill and the ideal partner for many customers! OEM projects, always maintaining a leading position in the market.
We manufacture products with a yield of 100-1000 kg.
When we have a clear understanding of the customer's needs, we will recommend suitable products for them, and we also support customization; after that, we will send quotations and contracts, and arrange shipment. Customers can pay via TT bank transfer.
We will arrange FOB, CFR, CIF, EXW and other shipping methods according to customers' needs.
Depending on the customer's shipping address, it usually takes 15-45 business days to ship to the destination.
Yes, we have after-sales service. According to the customer's needs, we will guide on line or arrange the technician to install and repair, so as to ensure that the product can be operated normally.
