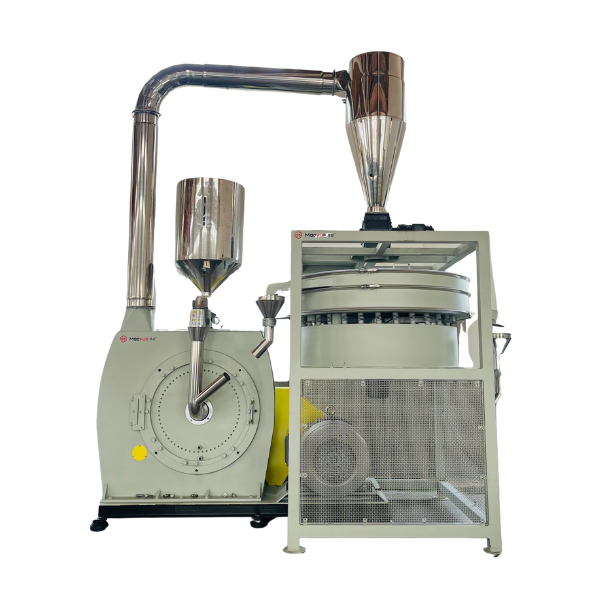

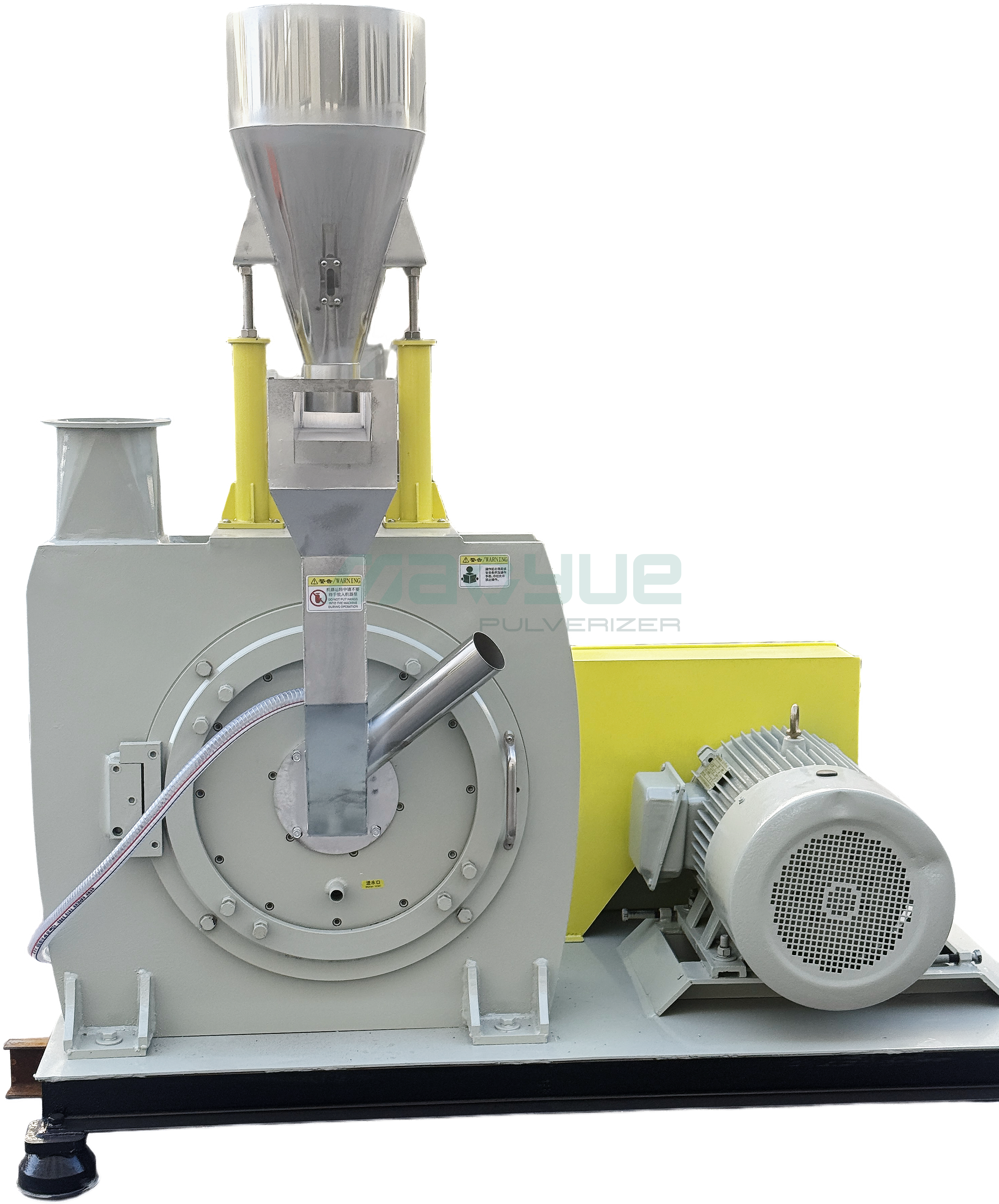

MYMF-500
-
Maoyue
-
500mm
-
45kw, 55kw
-
100-300kg/h
-
20-120 mesh
-
PP, PE, PET, EVA
-
Water, Air
PE Plastic Grinding Machine Features
Superior material
The grinding disk and grinding block are made of D2 material, which is extremely wear-resistant and not easy to wear out, with a low scrap rate.
Low cost
No need to use liquid nitrogen in the grinding process, cost reduction.
Stasble system operates
Water cooling system is adopted to prevent overheating of bearings, motors and other accessories during operation; the powder making process is sealed, no dust leakage.
Good product effect
The optimal powder shape of the final product and its large specific surface area ensure good mixing and adhesion of the additives, as well as relatively excellent flowability and powder consistency.
| Model | MYMF-500 | MYMF-600 | MYMF-800 | ||
| Length*Width*Height (mm) | 2900*2900*3900 | 3000*3000*4000 | 3200*3100*4000 | ||
| Disc Diameter(mm) | 500 | 600 | 800 | ||
| Main Motor(kw) | 45-55 | 55-75 | 75-95 | ||
| Vibration Motor Power (kw) | 1.1 | 1.5 | 1.5 | ||
| Fan Power(kw) | 5.5 | 7.5 | 11 | ||
| Discharge Motor(kw) | 0.75 | 1.5 | 2.2 | ||
| Cooling Method | Water Air | ||||
| Capacity(kg/h) | 100-300 | 200-500 | 400-800 | ||

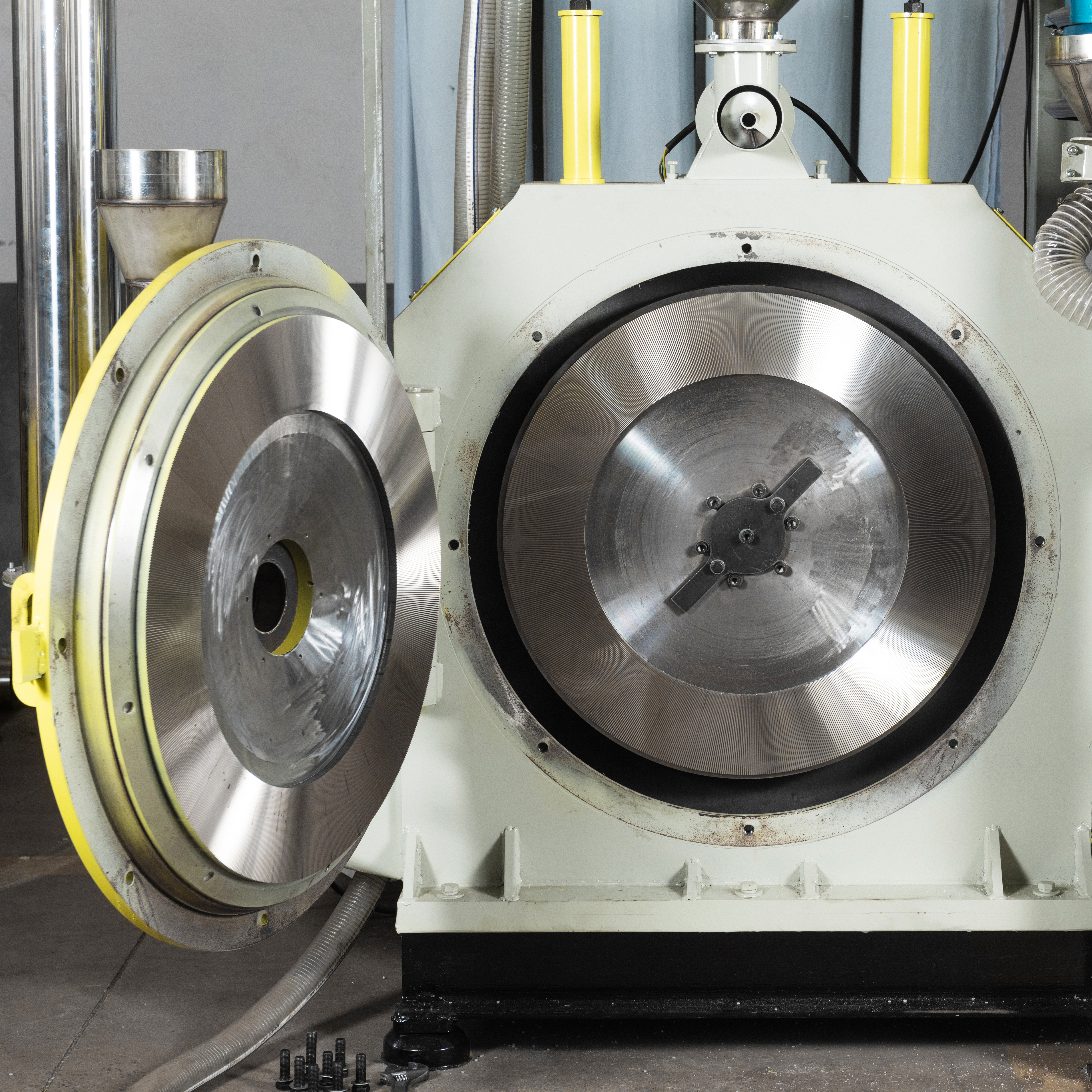

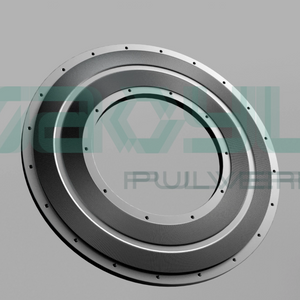

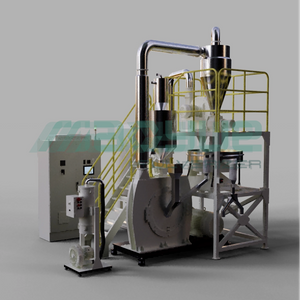

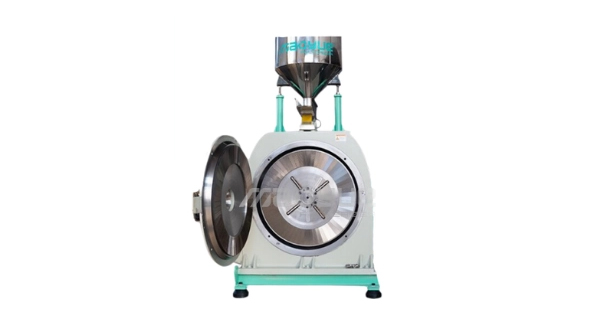

PE/PP Plastic Pulverizer Grinding Disc
Specialized ultra-high wear-resistant grinding discs, the use of extremely high hardness DC53 material, to provide good friction, can be changed according to the material size, to achieve the special material special grinding.

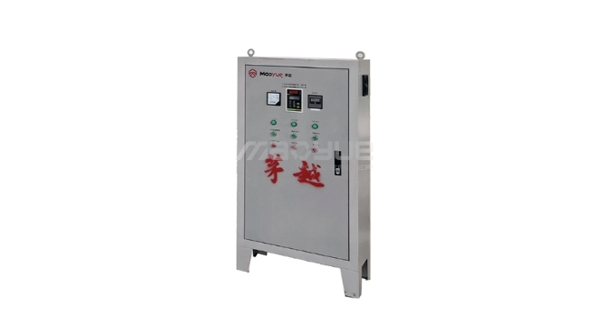

PE Plastic Pulverizer Electrical Cabinet
Adopting Siemens, ABB and other well-known brands of electrical cabinets, according to the specific needs of changing the starting mode, such as soft start, frequency conversion or star-delta.
PE Plastic Pulverizer Vibrating Screen
Self-research and self-production of the unique appearance of high-performance circular sieve, the use of double-deck sieve, not up to the requirements will re-enter the grinding chamber to reprocess, so as to achieve fine grinding, the error is very small, giving capacity to ensure.

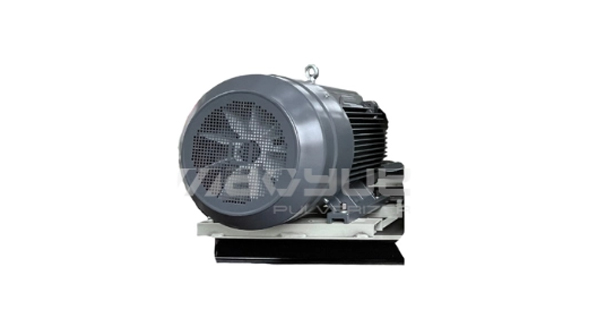

PE Plastic Pulverizer Motor
Each machine is equipped with a specific motor, which can be changed to different power according to different output. It is not hot for a long time, and even in this year, the introduction of permanent magnet motor, the output is higher, and more can save electricity.
PE Plastic Pulverizer Fan
The finished powder is sucked into the vibrating screen through the fan, which is a convenient and simple way to make the material go through the screen completely and prevent the loss of the product.
Why Choose Our Pulverizer Machine Manufacturer
Long Service Life and Low Maintenance Cost
Wear-resistant components and optimized mechanical structure ensure long-term stable operation with reduced maintenance requirements.
Factory Direct Supply — OEM & Custom Support
As a direct manufacturer, we provide OEM services and customized solutions tailored to specific applications.
Energy Saving and Stable Production
The optimized grinding system reduces energy consumption while maintaining high output and consistent powder quality.
Global Shipping & After-Sales Support
Our machines are exported worldwide with professional technical support and responsive after-sales service.
