Specializing in the production of Plastic Pulverizer Machines.

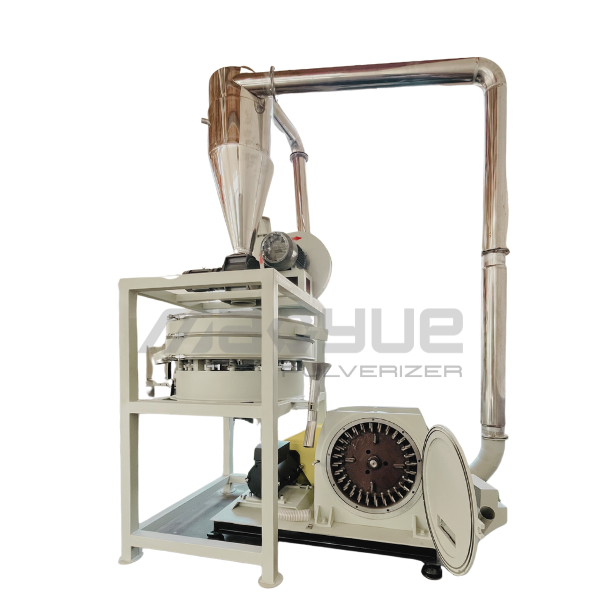

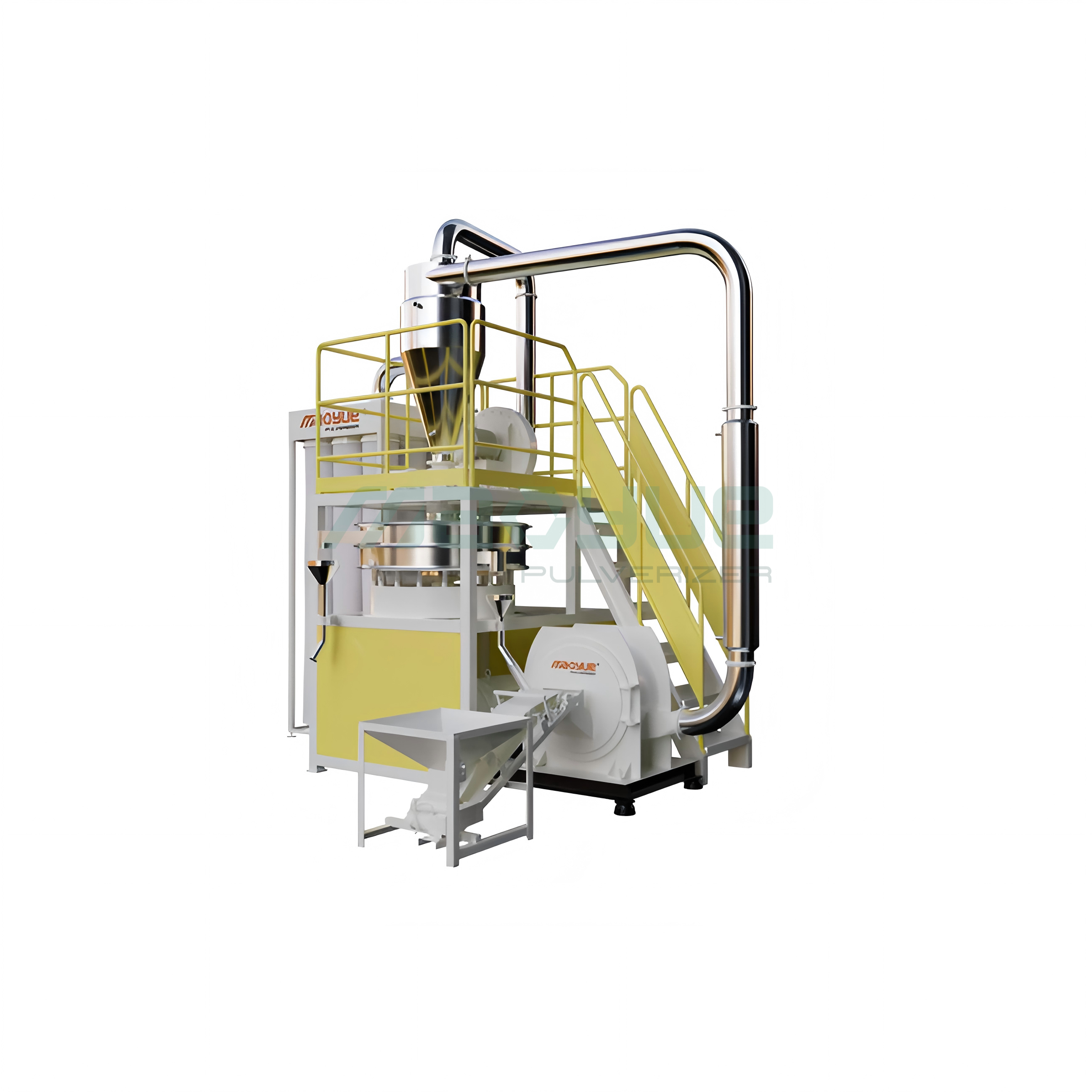

Plastic Pipe Grinding Machine
Plastic Pipe Grinding Machine
Plastic Pipe Grinding Machine
Plastic Pipe Grinding Machine
Plastic Pipe Grinding Machine
Plastic Pipe Grinding Machine
Maoyue PVC Plastic Grinding Machine was created for recycling purposes to ensure that products considered as waste can be used again and again. The most refined machines are used to accomplish the task. Grindable materials include advertising paper, plastic waste bottles, aluminum-plastic film and so on.
  • MF-850

  • Maoyue

  • 660mm

  • 90kw

  • 300-800 kg/h

  • 20-50 mesh

  • PVC pipes/profiles, Floor, wall panels

  • Water,Air

Inquire

What is a PVC Pipe Grinding Machine ?

The Maoyue PVC Plastic Mill was created for recycling to ensure that products considered waste can be used over and over again. The PVC Plastic Mill is a high speed precision grinder.
PVC material can be fed into the grinding chamber centrally by means of vibratory loading (iron removal is possible). The hard plastic is fed into the grinding chamber and ground between the rotor and stator knives. The finished material passes through a vibrating screen (optional layer) to obtain the finished product. The most sophisticated machines are used for this task. Grindable materials include advertising paper, waste plastic bottles, aluminum-plastic film, etc.

PVC Pipe Grinding Machine Composition

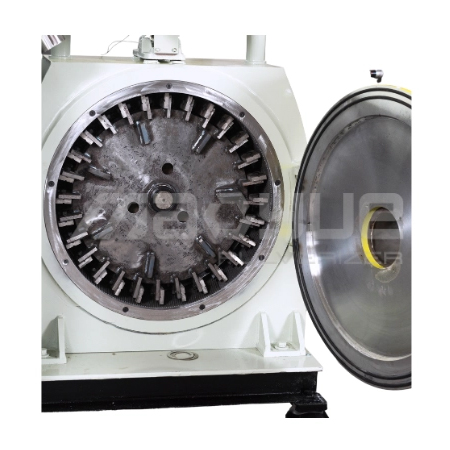

Grinding-room


Grinding room

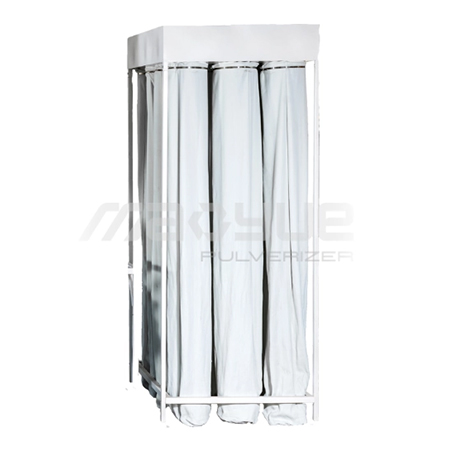

Bag-filter


Bag filter

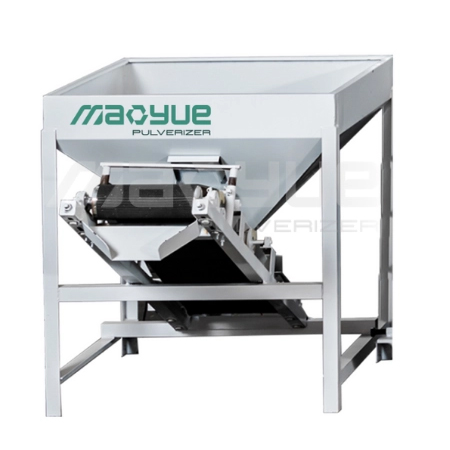

Metal-separation-loader


Metal separation loader

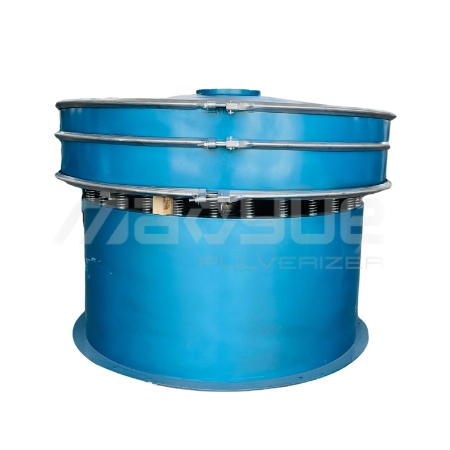

Vibrating-screen


Vibrating screen

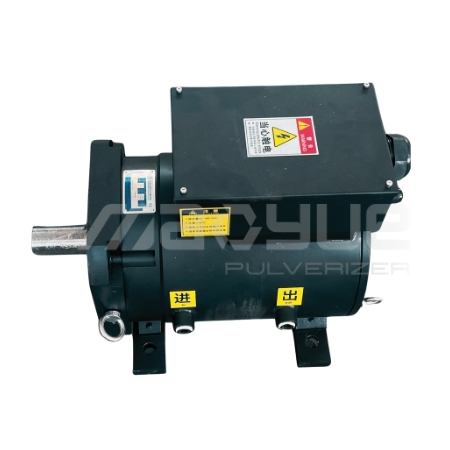

Main-motor

Main motor

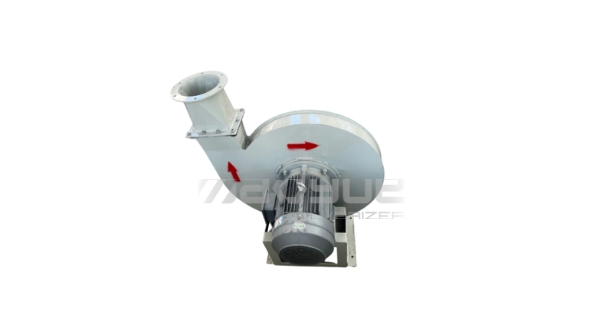

Fan

Fan

PVC Pipe Grinding Machine Composition

9

Rotor (Movable Knife)

Rotor structure is stable, the use of blade hardness is quite, not easy to damage, are self-research and self-production by the company, the production principle of simple that is, collision with the tooth plate (fixed knife). Replacement is simple, easy to clean.

pvc Toothed Plate (Fixed Blade)

Toothed Plate (Fixed Blade)

Toothed plate wear-resistant degree is very high, to ensure the stability of grinding, can be in the production of large while producing less heat. Complete set with movable knife, simple installation, easy to start.

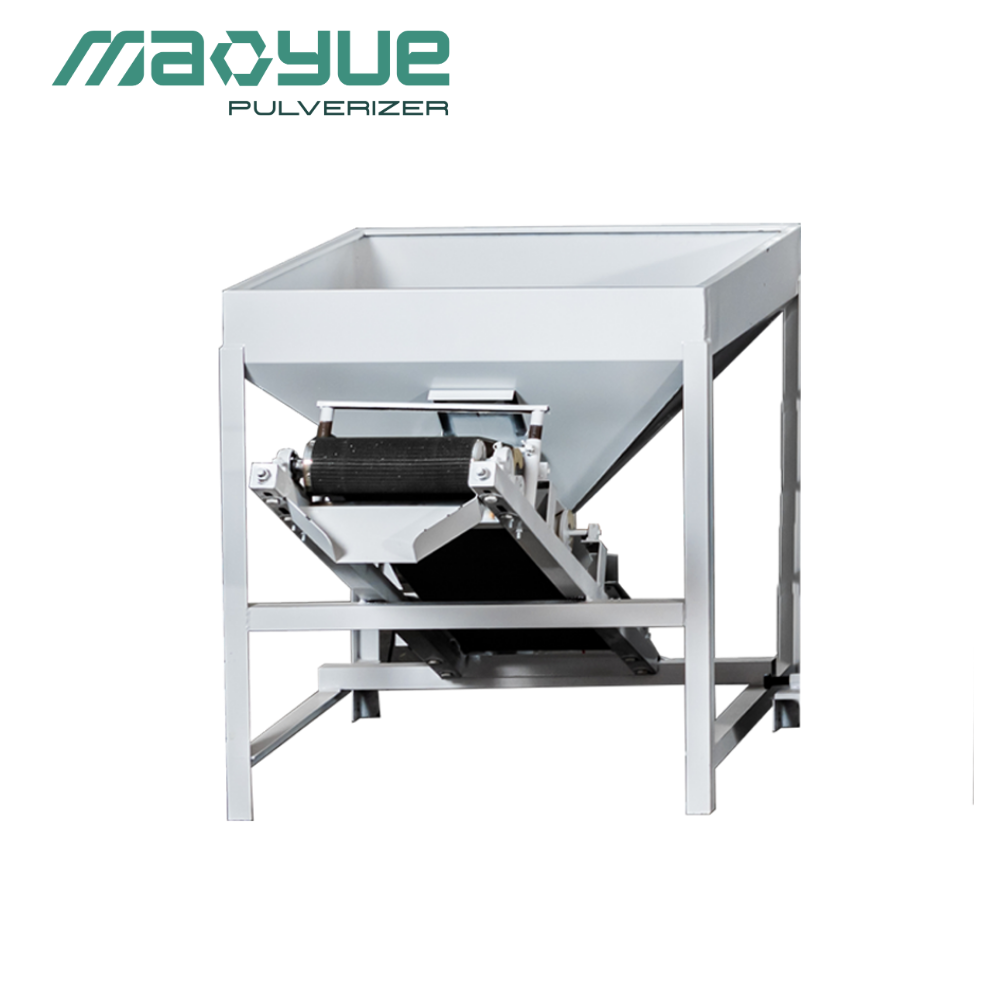

pvc machine Iron Removal and Feeding Machine

Iron Removal and Feeding Machine

Utilizing the vibration loading, but unlike others, our loading machine has the function of iron removal, so that the material entering the grinding chamber is very stable.

PVC Pipe Grinding Machine Features

Our machines don't require high maintenance costs and are one of the best designs when it comes to functionality and quality!

material (1)

Superior material

Grinding clearance is simple to adjust with a plug gauge and adjusting bolt



low-price (1)

Low cost

Our mills minimize your business costs with their speed and high capacity. By doing so, you can speed up processes and deliver superior performance for your products.

optimization

Stable system operates

The powder mill variety offers the advantages of rotor power and blade sharpening combined with the high quality of our brand. You can experience its hourly performance with confidence.

PVC Pipe Grinding Machine Configuration

ModelMF-850
Length*Width*Height (mm)3000*2680*3980
Disc Diameter (mm)660mm
Main Motor (kw) 90
Number of Movable Knives32
Fan Power (kw)11/15
Vibrating Screen Diameter(mm)   1500
 Cooling MethodWater Air
Capacity (kg/h)300-800
Weights (kg)2300
bg4

Talk to Our Engineer & Get the Right Machine Recommendation

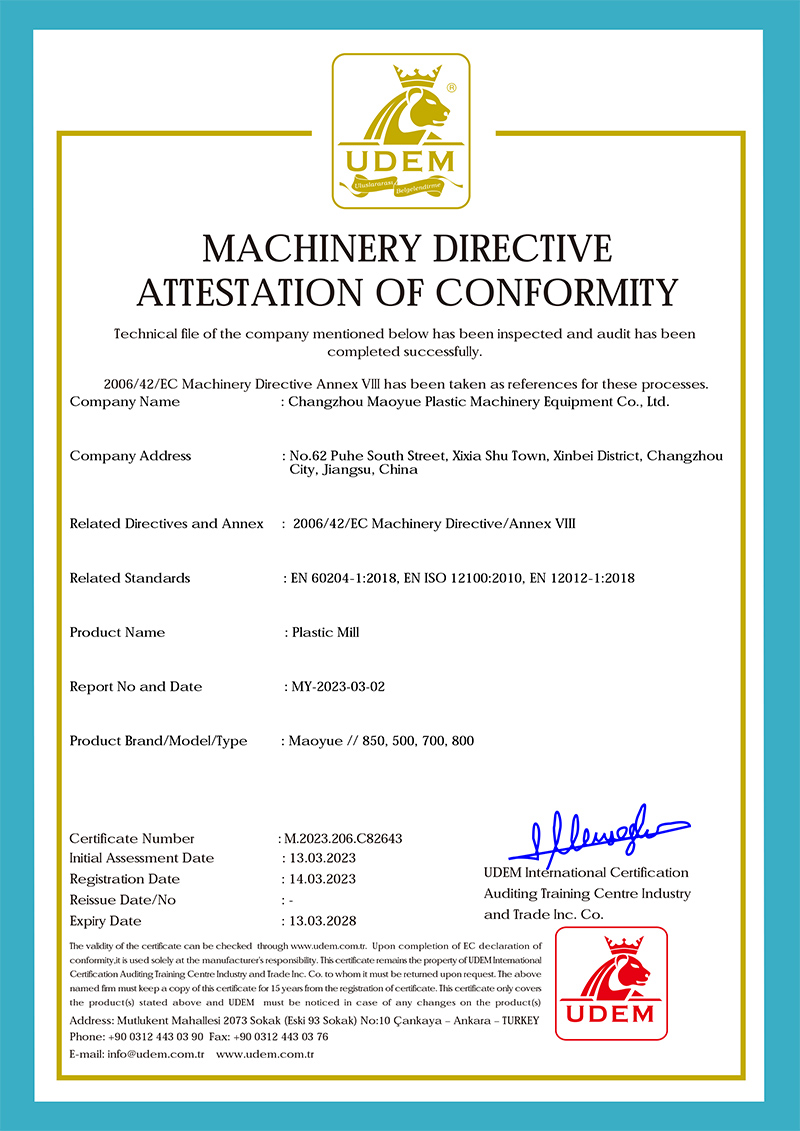

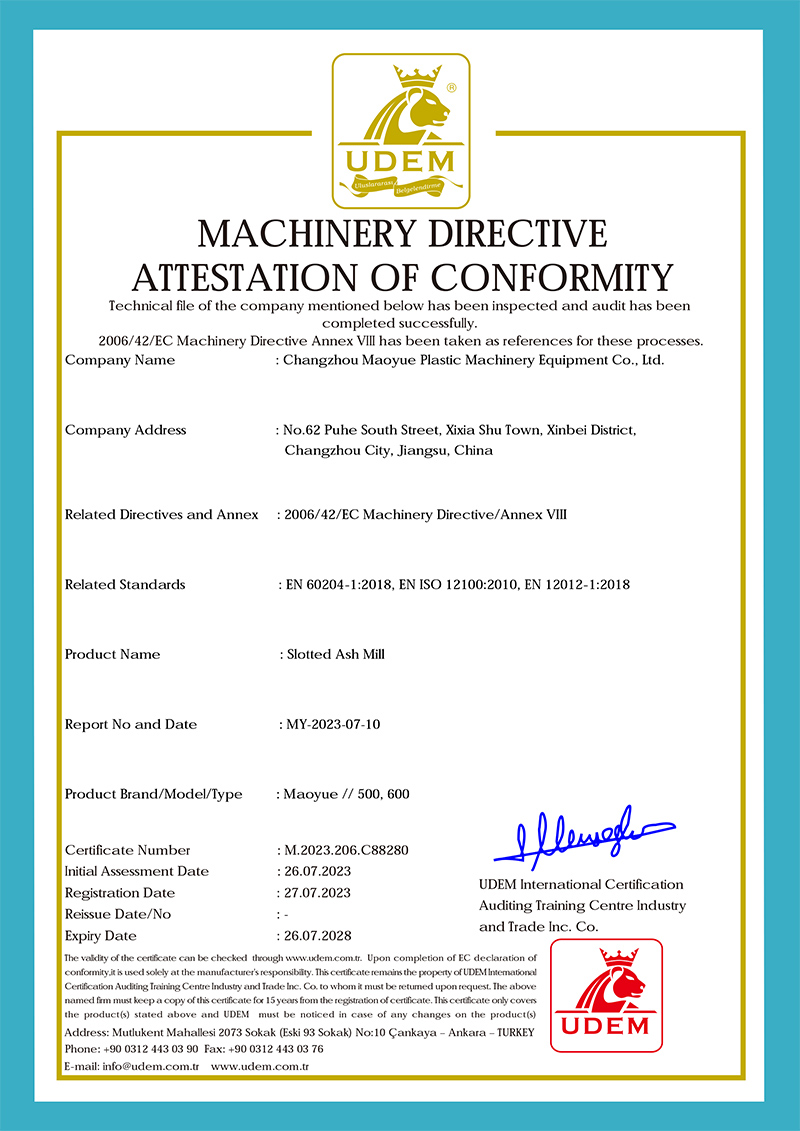

CE Certification
