With a stable disc-type grinding system and advanced dust collection design, this machine produces uniform plastic powder with low heat generation, low dust emission and reliable output, making it ideal for plastic recycling, compounding and powder processing applications.
-
800
-
Mao Yue
-
800mm
-
75-132kw
-
550-950kg/h
-
350-1000µm
-
Rotomolding,masterbatch,polymer and so on
-
Water,air
Key Features of Maoyue Plastic Pulverizer Machine
Our PE / PP plastic pulverizer machine is designed for efficient milling of thermoplastic materials into fine, uniform powder.
It is widely used in plastic recycling, compounding, and powder preparation processes where stable output, low heat generation, and clean operation are required.
Designed for HDPE, LDPE, LLDPE, PP and PVC Plastic Materials
This pulverizer is suitable for a wide range of rigid and semi-rigid plastics, including PE, PP, HDPE, LDPE, LLDPE, and PVC.
Different material characteristics can be handled through adjustable grinding parameters and optional cooling systems.
Uniform Powder Output with Adjustable Mesh Sizes (20–80 Mesh)

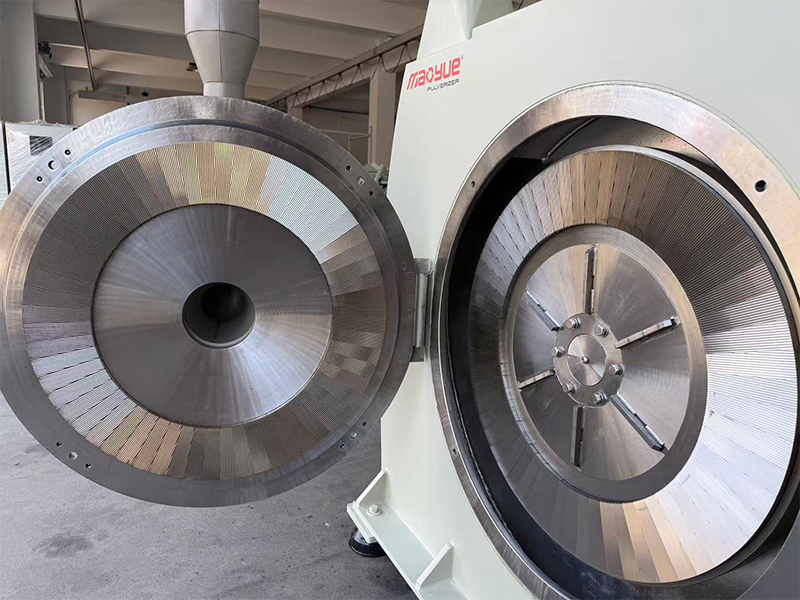

The optimized disc-type grinding system ensures consistent particle size distribution.
Powder fineness can be adjusted according to application requirements, typically ranging from 20 to 80 mesh.
Stable Output, Low Noise and Efficient Milling Performance
The machine operates with stable feeding and continuous discharge, maintaining reliable performance even during long-term industrial operation.
| Item | Description | Remarks |
| 1 | Type | 800 |
| 2 | diameter of disc | 800mm |
| 3 | Capacity | 400-600 kg/h |
| 4 | Mesh size | 10 to 50 Mesh |
| 5 | Drive motor | 75kw |

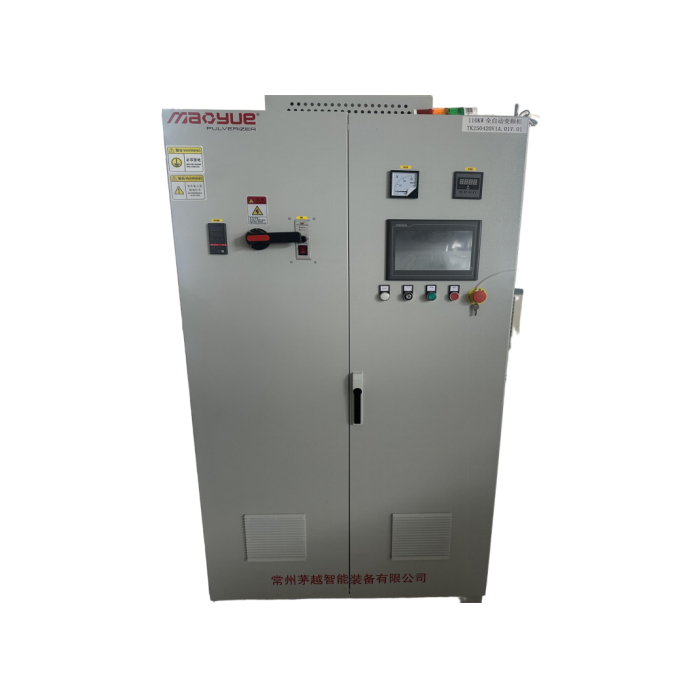

| 6 | Speed control | Inverter |
| 7 | Belt pulley standard | European standard（SKF） |
| 8 | Material of grinding blade | DC53 |
| 9 | Blower motor | 11kw |
| 10 | Pipe material | All stainless steel |
| 11 | Diameter size of pipe | 159 |
| 12 | Diameter of Swing vibrator | 1200mm |

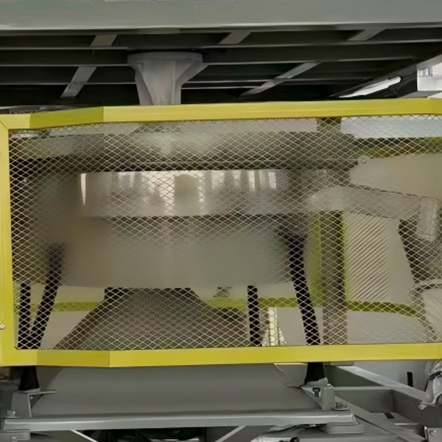

| 13 | Motor power of Vibrating screen | 1.1kw |

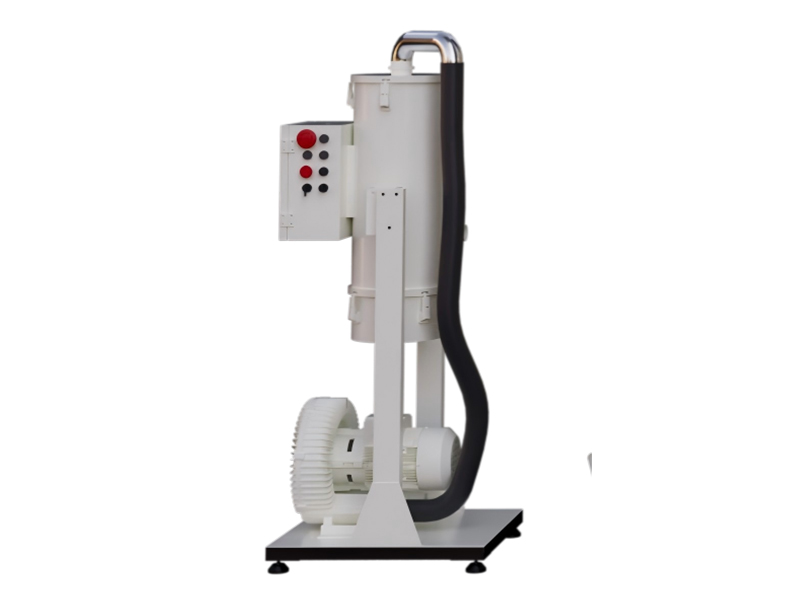

| 14 | Feeding method | Vacuum feeding |

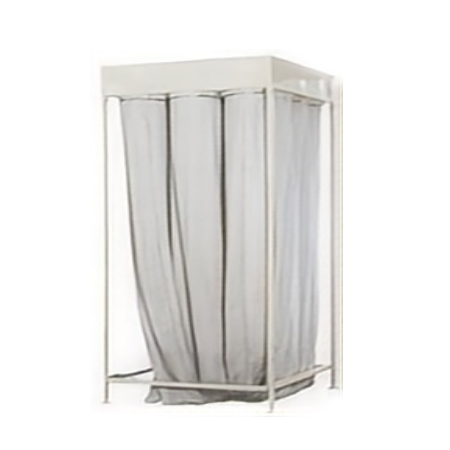

| 15 | Bag diameter size of dust collector | 300mm |
| 16 | Cooling method | Water cooling,one is enter,another is out |
| 17 | Air lock motor | 2.2kw |

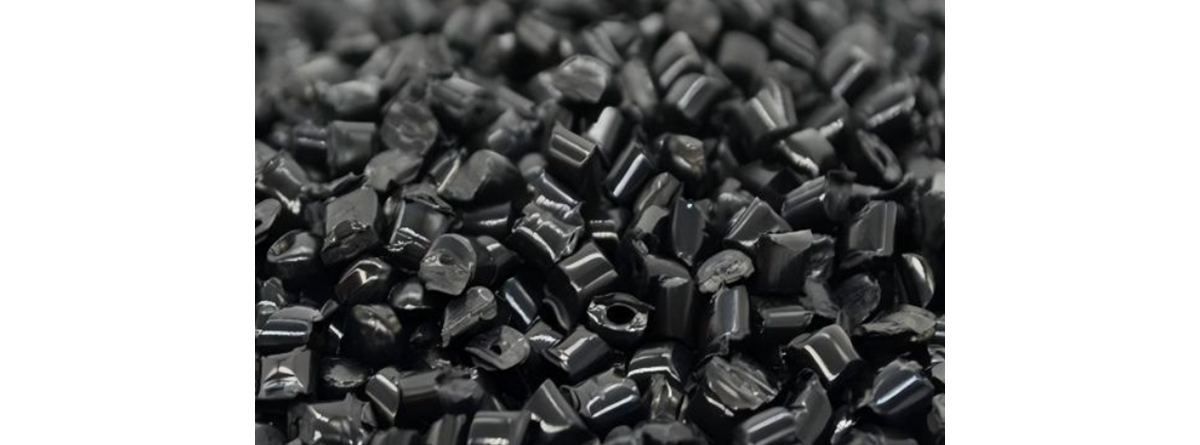

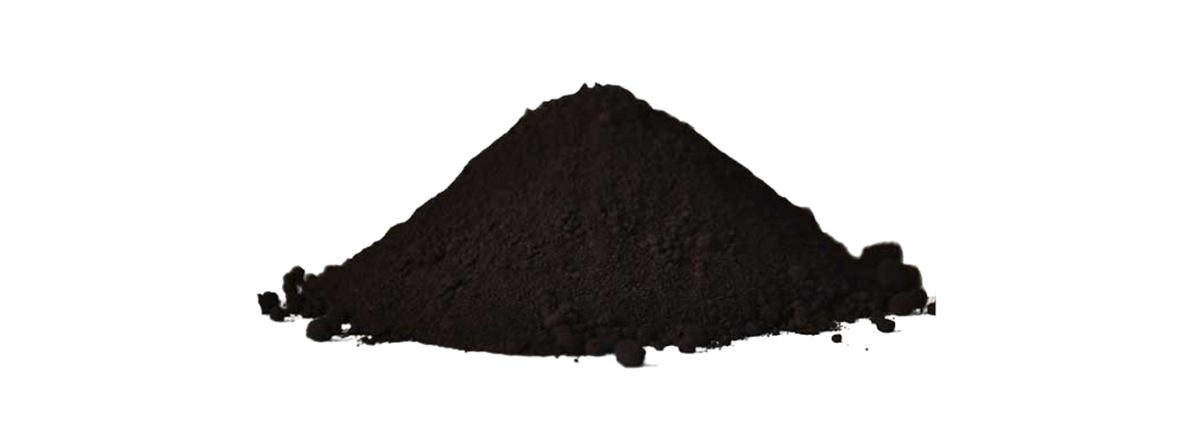

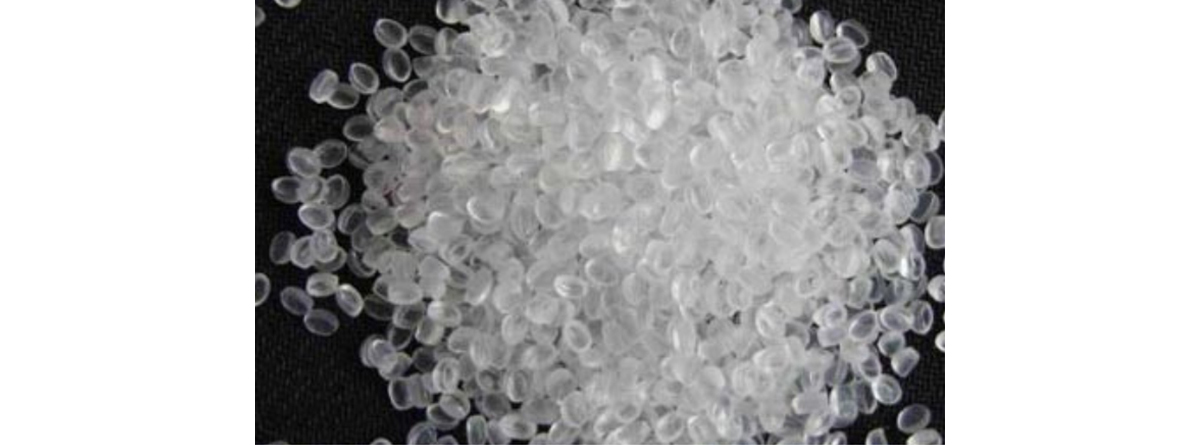

| Before→After | ||

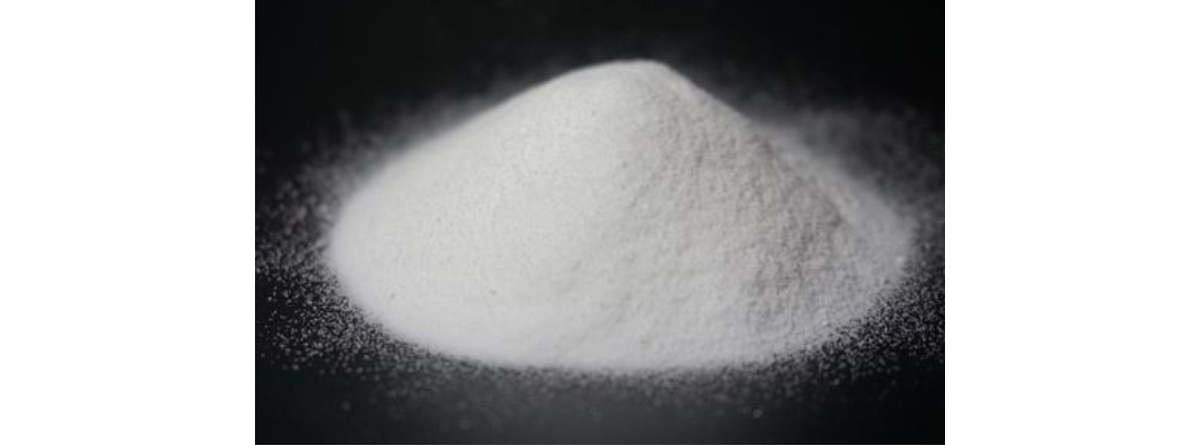

| LLDPE | ||
 |  | |
| PP | ||
 |  | |

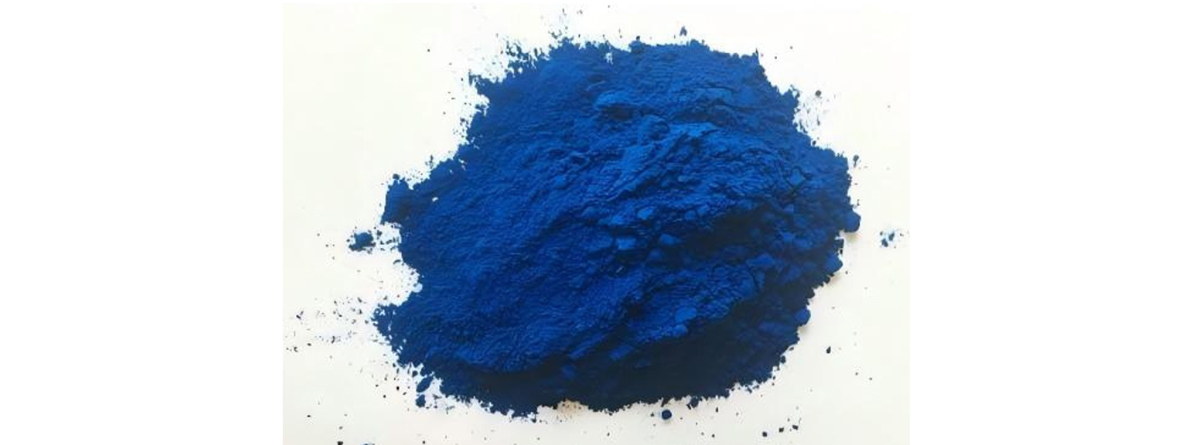

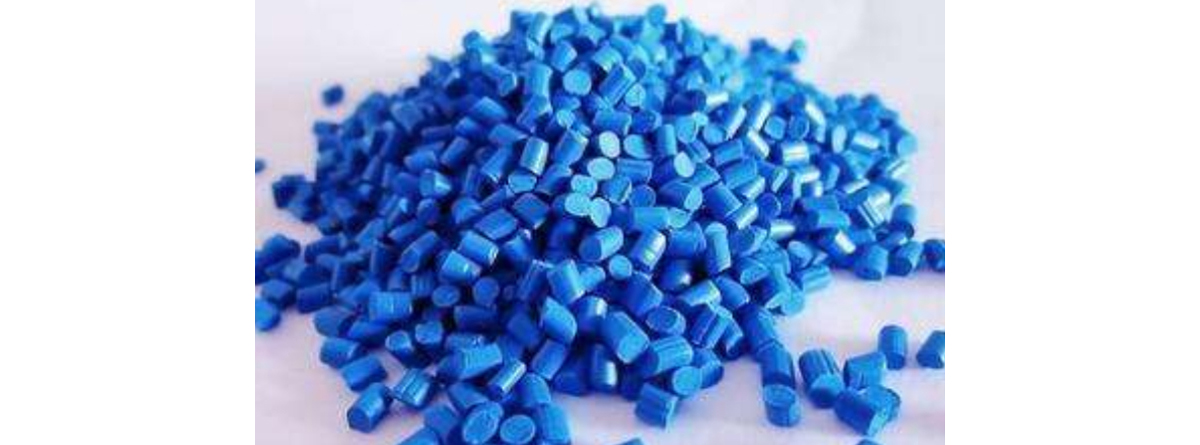

| Masterbatch | ||
 |  | |
High-Precision Vibrating Feeder System
The vibrating feeder provides uniform material feeding into the grinding chamber, preventing blockage and ensuring stable throughput.
Why Choose Our Pulverizer Machine Manufacturer
Long Service Life and Low Maintenance Cost
Wear-resistant components and optimized mechanical structure ensure long-term stable operation with reduced maintenance requirements.

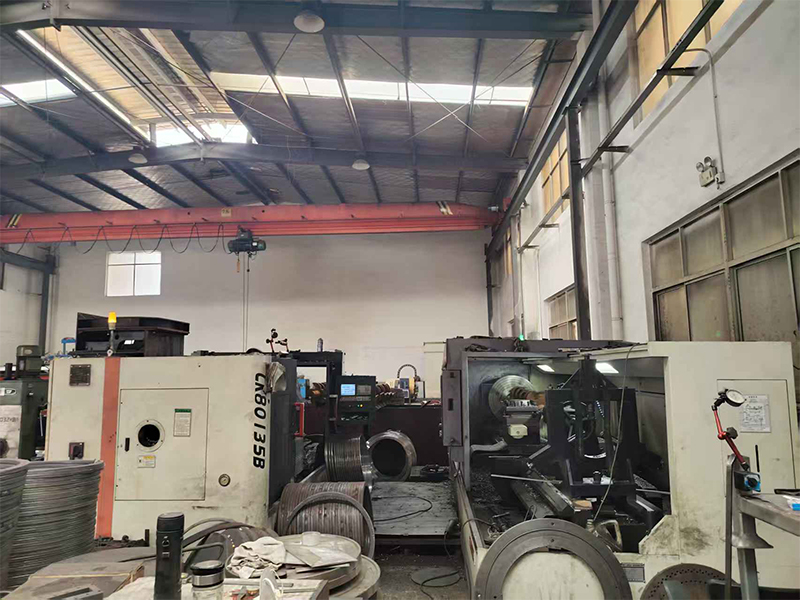

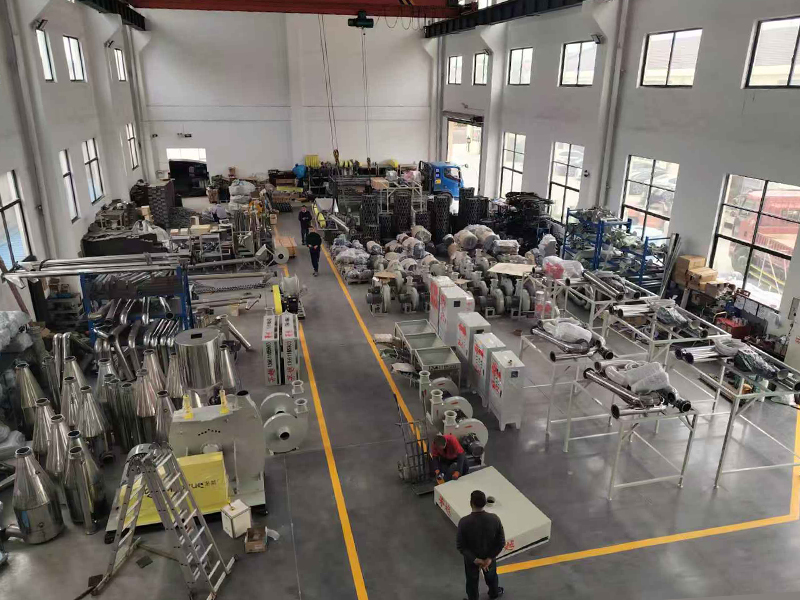

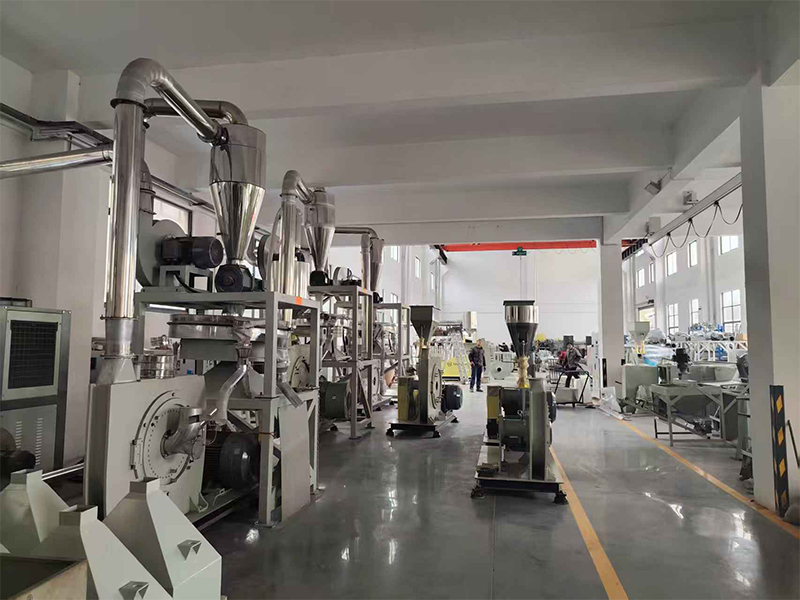

Factory Direct Supply — OEM & Custom Support
As a direct manufacturer, we provide OEM services and customized solutions tailored to specific applications.
Energy Saving and Stable Production
The optimized grinding system reduces energy consumption while maintaining high output and consistent powder quality.

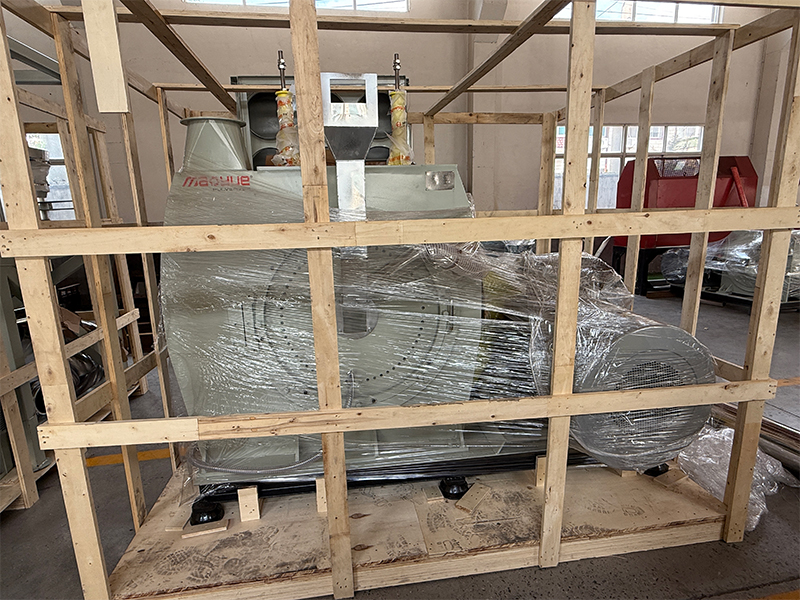

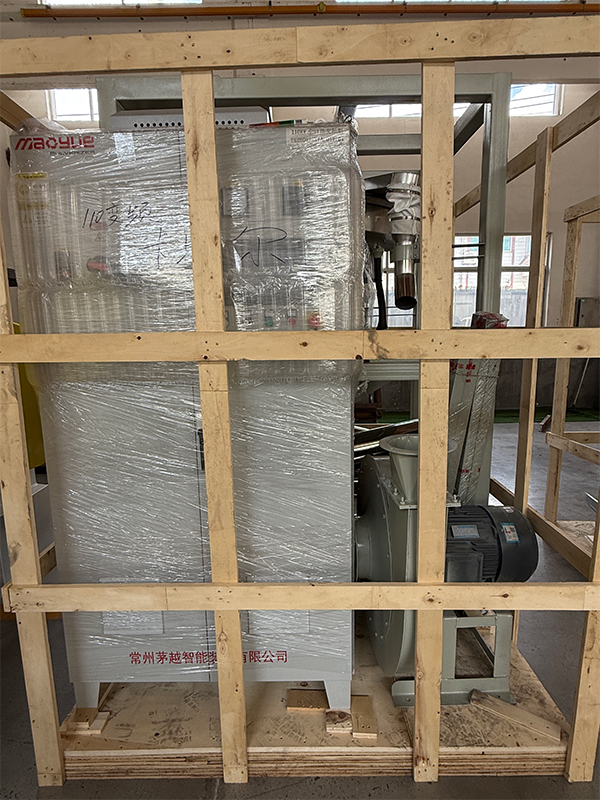

Global Shipping & After-Sales Support
Our machines are exported worldwide with professional technical support and responsive after-sales service.
North African-Egypt
We are forging deep partnerships with Egyptian for Roto and Masterbatch Company (ERMC) and PCC Plastic & Consultations Centre (PCC) to unlock the vast North African market and establish a strong foothold in Egypt's masterbatch and rotomoulding sectors.
Middle Eastern-Saudi Arabia

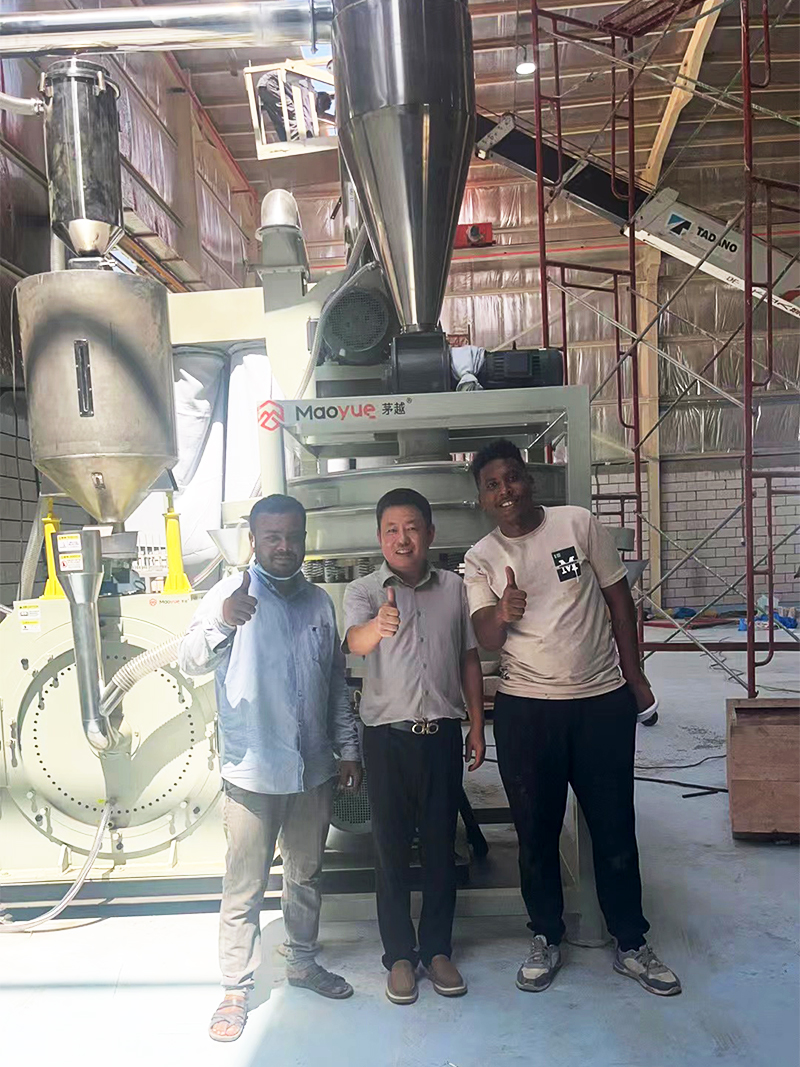

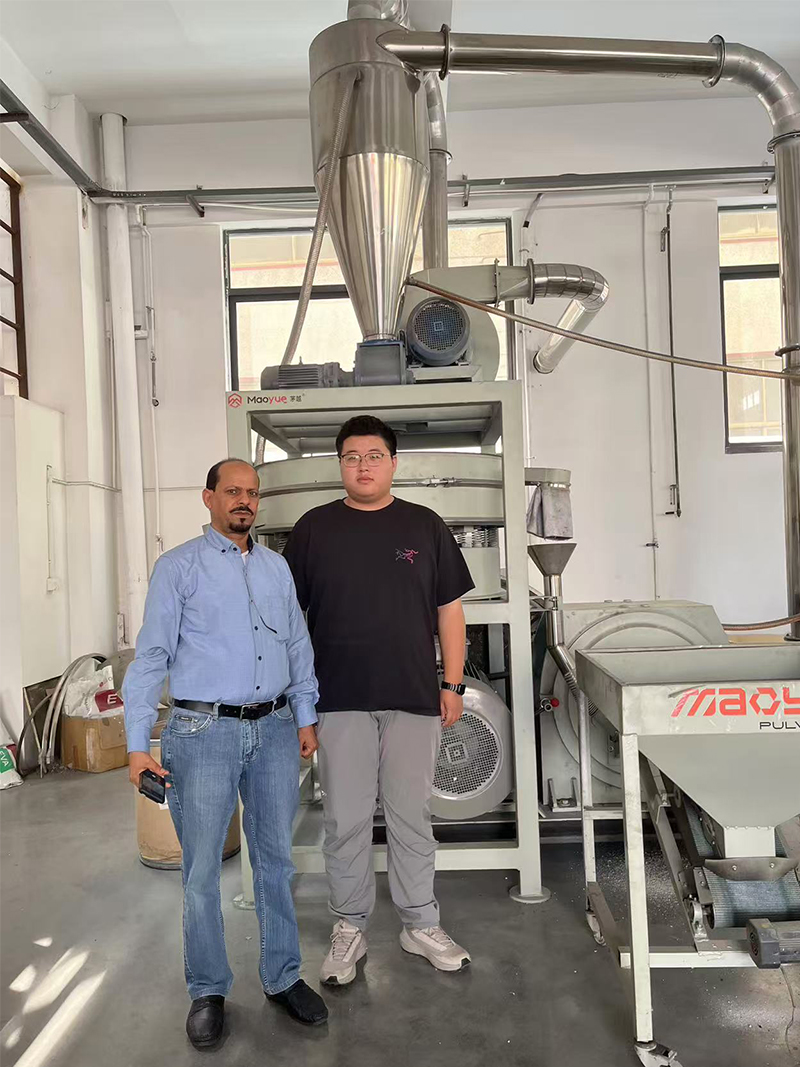

As a supplier to the rotomoulding industry, we have supported the Middle Eastern market and gained their recognition. We commemorated our partnership with clients in Saudi Arabia through photographs, and upon receiving machinery at their Qatar facility, they promptly provided positive feedback videos for our promotional use. Furthermore, they have repeatedly recommended us to other local clients.
