MYMF-500
maoyue
Water, Air
20-120 mesh
2900*2900*3900 mm
4000kg
PP, PE, PET, EVA, SPC, PVC
100-1500kg/h
500mm
45kw, 55kw, 75kw, 90kw

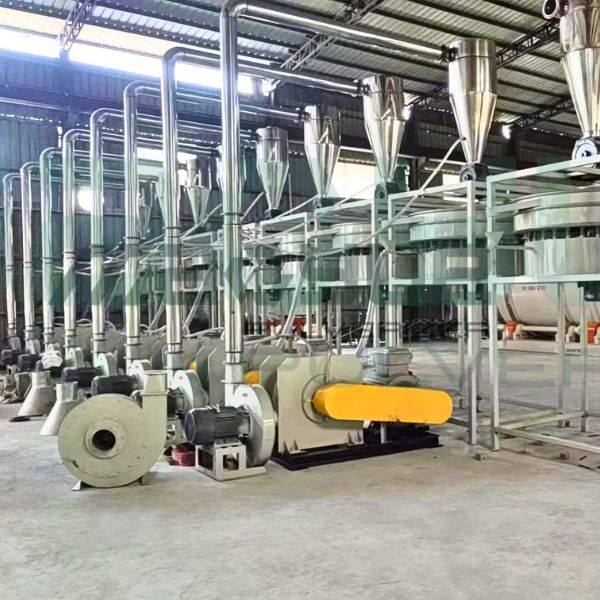

Maoyue Machinery Plastic Crushing and Grinding Production Line is a complete set of crushing and grinding processing equipment designed by our company according to the customer's product design, which is composed of crusher, screw conveyor loader, storage silo, U-shape pushing material, frequency conversion conveyor feeding and complete set of grinding machine system. Mainly for plastic sheet, plate and other sheet material and pvc pipe design, according to the customer site, output requirements, design model this product is simple and safe operation.
Plastic crushing powder production line is mainly used to recycle and reuse waste plastics. By crushing and grinding waste plastics, it can be transformed into reprocessable products.
The application scenarios of the crushing and grinding production line include plastic recycling (especially in the plastic recycling industry, the plastic powder after crushing and grinding can be re-processed), plastic additives (the plastic powder after powdering can be used as some specific additives for the plastic synthesis process, which helps to improve the performance of the plastic, such as increasing the strength, abrasion and temperature resistance, and aging resistance, etc.), and the environmental protection industry.
1. The new tool is professionally designed and uses high-density wear-resistant steel casting technology, which has strong wear resistance.
2. New professional bearing seat assembly with high speed.
3. Easy installation and maintenance, just open the door to clean.
4. The entire grinding process is fully sealed and there is no dust leakage.
5. The machine parts are scattered, which is convenient for later maintenance.
6. The crusher adopts a water and air dual cooling system to prevent the main engine bearing and materials from overheating.
7. SKF bearings, Siemens motors and other well-known brand accessories can be selected.
8. Special plastic crushers can be made according to customer budgets and material processing requirements.
| Model | MYMF-500 | MYMF-600 | MYMF-800 |
| Length*Width*Height (mm) | 2900x2900x3900 | 3000x3000x4000 | 3200x3100x4000 |
| Disc Diameter(mm) | 500 | 600 | 800 |
| Main Motor(kw) | 45-55 | 55-75 | 75-90 |
| Vibration Motor Power (kw) | 1.1 | 1.5 | 1.5 |
| Fan Power(kw) | 5.5 | 7.5 | 11 |
| Discharge Motor(kw） | 0.75 | 1.5 | 2.2 |
| Cooling Method | Water 、Air | ||
| Capacity(kg/h) | 300-600 | 400-800 | 800-1600 |
Plastic grinding machine industry, as a part of the plastic reprocessing field, has shown great development potential and prospects in recent years with the global environmental awareness, the progress of resource recycling technology and the diversification of industrial demand. Plastic grinding machine is mainly used to crush waste plastic, plastic granules or other plastic materials into fine powder, these powders can be reprocessed as raw materials, which are widely used in many fields such as plastic recycling, production and modification.
And under such a trend, Maoyue Group responds positively and expands rapidly, and so far it has more than ten workshops to produce and manufacture PE, PVC grinding machines and their accessories. Since the foundation of our company, all the key components are produced and processed by ourselves, and we are adhering to the best service to our customers!
Maoyue Machinery Plastic Crushing and Grinding Production Line is a complete set of crushing and grinding processing equipment designed by our company according to the customer's product design, which is composed of crusher, screw conveyor loader, storage silo, U-shape pushing material, frequency conversion conveyor feeding and complete set of grinding machine system. Mainly for plastic sheet, plate and other sheet material and pvc pipe design, according to the customer site, output requirements, design model this product is simple and safe operation.
Plastic crushing powder production line is mainly used to recycle and reuse waste plastics. By crushing and grinding waste plastics, it can be transformed into reprocessable products.
The application scenarios of the crushing and grinding production line include plastic recycling (especially in the plastic recycling industry, the plastic powder after crushing and grinding can be re-processed), plastic additives (the plastic powder after powdering can be used as some specific additives for the plastic synthesis process, which helps to improve the performance of the plastic, such as increasing the strength, abrasion and temperature resistance, and aging resistance, etc.), and the environmental protection industry.
1. The new tool is professionally designed and uses high-density wear-resistant steel casting technology, which has strong wear resistance.
2. New professional bearing seat assembly with high speed.
3. Easy installation and maintenance, just open the door to clean.
4. The entire grinding process is fully sealed and there is no dust leakage.
5. The machine parts are scattered, which is convenient for later maintenance.
6. The crusher adopts a water and air dual cooling system to prevent the main engine bearing and materials from overheating.
7. SKF bearings, Siemens motors and other well-known brand accessories can be selected.
8. Special plastic crushers can be made according to customer budgets and material processing requirements.
| Model | MYMF-500 | MYMF-600 | MYMF-800 |
| Length*Width*Height (mm) | 2900x2900x3900 | 3000x3000x4000 | 3200x3100x4000 |
| Disc Diameter(mm) | 500 | 600 | 800 |
| Main Motor(kw) | 45-55 | 55-75 | 75-90 |
| Vibration Motor Power (kw) | 1.1 | 1.5 | 1.5 |
| Fan Power(kw) | 5.5 | 7.5 | 11 |
| Discharge Motor(kw） | 0.75 | 1.5 | 2.2 |
| Cooling Method | Water 、Air | ||
| Capacity(kg/h) | 300-600 | 400-800 | 800-1600 |
Plastic grinding machine industry, as a part of the plastic reprocessing field, has shown great development potential and prospects in recent years with the global environmental awareness, the progress of resource recycling technology and the diversification of industrial demand. Plastic grinding machine is mainly used to crush waste plastic, plastic granules or other plastic materials into fine powder, these powders can be reprocessed as raw materials, which are widely used in many fields such as plastic recycling, production and modification.
And under such a trend, Maoyue Group responds positively and expands rapidly, and so far it has more than ten workshops to produce and manufacture PE, PVC grinding machines and their accessories. Since the foundation of our company, all the key components are produced and processed by ourselves, and we are adhering to the best service to our customers!
