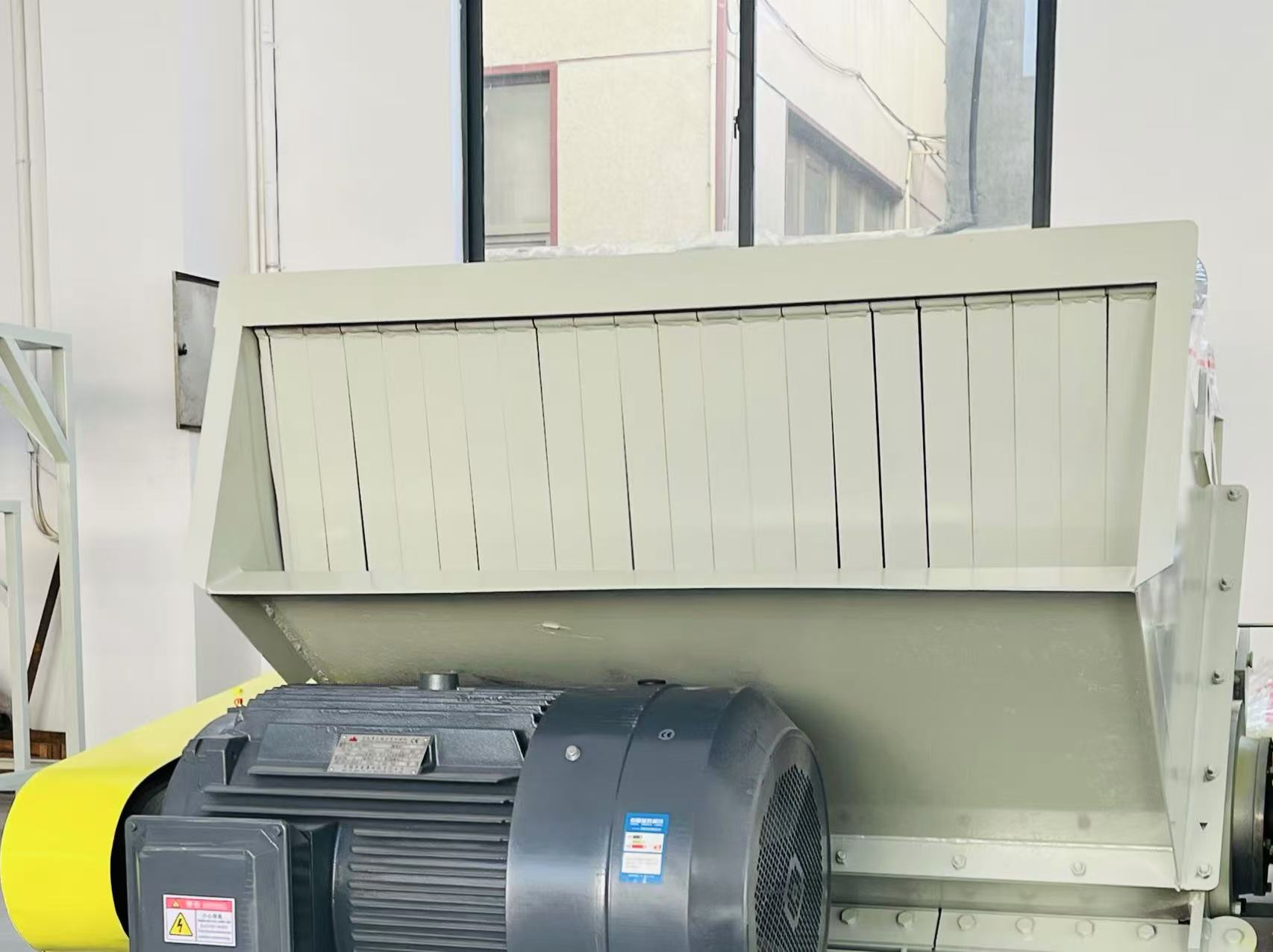

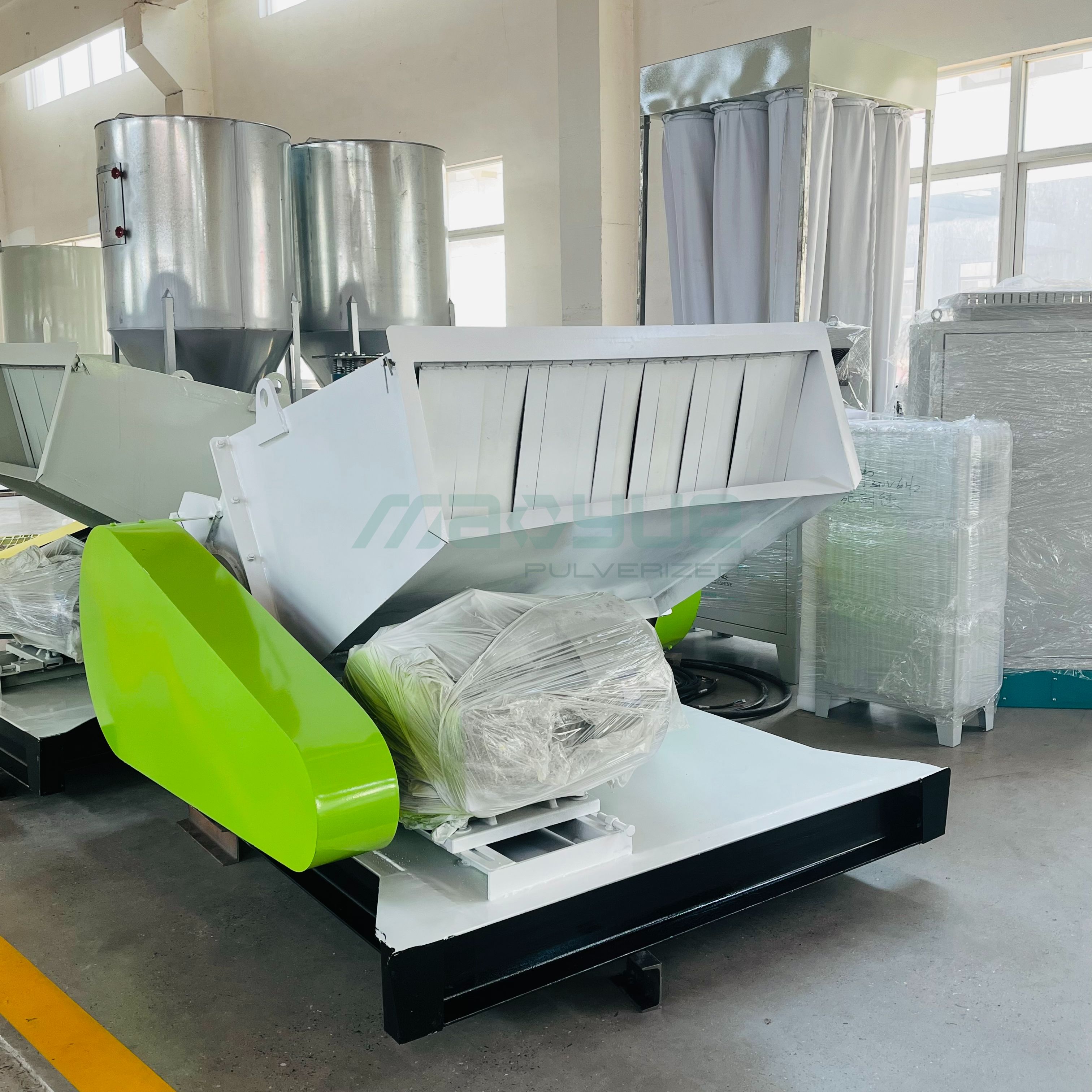

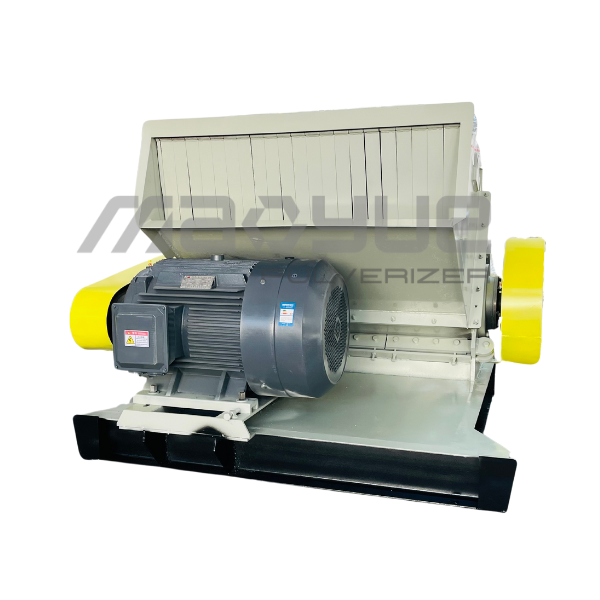

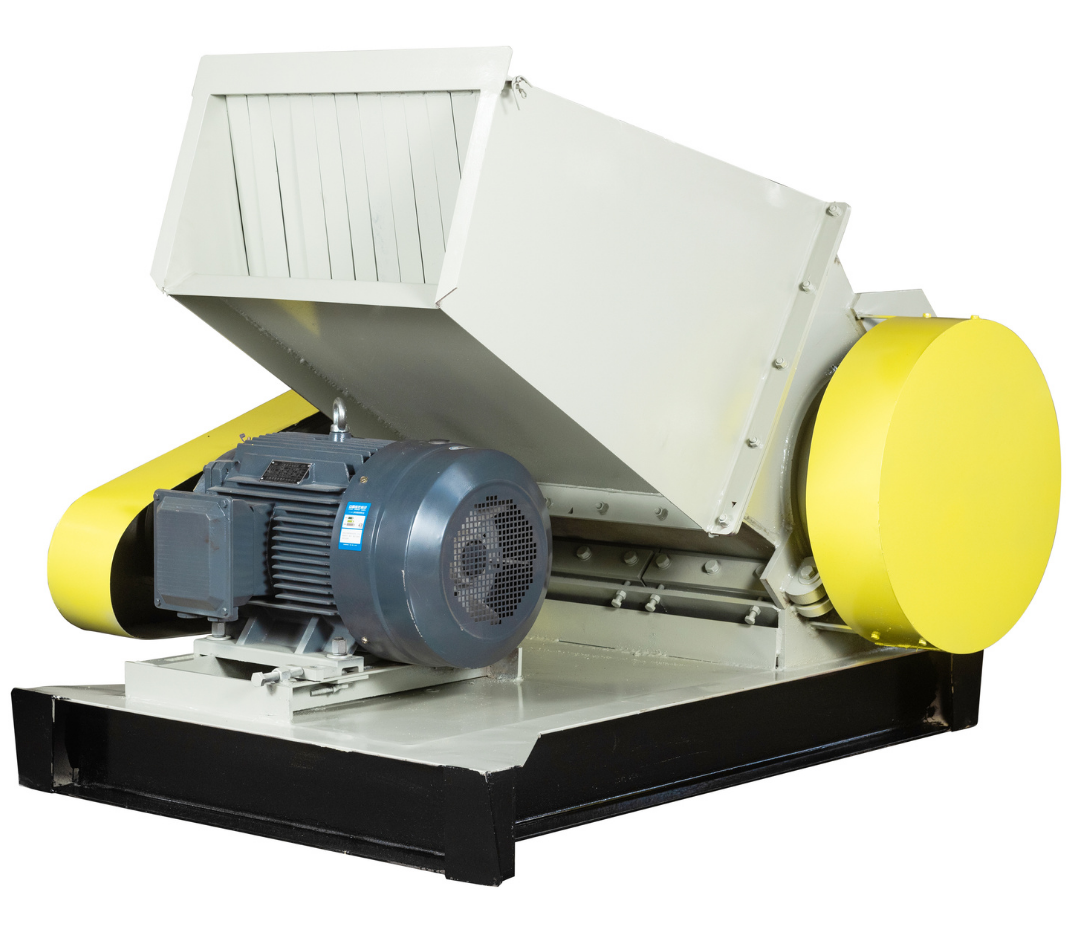

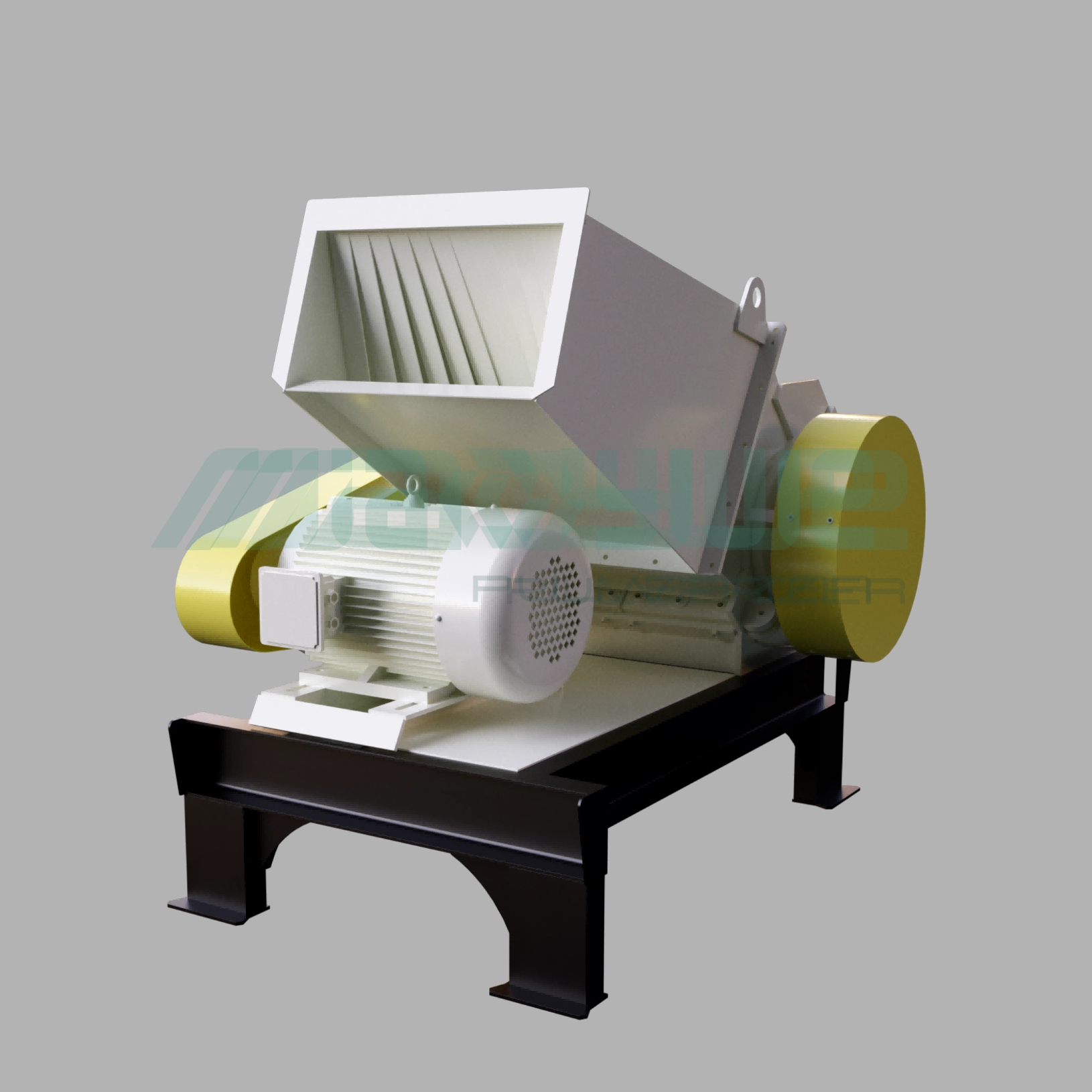

PC-600
-
Maoyue
-
22kw
-
800 kg/h
-
Small pieces of plastic
-
PVC pipes/profiles, Floor, wall panels

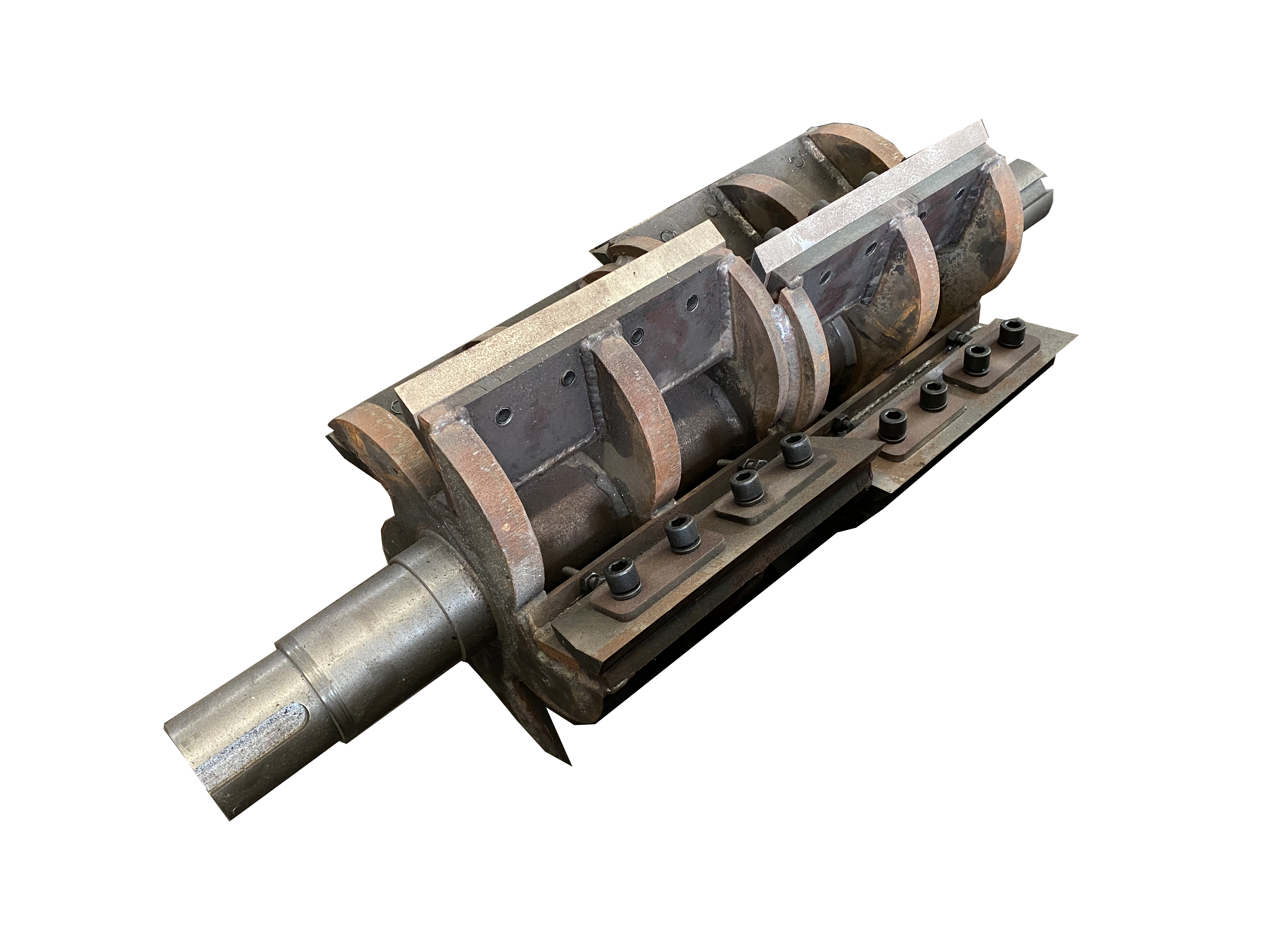

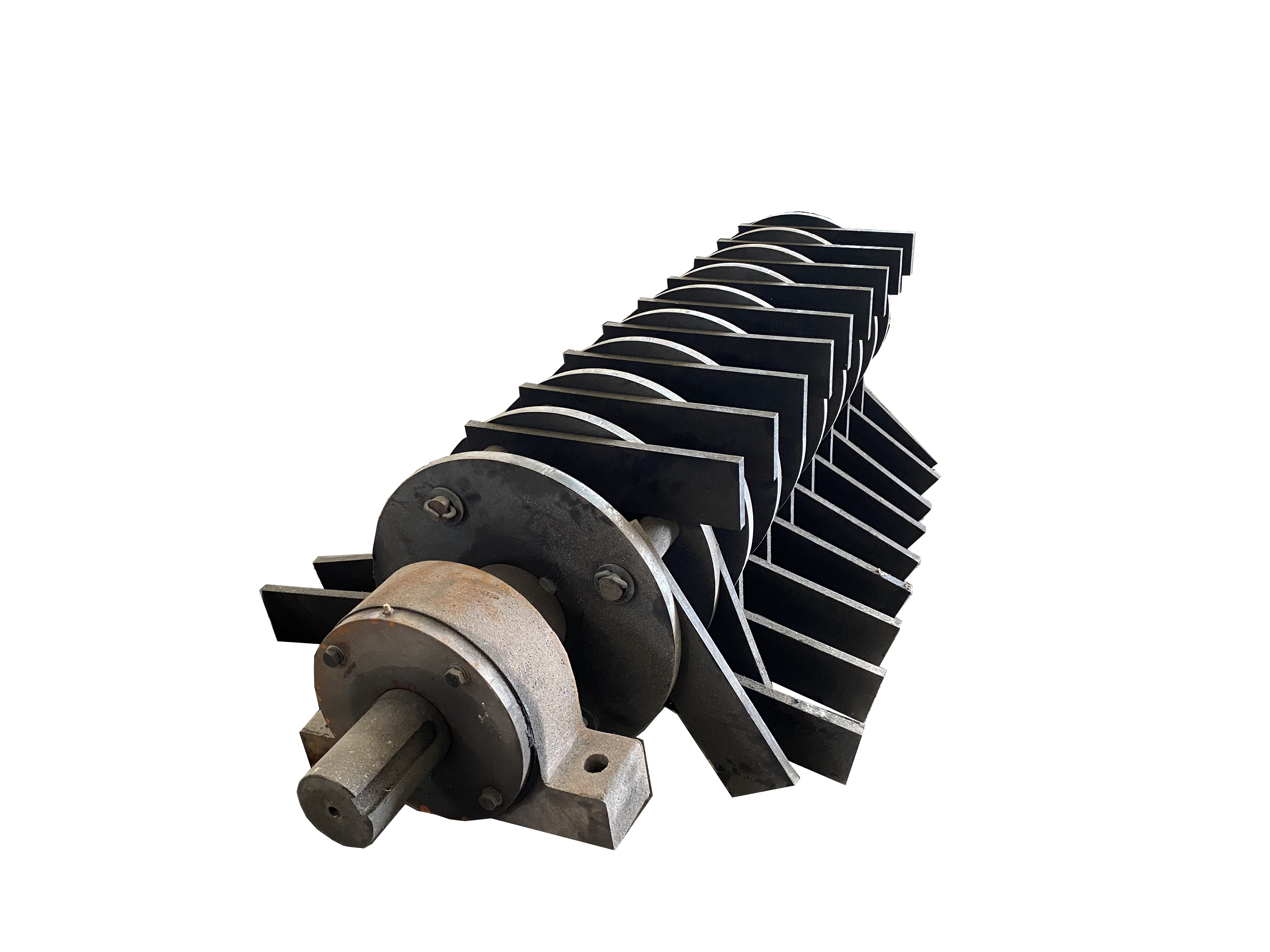

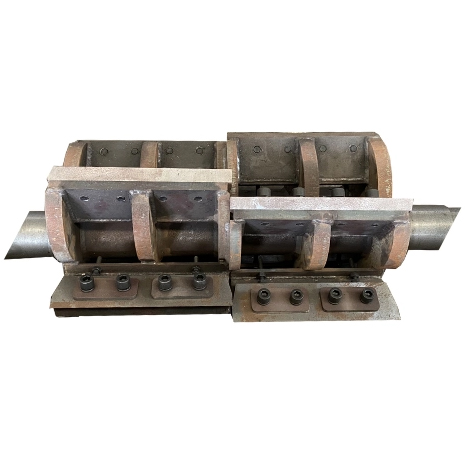

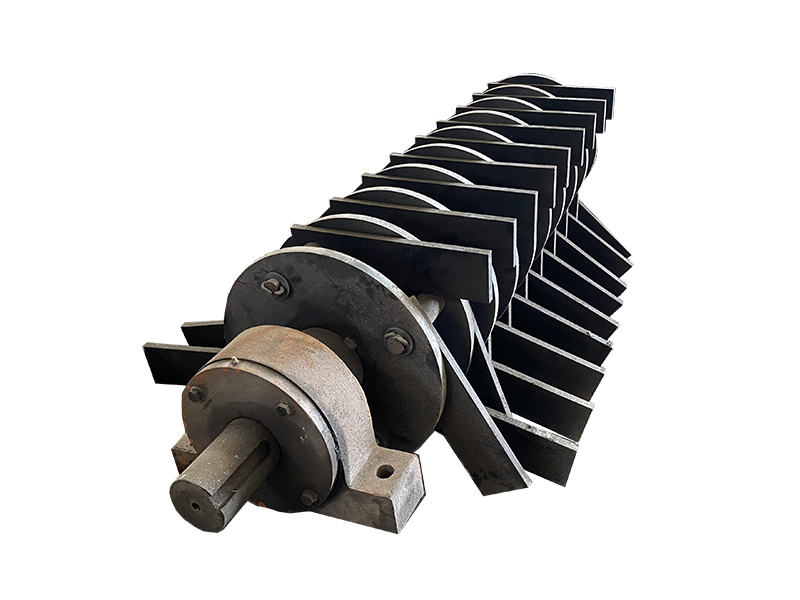

Rotors
Heavy duty bladed rotor with adjustable rotor for stable and fast rotation speeds, also can be speed regulated. Simple assembly and high durability, extremely easy to disassemble and install even if the blades show wear.

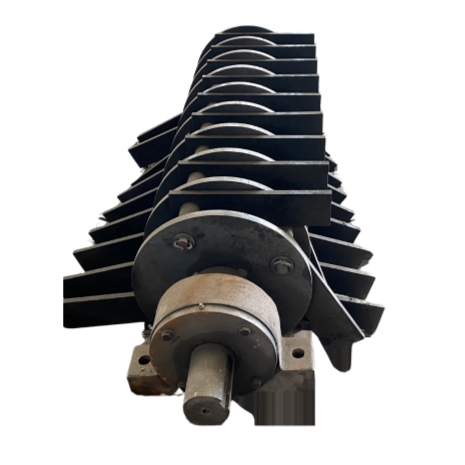

Blades
Blades are mold steel 9CrSi, according to the different requirements of customers, can be customized imported props, improve the service life of the blade.

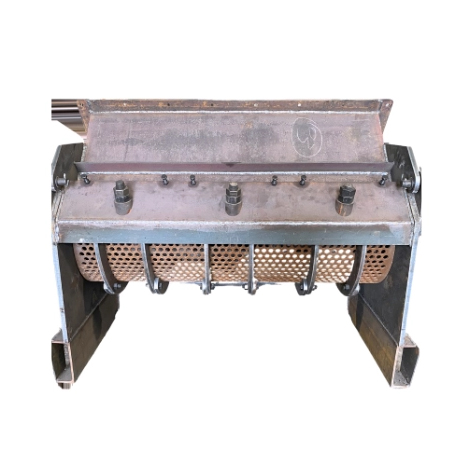

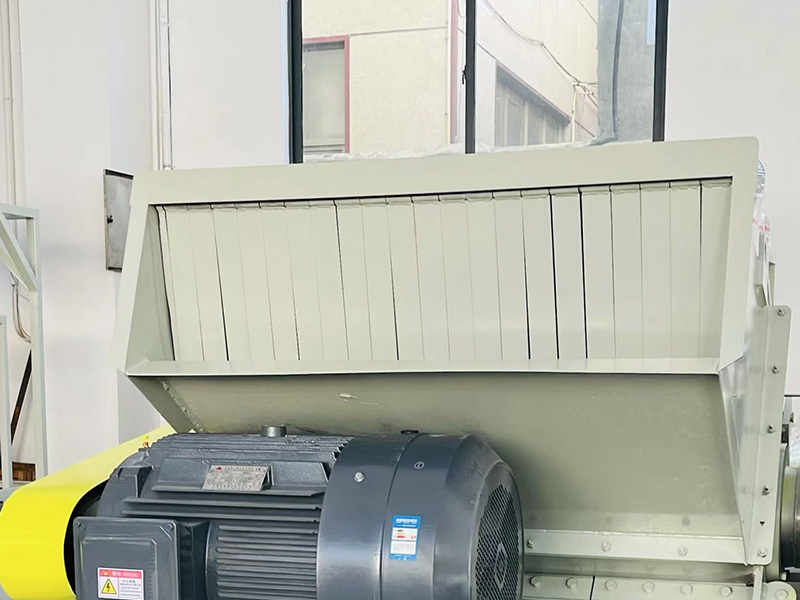

Crushing Chamber
The crushing chamber is fully closed, no loss of crushed material, dust splash and other risks. Overall high hardness, welded from steel plate, with wear-resistant, corrosion-resistant effect, effectively extend the life cycle of the machine. The unique shape of the crushing chamber is characterized by low noise.

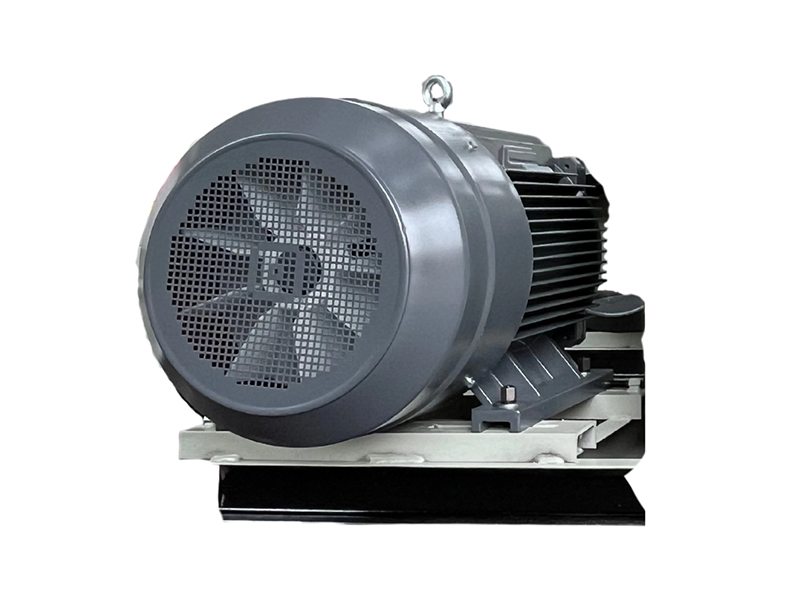

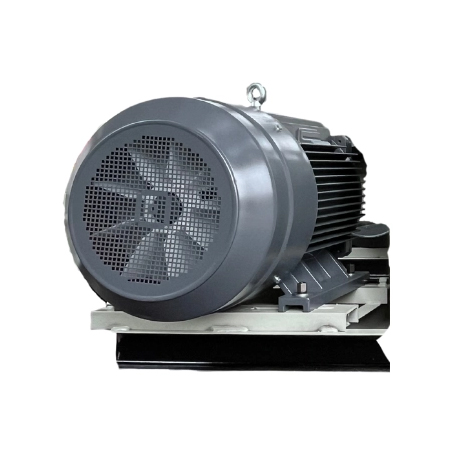

Motor
Each machine is equipped with a specific motor, which can be changed to different
power according to different output. It is not hot for a long time, and even in this year,
the introduction of permanent magnet motor, the output is higher, and more can save electricity.

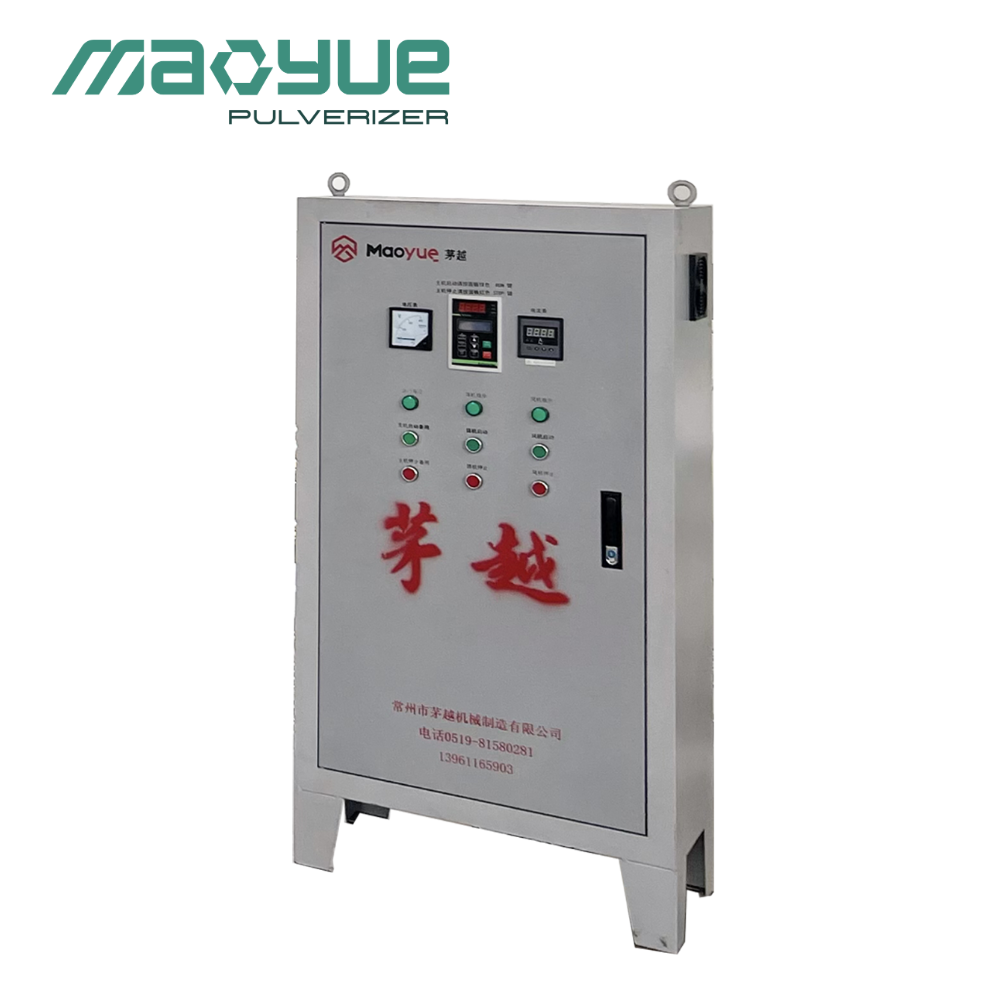

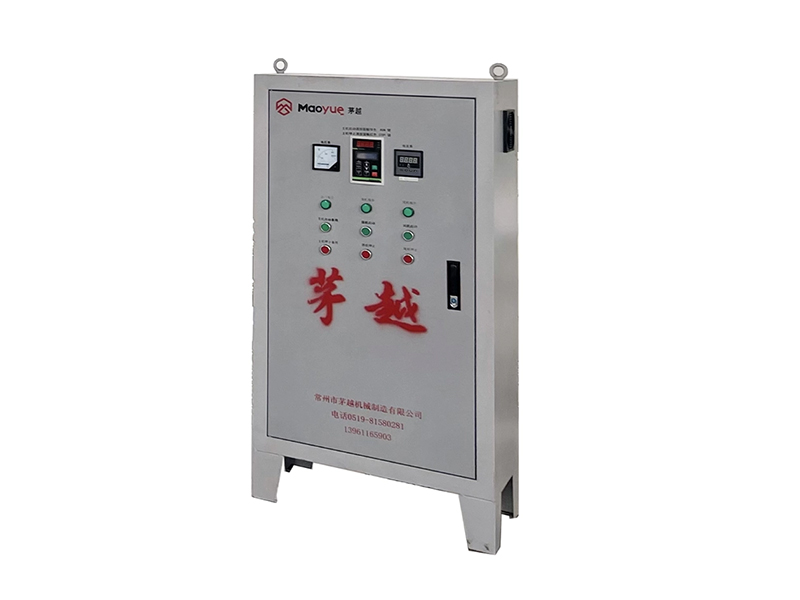

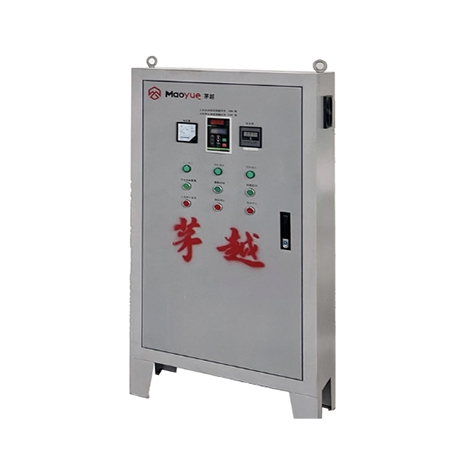

Electrical Cabinet
Adopting Siemens, ABB and other well-known brands of electrical cabinets, according to the specific needs of changing the starting mode, such as soft start, frequency conversion or star-delta.

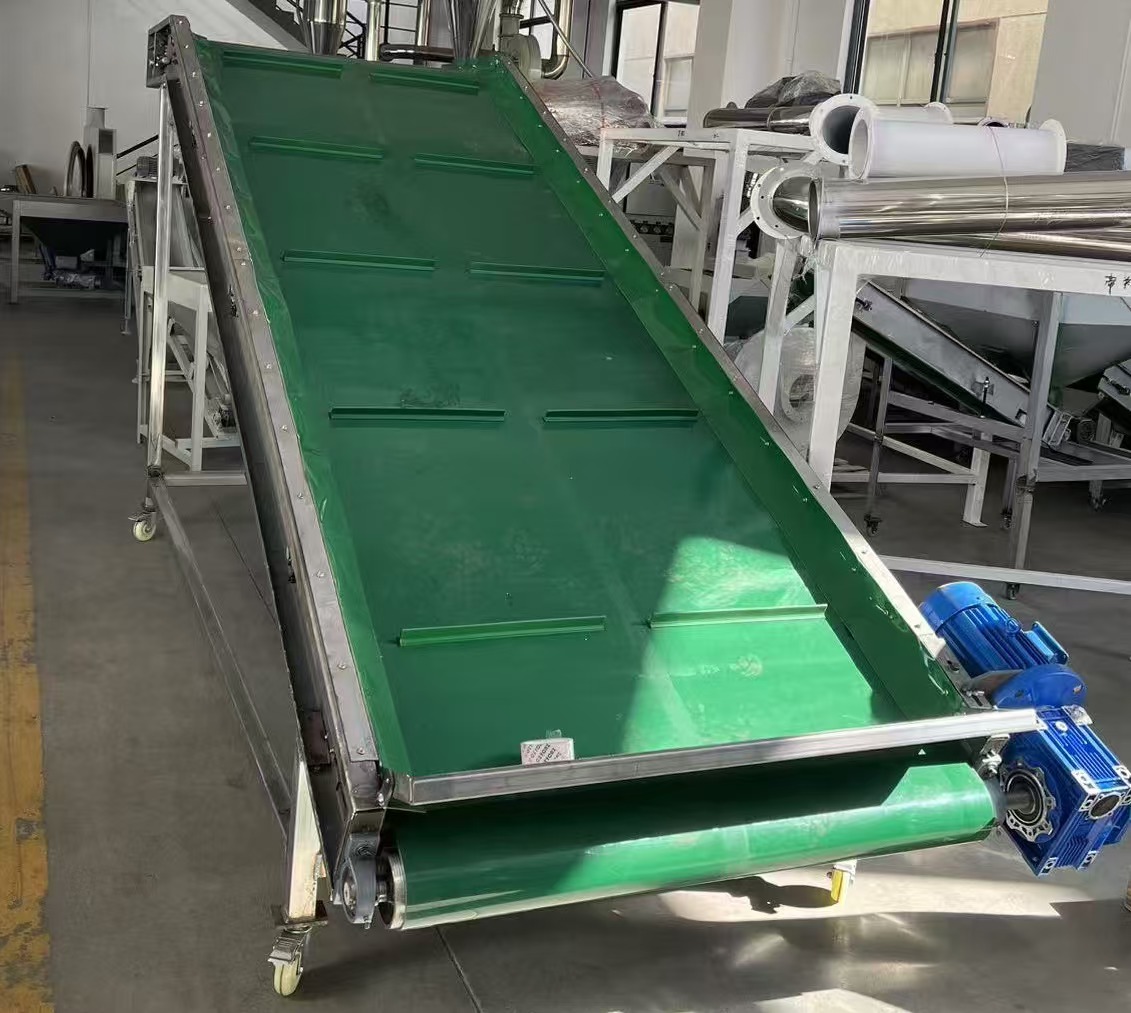

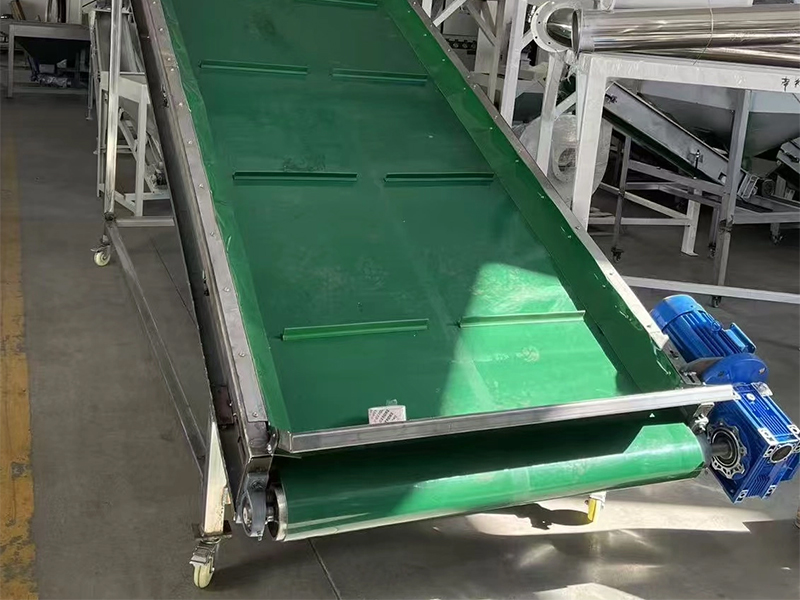

Feeding Conveyor
The company's exclusive design of the feeder, waste plastic through the conveyor belt into the grinding chamber. The power is provided by ABB frequency conversion, the conveying speed can be adjusted according to the demand and fully automatic, stable and efficient conveying, there is no problem of material import accumulation. And the feeder has the function of removing iron, detecting metal and stopping the work to ensure the safety of operation.
| Model | PC-600 |
| Length*Width*Height (mm) | 1300*1770*1350 |

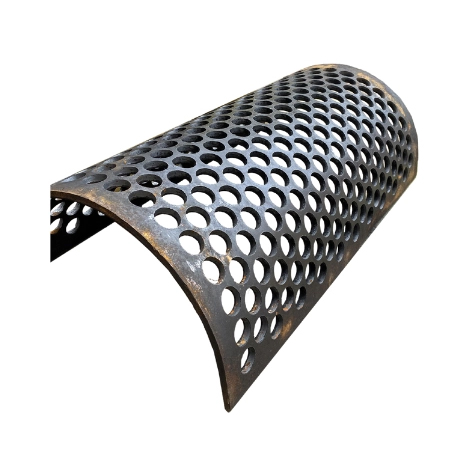

| Orifice of The Sieve Mesh (mm) | 16（Selectable） |
| Main Motor (kw) | 22 |
| Number of Cutters | 10 Movable Knives And 4 Fixed Knives |
| Rotor speed of movable knife (r/min) | 550 |
| Inlet Diameter（mm） | 650*300 |
| Tool Material | 9CrSi |
| Capacity (kg/h) | 800 |
| Weights（kg） | 1200 |
Why Choose Our Plastic Plate Crusher Machine Manufacturer
Long Service Life and Low Maintenance Cost
Wear-resistant components and optimized mechanical structure ensure long-term stable operation with reduced maintenance requirements.
Factory Direct Supply — OEM & Custom Support
As a direct manufacturer, we provide OEM services and customized solutions tailored to specific applications.
Energy Saving and Stable Production
The optimized grinding system reduces energy consumption while maintaining high output and consistent powder quality.
Global Shipping & After-Sales Support
Our machines are exported worldwide with professional technical support and responsive after-sales service.
North African-Egypt
We are forging deep partnerships with Egyptian for Roto and Masterbatch Company (ERMC) and PCC Plastic & Consultations Centre (PCC) to unlock the vast North African market and establish a strong foothold in Egypt's masterbatch and rotomoulding sectors.
Middle Eastern-Saudi Arabia
As a supplier to the rotomoulding industry, we have supported the Middle Eastern market and gained their recognition. We commemorated our partnership with clients in Saudi Arabia through photographs, and upon receiving machinery at their Qatar facility, they promptly provided positive feedback videos for our promotional use. Furthermore, they have repeatedly recommended us to other local clients.
