Plastic Pulverizer Rotational Blade

MaoYue PVC Pulverizer Blades are manufactured from premium DC53 or D2 alloy tool steel, featuring precision heat treatment and CNC machining for outstanding hardness, wear resistance, sharp cutting performance, and extended service life. Designed for PVC pulverizer machines, they ensure stable grinding performance, reduced maintenance costs, and higher production efficiency. Ideal for processing PVC pipes, profiles, sheets, and recycled PVC materials.

Model：
MF-500 MF-700 MF-800 MF-850 MF-900
Brand：
Mao Yue
Grinding disc diameter：
470mm
Power：
37kw, 45kw
Production Capacity：
100-300kg/h
Plastic powder size：
20-120 mesh
Application：
PVC pipes/profiles, Floor, wall panels
Cooling method：
Water, air

Inquire

Product Description

PVC Plastic Grinding Machine Blades Video

PVC Plastic Grinding Machine Blades Introduction

pvc pulverizer blade.pdf

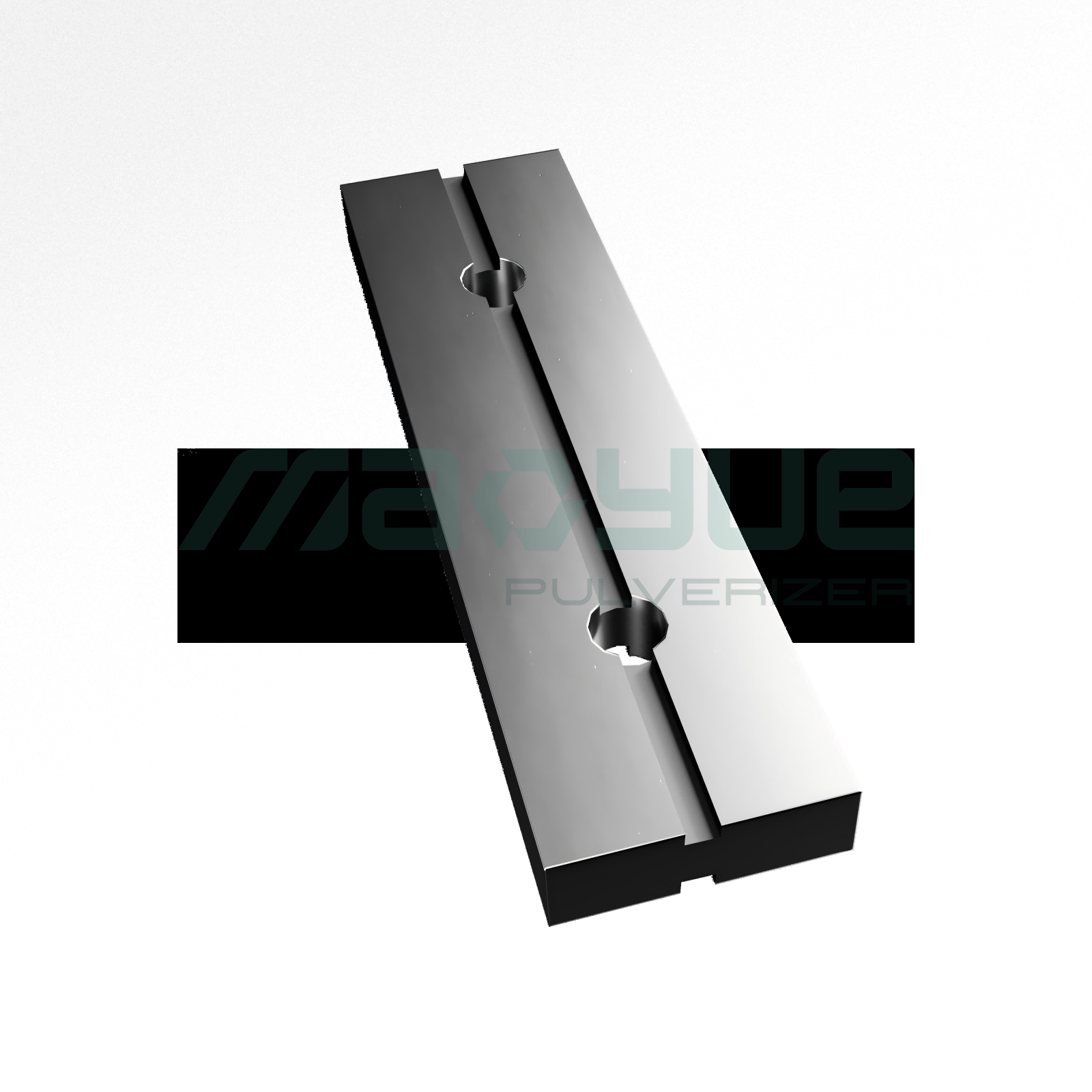

1-刀_Main_0000_副本(1)

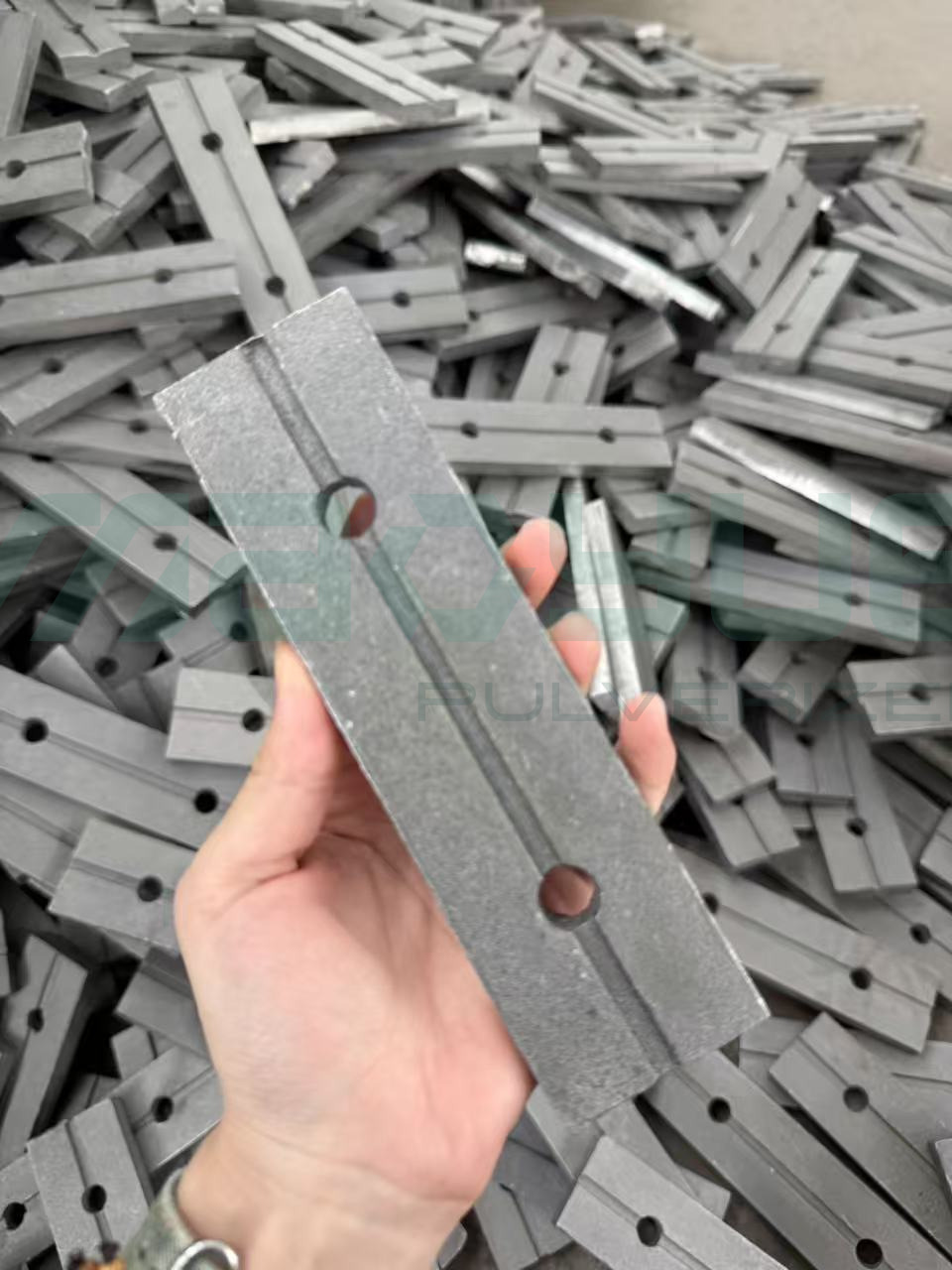

Plastic Pulverizer Rotational Blade

PVC Blade Grinding Chamber

PVC Plastic Grinding Machine Blades Introduction

Maoyue PVC pulverizer blades are specially designed for high-efficiency PVC grinding applications and are widely used in processing PVC pipes, profiles, flooring, cable materials, sheets, and recycled plastic waste. The blades are manufactured from original imported DC53 high wear-resistant alloy steel and undergo multiple heat treatment processes including carburizing, quenching, and tempering, achieving a stable hardness of HRC58-62 with excellent wear resistance, impact resistance, and long service life. Compared with standard blades, the service life is extended by 2-3 times, significantly reducing maintenance and replacement costs.

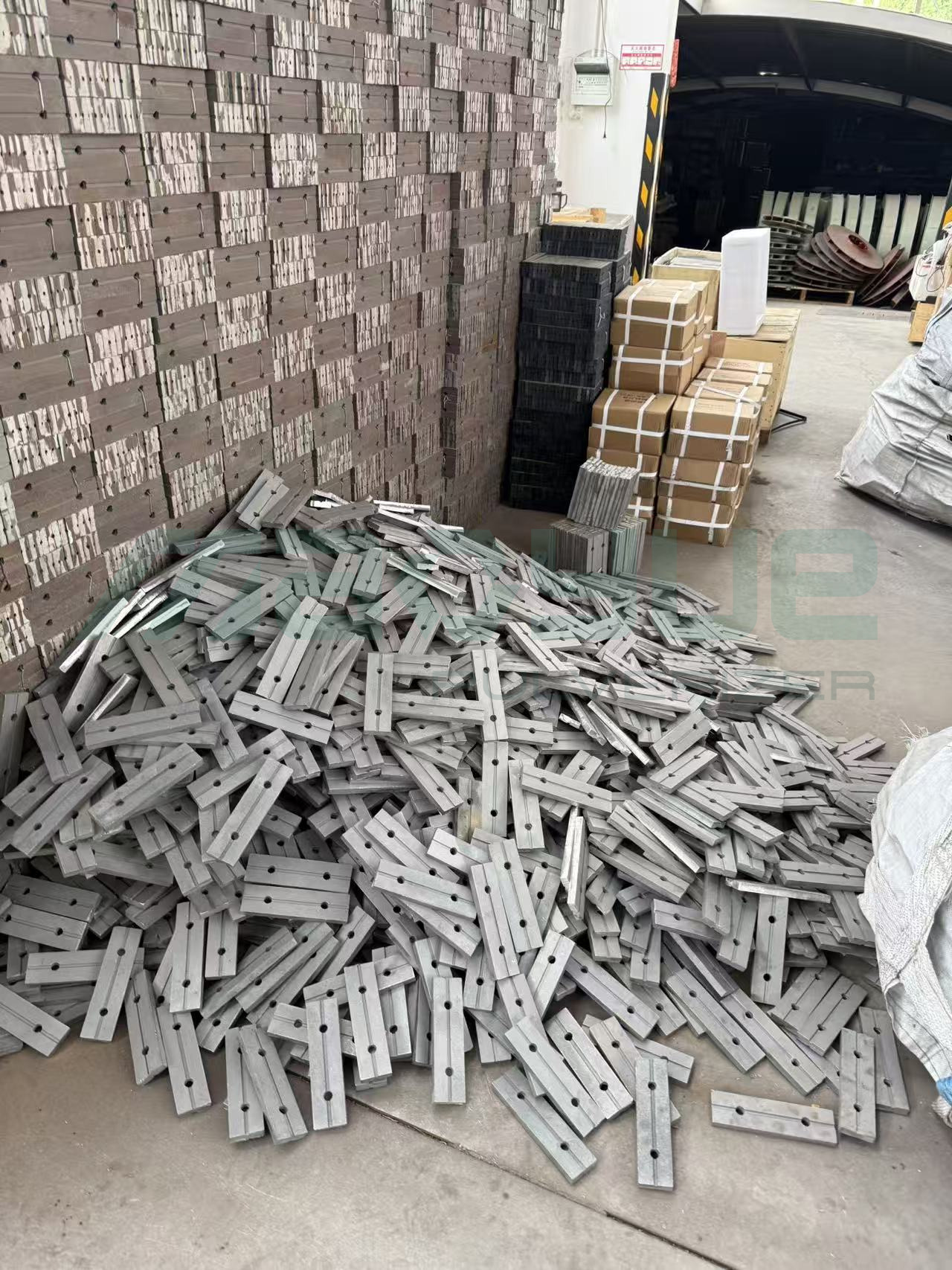

48e28de62d3752ae768989ccf46979b2

Maoyue's optimized blade structure works together with the grinding disc to achieve efficient shearing and stable grinding performance, greatly improving PVC pulverizing efficiency while producing uniform 20-100 mesh fine powder under the same power consumption. Combined with the advanced air-cooling and water-cooling system, it effectively reduces grinding temperature and prevents PVC yellowing, sticking, or degradation caused by overheating, ensuring stable 24-hour continuous industrial operation. Manufactured with high-precision CNC machining, the blades offer stable installation and precise gap adjustment. They are widely used in PVC recycling, modified plastics, chemical powder processing, and plastic recycling industries. With more than 33 years of experience in plastic pulverizing technology, Maoyue continues providing high-quality and highly stable core pulverizer component solutions for global customers.

PVC Blade Composition

Toothed Plate ( Fixed Blade)

Toothed plate wear-resistant degree is very high, to ensure the stability of grinding, can be in the production of large while producing less heat. Complete set with movable knife, simple installation, easy to start.

Rotor (Rotational Blade)

Rotor structure is stable, the use of blade hardness is quite, not easy to damage, are self-research and self-production by the company, the production principle of simple that is, collision with the tooth plate (fixed knife). Replacement is simple, easy to clean.

PVC Plastic Grinding Machine Blades Specificities

The new design of the grinding disc is of good quality, wear resistant and has a service life twice as long as that of an ordinary grinding disc.
The grinding gap is easy to adjust and can be fine-tuned using only a plug gauge and adjusting bolt.

PVC Plastic Grinding Machine Blades Applications

PVC Plastic Grinder Blades is used for the grinding of PVC plastic material, PVC plastic milling machine.

PVC Plastic Grinding Machine Blades Technical Parameters

Model	MF-500	MF-700	MF-800	MF-850
Disc Diameter (mm)	470	660	660	660
Main Motor Power(kw)	37-45	55	75	90
Vibrating Sieve Power(kw)	0.75	0.75	1.5	2.2
Capacity(kg/h)	100-300	200-500	300-800	400-1000

FAQ

1.Is Maoyue a Manufacturer?

MAOYUE, founded in changzhou, china in 1990, iscommitted to serving the global plastic processing industry, focusing on the research and development and manufacturing of crushing recycling equipment. As a family-owned enterprise specializing in crushing and milling technology, our goal is always to make our customers a significant success. Through sustainable and stable technologies and products, MAOYUE has become the preferred source manufacturing supplier for crushing mill and the ideal partner for many customers! OEM projects, always maintaining a leading position in the market.

2.What is the production capacity?

We manufacture products with a yield of 100-1000 kg.

3.How to make a payment?

When we have a clear understanding of the customer's needs, we will recommend suitable products for them, and we also support customization; after that, we will send quotations and contracts, and arrange shipment. Customers can pay via TT bank transfer.

4.How to delivery?

We will arrange FOB, CFR, CIF, EXW and other shipping methods according to customers' needs.

5.How long will it take to receive the goods?

Depending on the customer's shipping address, it usually takes 15-45 business days to ship to the destination.

6.Is there any pre-after sale service?

Yes, we have after-sales service. According to the customer's needs, we will guide on line or arrange the technician to install and repair, so as to ensure that the product can be operated normally.
