Specializing in the production of Plastic Pulverizer Machines.

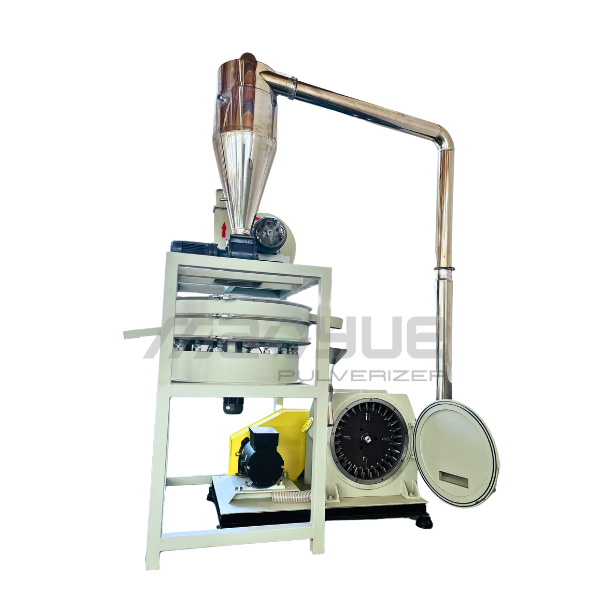

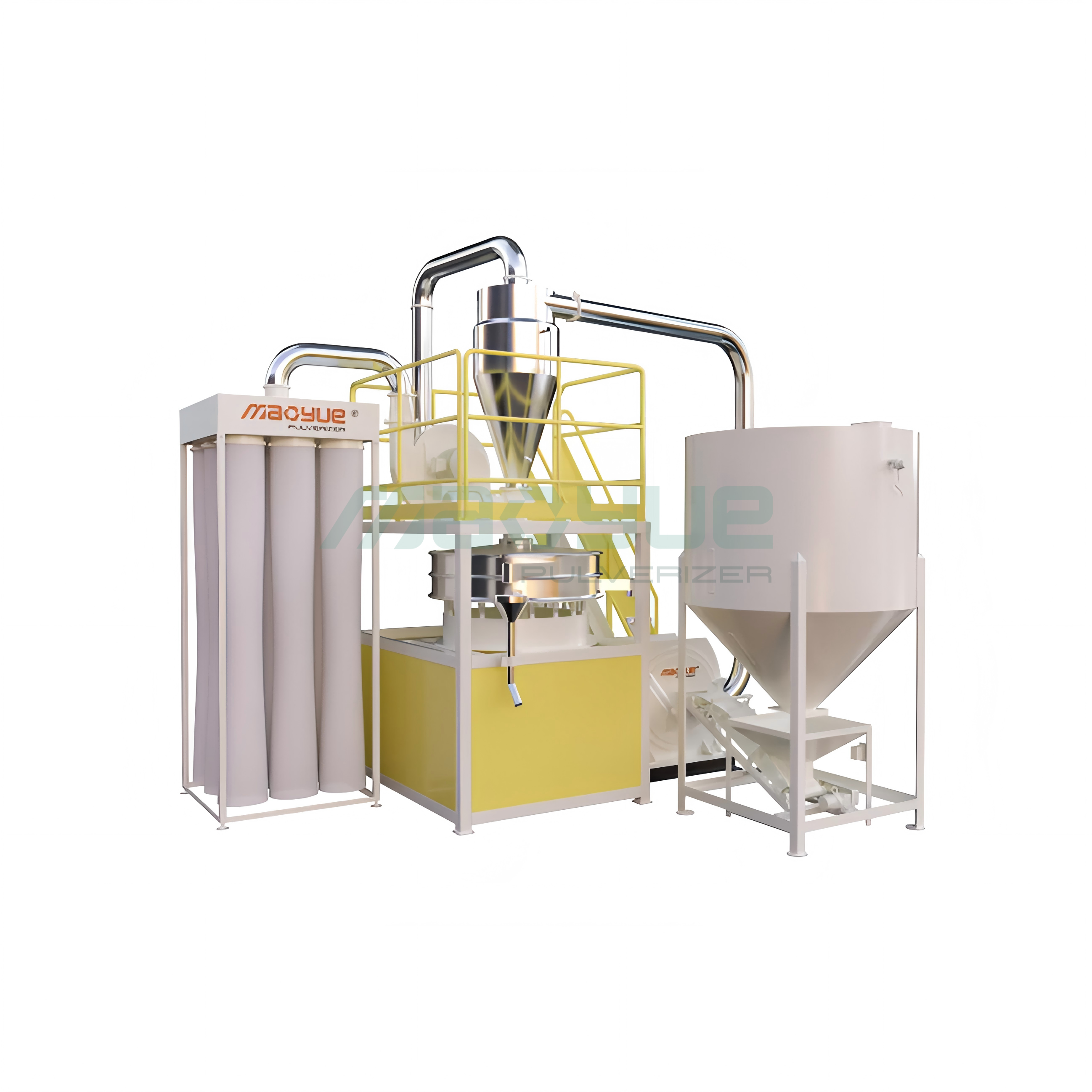

PVC Blade Plastic Grinding Mill
PVC Blade Plastic Grinding Mill
PVC Blade Plastic Grinding Mill
PVC Blade Plastic Grinding Mill
Maoyue PVC Plastic Grinding Machine was created for recycling purposes to ensure that products considered as waste can be used again and again. The most refined machines are used to accomplish the task. Grindable materials include advertising paper, plastic waste bottles, aluminum-plastic film and so on.
  • MF-700

  • Maoyue

  • 660mm

  • 55kw

  • 100-300 kg/h

  • 20-50 mesh

  • PVC pipes/profiles, Floor, wall panels

  • Water,Air

Inquire

What is a PVC Pulverizer Machine for Recycling?

The Maoyue PVC Plastic Mill was created for recycling to ensure that products considered waste can be used over and over again. The PVC Plastic Mill is a high speed precision grinder.

PVC material can be fed into the grinding chamber centrally by means of vibratory loading (iron removal is possible). The hard plastic is fed into the grinding chamber and ground between the rotor and stator knives. The finished material passes through a vibrating screen (optional layer) to obtain the finished product. The most sophisticated machines are used for this task. Grindable materials include advertising paper, waste plastic bottles, aluminum-plastic film, etc.

Industrial PVC Pulverizer Machine for Pipe & Profile Grinding Composition

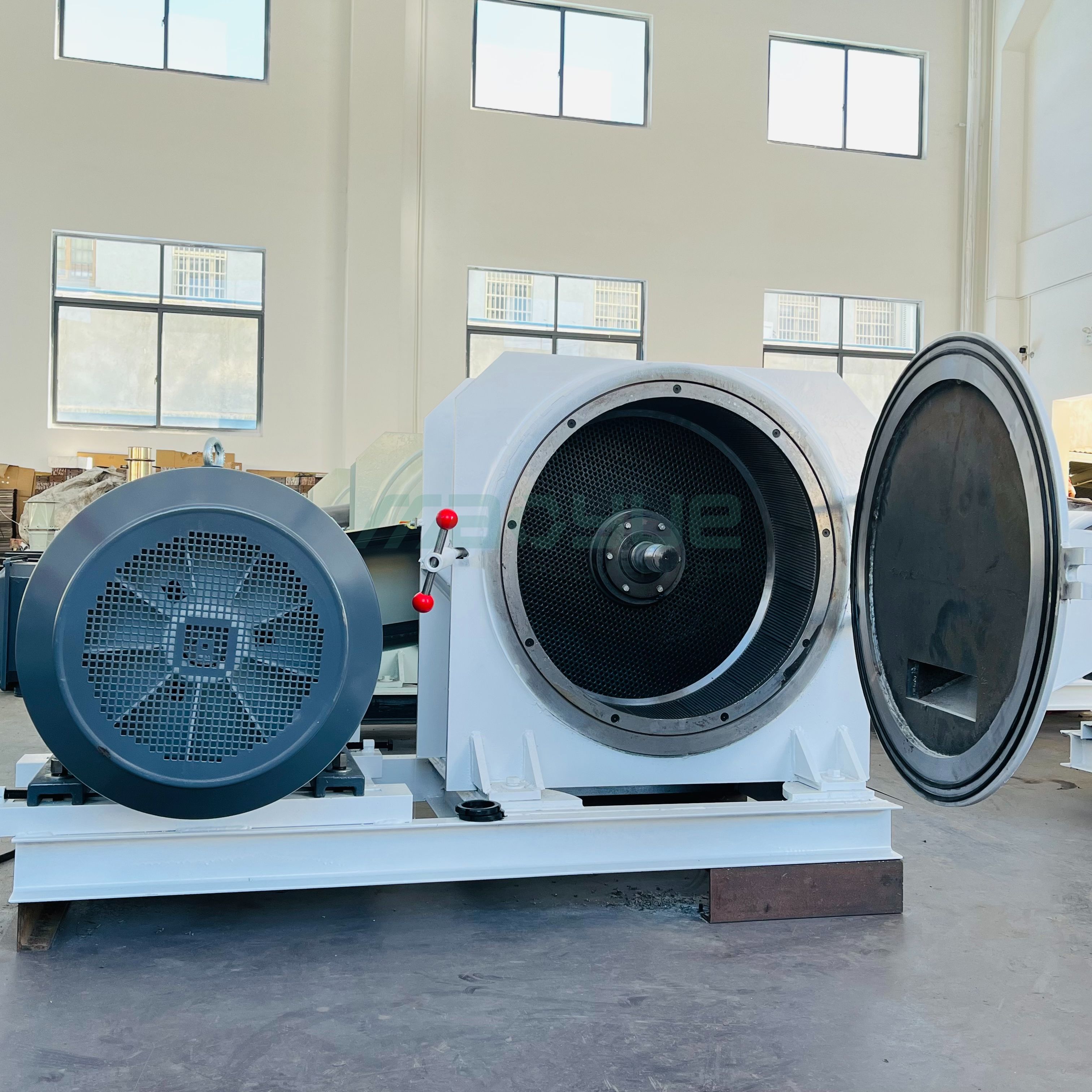

Grinding-room

Grinding room

Bag-filter

Bag filter

Metal-separation-loader

Metal separation loader

Vibrating-screen

Vibrating screen

Main-motor

Main Motor

Fan

Fan

PVC Grinding Machine Content Composition

9

Rotor (Movable Knife)

Rotor structure is stable, the use of blade hardness is quite, not easy to damage, are self-research and self-production by the company, the production principle of simple that is, collision with the tooth plate (fixed knife). Replacement is simple, easy to clean.

pvc Toothed Plate (Fixed Blade)

Toothed Plate (Fixed Blade)

Toothed plate wear-resistant degree is very high, to ensure the stability of grinding, can be in the production of large while producing less heat. Complete set with movable knife, simple installation, easy to start.

pvc machine Iron Removal and Feeding Machine

Iron Removal and Feeding Machine

Utilizing the vibration loading, but unlike others, our loading machine has the function of iron removal, so that the material entering the grinding chamber is very stable.

pvc plastic grinding machine

Plastic PVC Milling Machine Features

Grinding clearance is simple to adjust with a plug gauge and adjusting bolt.

Our mills minimize your business costs with their speed and high capacity. By doing so, you can speed up processes and deliver superior performance for your products.

The powder mill variety offers the advantages of rotor power and blade sharpening combined with the high quality of our brand. You can experience its hourly performance with confidence.

Our machines don't require high maintenance costs and are one of the best designs when it comes to functionality and quality!

PVC Powder Grinding Equipment Configuration

ModelMF-700
Length*Width*Height (mm)2700*2500*3900
Disc Diameter (mm)660mm
Main Motor (kw)55
Number of Movable Knives32
Fan Power (kw)5.5
Vibrating Screen Diameter(mm)   1000
 Cooling MethodWater Air
Capacity (kg/h)100-300
Weights (kg)2000
bg4

Talk to Our Engineer & Get the Right Machine Recommendation

CE Certification

100000539
100000964
100000572

Why Choose Our Industrial PVC Grinding Mill Manufacturer

Long Service Life and Low Maintenance Cost

Wear-resistant components and optimized mechanical structure ensure long-term stable operation with reduced maintenance requirements.

Factory Direct Supply — OEM & Custom Support

As a direct manufacturer, we provide OEM services and customized solutions tailored to specific applications.

Energy Saving and Stable Production

The optimized grinding system reduces energy consumption while maintaining high output and consistent powder quality.

Global Shipping & After-Sales Support

Our machines are exported worldwide with professional technical support and responsive after-sales service.

Why-Choose-Our-PE--PP-Plastic-Pulverizer-Machine

Our Factory & Production Line

Factory and Workshop

Plastic-Pulverizer-Machine-factory3
Plastic-Pulverizer-Machine-factory8
Plastic-Pulverizer-Machine-factory6
Plastic-Pulverizer-Machine-factory2
Plastic-Pulverizer-Machine-factory7
Plastic-Pulverizer-Machine-factory1
Plastic-Pulverizer-Machine-factory5
Plastic-Pulverizer-Machine-factory4

Assembly

Plastic-pellets

Delivery and Shipping

Shipping2
Shipping1
Shipping3

Waste PVC Grinding Machine Successful Projects Worldwide

egypt-clients2
egypt-clients3
egypt-clients1
egypt

North African-Egypt

We are forging deep partnerships with Egyptian for Roto and Masterbatch Company (ERMC) and PCC Plastic & Consultations Centre (PCC) to unlock the vast North African market and establish a strong foothold in Egypt's masterbatch and rotomoulding sectors.

Perfect-aftersales-service-Onsite-commissioning
flag

Middle Eastern-Saudi Arabia

As a supplier to the rotomoulding industry, we have supported the Middle Eastern market and gained their recognition. We commemorated our partnership with clients in Saudi Arabia through photographs, and upon receiving machinery at their Qatar facility, they promptly provided positive feedback videos for our promotional use. Furthermore, they have repeatedly recommended us to other local clients.

Global-clients
worldwide (1)

Global Market

Partners: Below are our diverse partners from across the globe, including but not limited to rotomoulding enterprises, masterbatch manufacturers, trading companies, and distributors. Together, they have established a robust foundation of international endorsement for our operations.

FAQ About PVC Recycling Pulverizer

1.How long can i get the feedbacks after we sent the inquiry?

We shall respond to your enquiry within 8 hours of receipt.

2.Are you a direct manufacturer or trading company?

3.What products can you offer?

4.What applications do your products relate to?

5.Can you do customized products?

6.How about the capacity of your company?

7.How many employees of your comany?what about the technicists?

8.What’s the payment term?

9.How to deliver the goods to us?

10.Where are your products mainly exported to?

Related Products

Custom PVC Pulverizer Machine Solutions

If you are looking for a reliable PVC Pulverizer Machine plastic pulverizer machine, please contact us with your material type, capacity requirement, and target powder fineness.
Our technical team will provide a suitable configuration and fast quotation based on your application needs.
