Views: 0 Author: Site Editor Publish Time: 2026-04-03 Origin: Site
Plastic recycling is not just an environmentally friendly choice—it is a necessity. Every year, millions of tons of plastic waste are generated, and without proper recycling, most of it ends up in landfills or flows into the oceans, posing serious threats to ecosystems and human health.
Therefore, finding efficient and intelligent plastic recycling solutions is crucial for both the sustainable development of our planet and the long-term success of manufacturing businesses. By recycling plastic, we can significantly reduce waste while converting it into high-quality recycled raw materials for producing new plastic products—achieving both resource circularity and economic benefits.
As global awareness of environmental protection continues to rise, plastic pollution has become an urgent issue that must be addressed. To tackle this challenge, industries across the board are actively exploring practical plastic recycling and reuse solutions. Companies are not only striving to comply with increasingly strict environmental regulations, but also to meet growing consumer demand for sustainable products. This trend has directly driven the increasing demand for efficient plastic pulverizing systems.
Plastic recycling is not only beneficial for the environment, but also brings tangible economic advantages. By recycling plastic, greenhouse gas emissions can be significantly reduced, and valuable natural resources can be conserved. At the same time, processing waste plastic into high-quality powder for reuse in production helps lower raw material procurement costs and reduces production waste, thereby improving overall operational efficiency and sustainability.
More importantly, products made from recycled pulverized plastic align with green and sustainable development goals, while also meeting the growing consumer demand for eco-friendly products. This enables companies to build a strong, responsible brand image and achieve a win-win outcome between economic performance and social responsibility.
Plastic recycling pulverizing systems are designed to process waste plastic into uniform and stable fine powder that can be directly used in the production of new products. These systems typically include conveying, crushing, pulverizing, and screening processes, ensuring that each step is carried out safely, reliably, and efficiently.
As core equipment in plastic recycling plants, pulverizing systems not only improve production efficiency but also ensure consistent particle size, which enhances the quality and processability of the final products. In addition, modern systems are often equipped with metal separation, dust collection, and automatic control functions. These features help reduce equipment wear and maintenance costs while ensuring operator safety.
A plastic pulverizer is a specialized machine designed to process plastic materials into smaller particles or fine powder. It typically uses high-speed rotating blades or grinding discs to apply shearing, impact, and grinding forces, achieving efficient size reduction. Depending on the material properties, the machine can adjust parameters such as rotational speed, disc clearance, and cooling methods to produce uniform and stable powder particle sizes.
A plastic pulverizing system consists of several essential components that work together to ensure smooth and efficient operation. From raw material feeding to final powder output, each stage plays a crucial role in production efficiency and product quality.

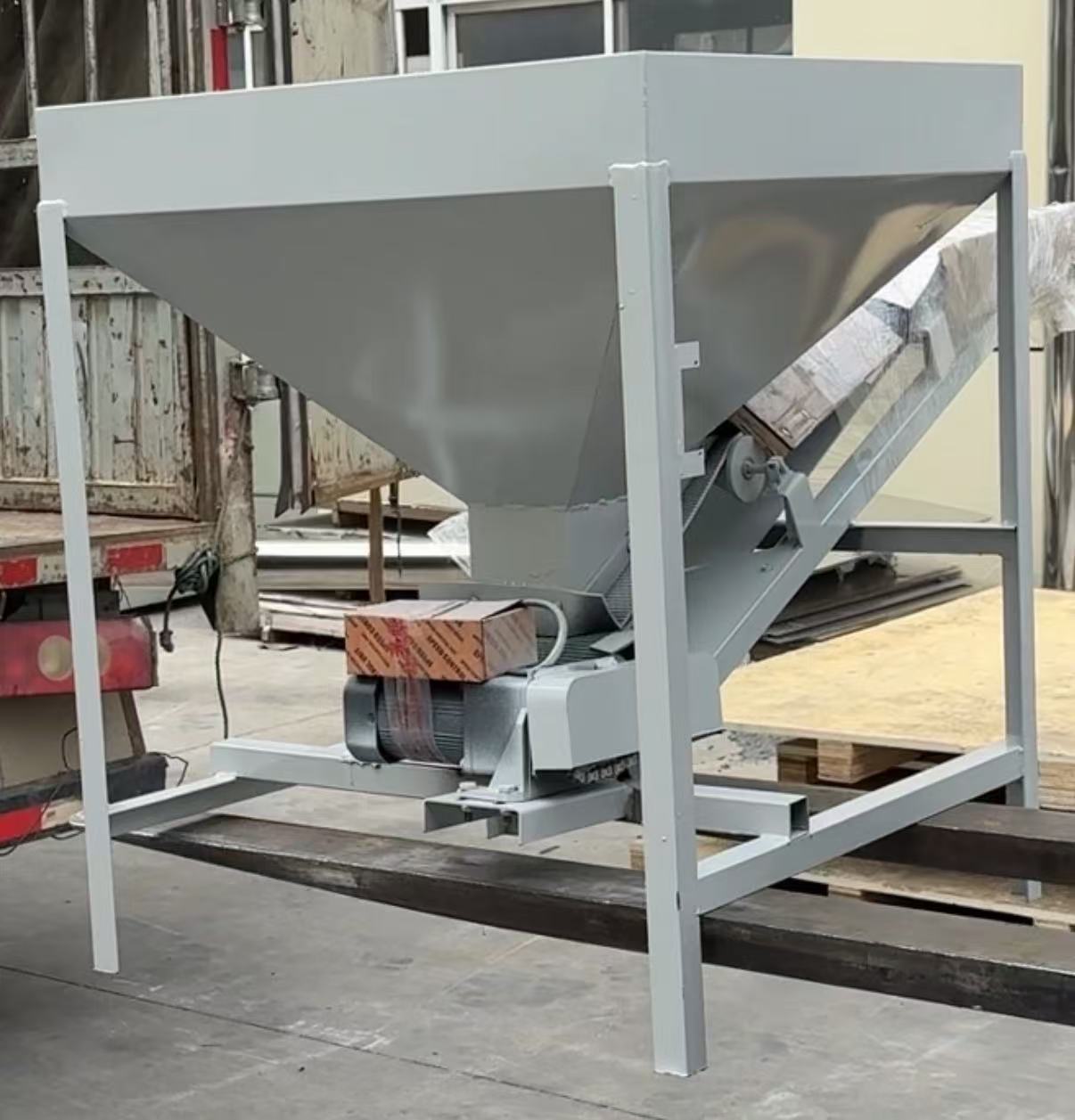

The magnetic feeder is the front-end equipment of the system, responsible for continuously and stably conveying plastic raw materials or pre-crushed flakes into the pulverizer. During this process, the built-in magnetic separation device effectively removes iron contaminants from the material, preventing damage to the machine and ensuring the quality of the final product.
The rotor and blades are the core working components of the pulverizing system, directly determining the grinding efficiency and powder quality. The material, structural design, and rotational speed of the blades all have a significant impact on the final particle size distribution.

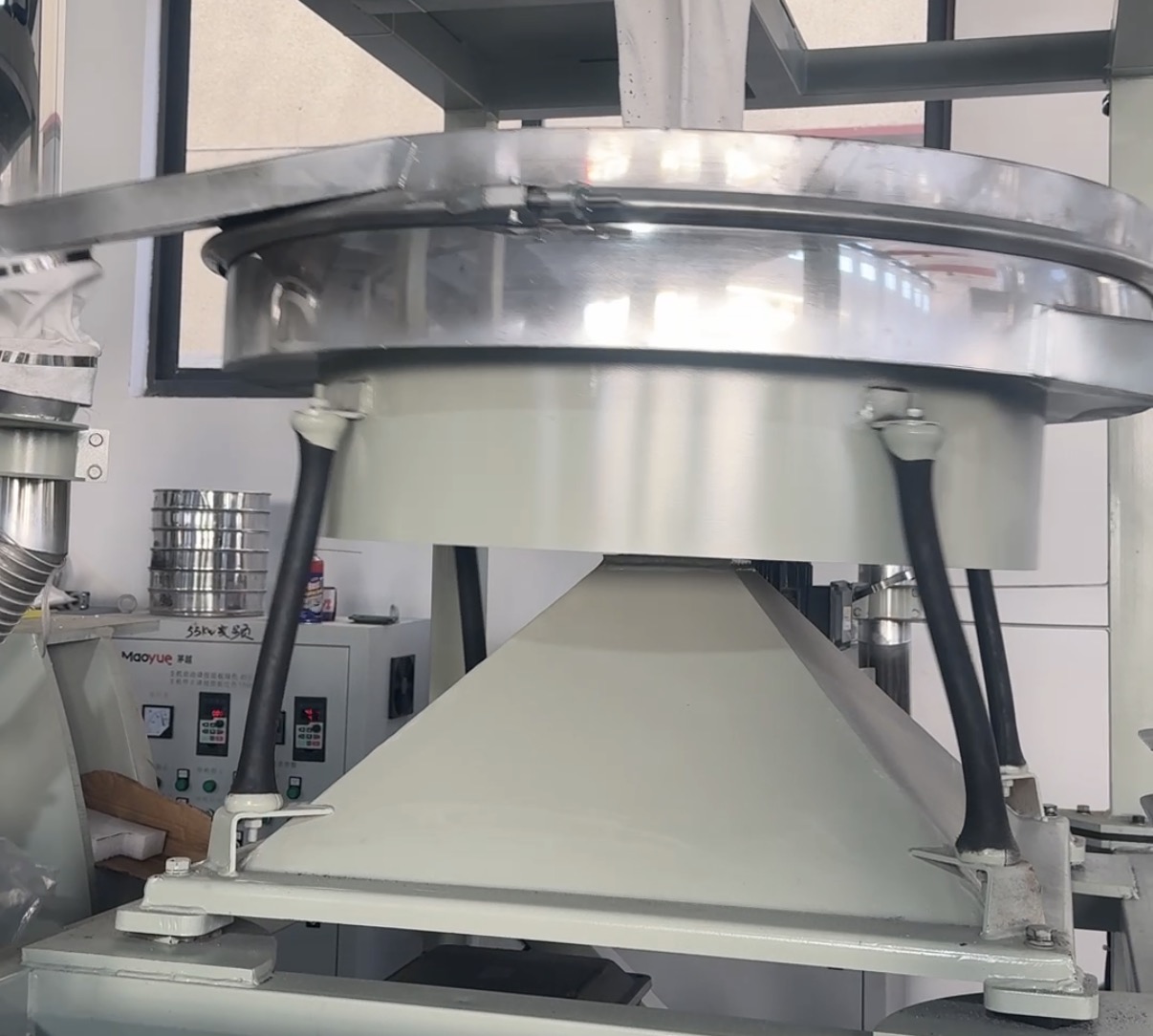

After pulverizing, the screening system is responsible for precise classification of the powder. By using sieves of different mesh sizes, the powder is separated according to particle size, ensuring uniformity and consistency of the final product. Particles that do not meet the target size are automatically returned to the pulverizing chamber for reprocessing, forming a closed-loop system that improves material utilization. This ensures stable product quality and meets strict particle size requirements for various applications.

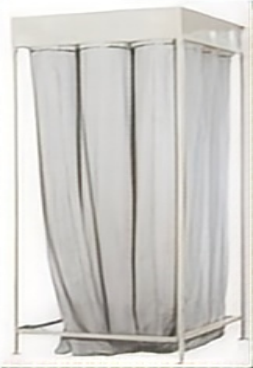

During the pulverizing process, high-speed friction and impact generate a significant amount of dust. If not properly handled, this dust can affect machine performance and pose health risks to operators. Therefore, an efficient dust collection and filtration system is essential. Through negative pressure suction and multi-stage filtration, dust is promptly collected and filtered, maintaining a clean and safe production environment.
Different types of plastic materials vary significantly in hardness, toughness, and heat sensitivity. Therefore, in practical production, different pulverizer structures and working principles are required to meet diverse processing needs. At the same time, various applications demand different powder particle sizes, uniformity, and production capacity. Understanding the characteristics and suitable applications of each type of pulverizer helps companies select the most appropriate equipment solution, improving efficiency, reducing energy consumption, and ensuring stable product quality.

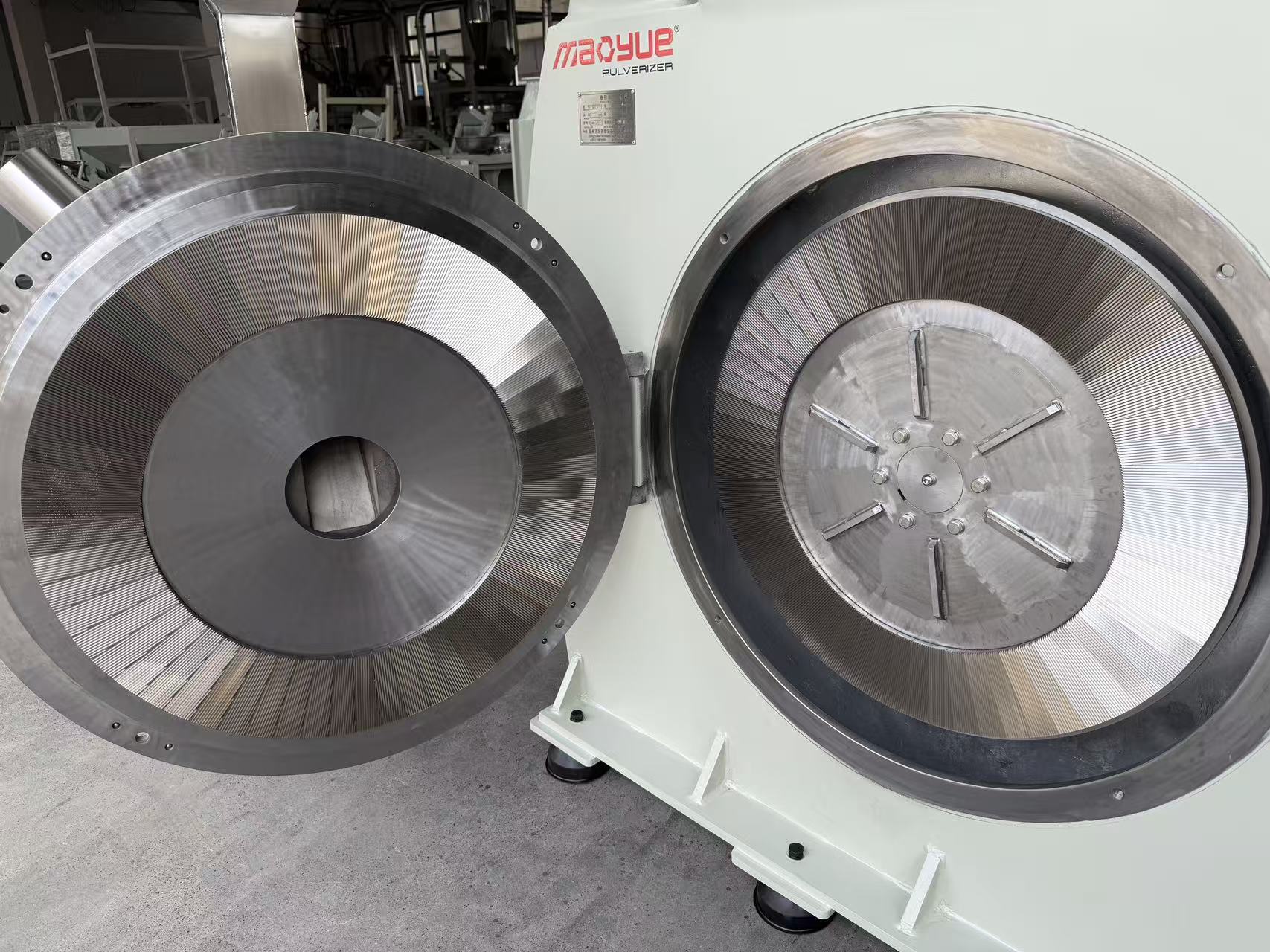

The disc-type pulverizer uses the shearing and grinding action between a high-speed rotating disc and a fixed disc to gradually reduce plastic materials into fine powder. This type of machine is typically equipped with a precise adjustment mechanism, allowing control of the gap between discs to achieve different particle sizes.
Disc pulverizers are especially suitable for brittle or medium-hard plastics such as PVC and PE, and can consistently produce powders in the range of 40–100 mesh or even finer. They are widely used in applications such as rotomolding, profiles, and sheet production.
Hammer or rotor-type pulverizers use a high-speed rotating rotor equipped with hammers or blades to deliver strong impact forces that crush plastic materials. These machines feature a robust structure and are ideal for processing larger or more flexible plastic materials, such as thick-walled pipes, bulky waste, or pre-crushed recycled plastics.
Their main advantages are high processing capacity and strong adaptability, enabling continuous high-output operation. As a result, they are widely used in the recycling industry and for coarse grinding processes.
Air classifier pulverizers combine mechanical grinding with airflow classification technology, allowing precise control over particle size. During operation, fine particles that meet the required size are carried by the airflow into the collection system, while larger particles are returned to the grinding zone for further processing.
This type of pulverizer is ideal for applications requiring high precision, such as premium rotomolding powders, functional materials, and fine chemical processing.

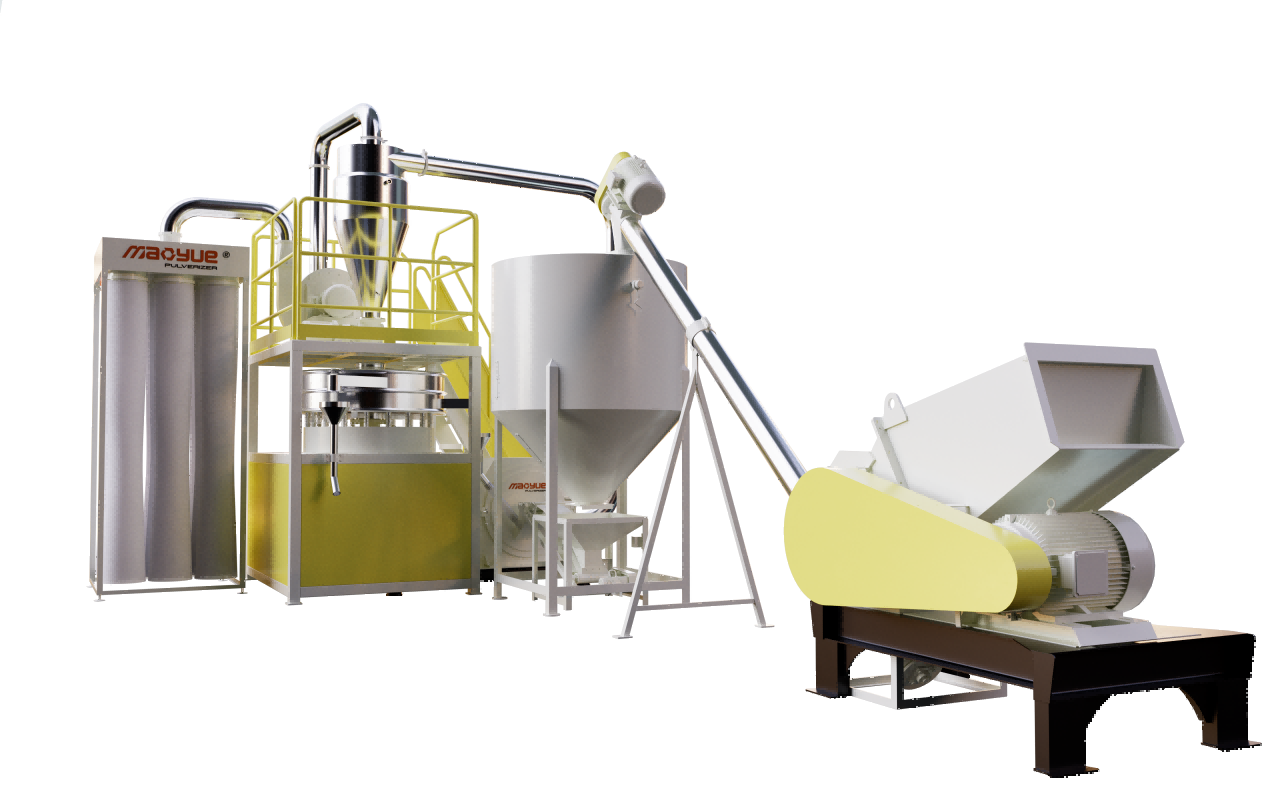

An efficient plastic recycling pulverizing system typically follows a clear and structured workflow, from raw material collection to final powder output. Each stage is carefully designed to ensure production efficiency, product quality, and operational stability. Standardized process management not only reduces human error but also maximizes resource utilization, enabling continuous and large-scale production.
The first step in the process is collecting and sorting waste plastics. Plastics are separated based on type, color, and purity to prevent performance inconsistencies caused by mixing different materials. High-quality front-end sorting improves downstream processing efficiency and significantly enhances the purity and uniformity of the final powder, making it a critical factor in ensuring product quality.
For bulky or irregularly shaped plastic products, pre-processing with a crusher is required to reduce them into smaller, uniform particles. This step significantly reduces the load on the pulverizer, prevents equipment overload, and improves the uniformity and efficiency of subsequent grinding.
The crushed plastic particles enter the pulverizer, where high-speed rotors or grinding discs use shearing, impact, and friction mechanisms to grind them into fine powder. Depending on application requirements, operators can adjust rotational speed, disc clearance, and cooling systems to achieve a specific particle size range.
The pulverized material is then sent to the screening system, where particles are classified according to mesh size. Fine powder that meets specifications is collected, while larger particles that do not meet the standard are automatically returned to the pulverizer for reprocessing, forming a closed-loop system.
The final qualified plastic powder is conveyed to storage bins or automatically packaged into bulk bags or smaller bags for storage and transport. During this stage, special attention must be paid to moisture protection, contamination prevention, and anti-static measures to maintain the stability and usability of the powder.
Selecting the right plastic pulverizer is a key step in ensuring production efficiency, product quality, and long-term operational cost control. Different companies vary in terms of raw material types, production scale, and application scenarios, so multiple factors need to be considered during the selection process. A well-planned equipment choice can not only enhance production stability but also reduce energy consumption and maintenance costs, delivering sustained economic benefits for the enterprise.
Plastic materials differ significantly in their physical properties, and different materials require pulverizers with matching structures and power configurations. For rigid plastics or highly filled materials, machines with more robust construction and superior wear resistance should be selected, equipped with high-strength blades or optimized disc designs to ensure stable operation and extend equipment lifespan.
When choosing a pulverizer, it is essential to define the desired particle size of the final product. Different applications have varying requirements; for example, rotomolding typically requires fine powders in the 40–60 mesh range, while some recycling applications allow coarser particles. Disc-type pulverizers are suitable for producing uniform fine powder, whereas hammer or rotor-type machines are more appropriate for coarse grinding stages.
Enterprises should accurately assess their hourly or daily processing capacity requirements based on their production scale. For small to medium production lines, a single pulverizer with intermittent feeding may suffice. For large-scale factories, multiple machines or fully automated continuous production lines, including automatic feeding, metal separation, and centralized control systems, are more suitable.
Energy consumption is an important factor affecting production costs. Selecting high-efficiency, energy-saving pulverizers can significantly reduce electricity use and operational costs over long-term operation. Modern pulverizers often feature optimized structural designs, high-efficiency motors, and intelligent control systems, achieving lower energy consumption while maintaining output and powder quality.
Pulverized plastic is a high-value, versatile recycled material that can replace virgin plastics across multiple industries. Properly pulverized plastic powder not only ensures uniform particle size but also improves processing performance and product surface quality.
Pulverized plastic is widely used in injection molding, particularly for small parts and complex molds. Uniform powder flows smoothly in the injection machine, reducing issues such as uneven melting or air pockets, and ensuring dimensional accuracy and surface finish of the final product.

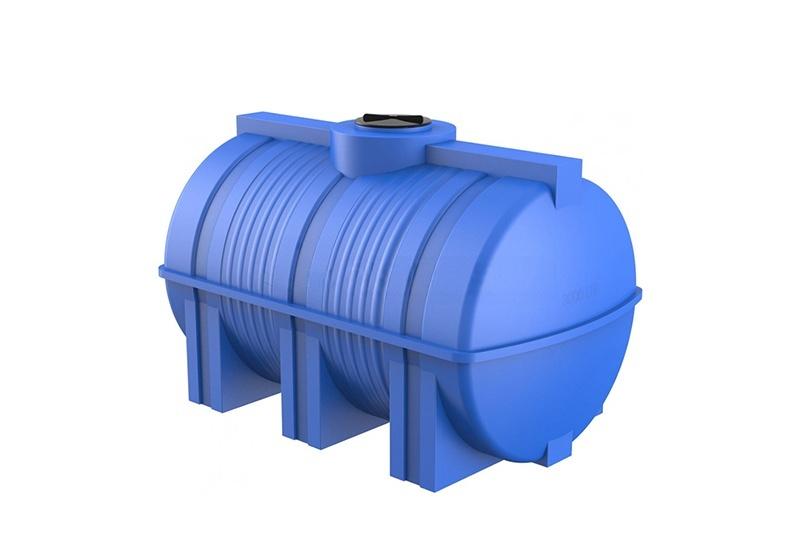

Pulverized plastic is extensively applied in rotomolding to produce hollow products such as water tanks, chemical containers, toys, and furniture components. Fine, uniform powder melts evenly inside the mold, ensuring consistent wall thickness, smooth surfaces, and higher material utilization.

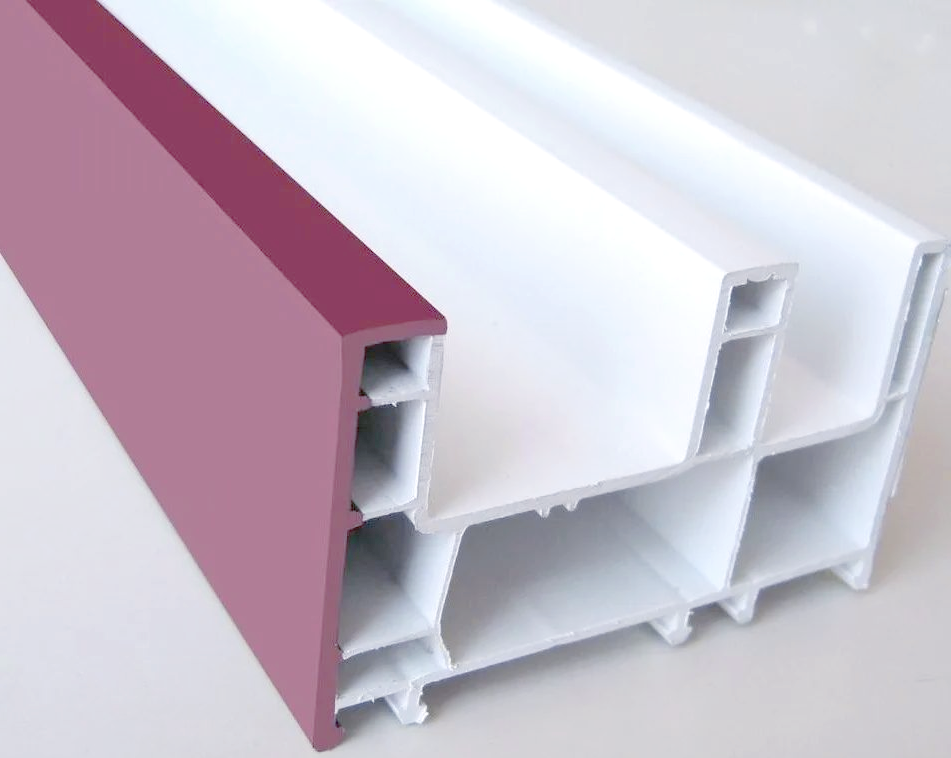

In extrusion, pulverized plastic can be melted into sheets, pipes, films, or profiles for construction, packaging, and industrial applications. Uniform powder ensures good flow, stable thickness, and minimizes defects such as bubbles or cracks during extrusion.
Even experienced operators may encounter technical and operational challenges during plastic pulverization. Understanding potential issues and effective solutions is crucial for improving production efficiency, ensuring product quality, and prolonging equipment lifespan.
Different plastics vary in physical properties and melting points. Pulverizing mixed plastics without proper sorting may cause powder contamination, increased equipment wear, or processing failures. Companies should implement strict front-end material sorting and, when necessary, use specialized pulverizers or multi-functional machines with adjustable parameters.
During pulverization, residual powder or incompatible materials can lead to product contamination and quality issues. Regular cleaning of pulverizers, screening equipment, and conveying systems, along with standardized operator training, is key to preventing contamination. Independent feeding channels or dedicated cleaning procedures should also be used to avoid mixing materials from different batches.
Pulverization generates dust, which can waste raw materials and pose risks to the environment and operator health. To minimize dust, install high-efficiency dust collection systems such as bag filters or cyclone separators and perform regular maintenance. Optimizing feed rate, blade clearance, and cooling systems can reduce powder loss and rework, increasing material utilization.
Choosing the right plastic recycling pulverizing system can significantly reduce production costs while improving the precision and consistency of the final product. Efficient pulverization and screening processes minimize raw material waste, lower energy consumption, and produce uniform powder particles, enhancing the quality of injection-molded, rotomolded, or extruded products. Additionally, intelligent equipment and automated control systems optimize production parameters, reduce human error, and improve overall efficiency. Proper equipment selection, routine maintenance, and a deep understanding of the recycling workflow are essential for long-term operational success, system stability, and extended equipment life.
