In the plastics recycling industry, recovering polyvinyl chloride (PVC) is both a major challenge and a massive financial opportunity. PVC is highly durable, weather-resistant, and widely used in construction, pipes, and electrical cables. However, simply shredding or granulating post-industrial and post-consumer PVC waste is no longer enough to satisfy high-end manufacturers. Coarse plastic flakes cannot melt evenly in modern extruders, which limits their use to low-grade, low-margin products.

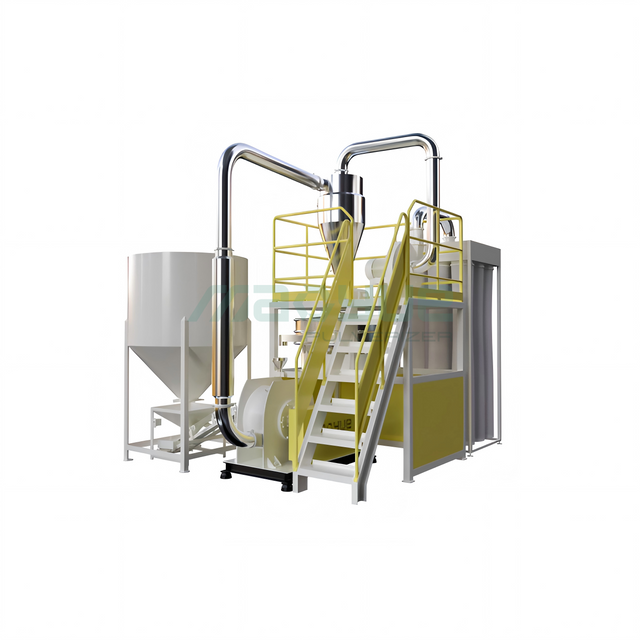

To bridge this gap, modern recycling facilities rely on the PVC Pulverizer Machine. By grinding coarse flakes into ultra-fine, consistent powders, this machine unlocks access to premium, high-value manufacturing applications. It allows recyclers to turn cheap waste profiles, window frames, and pipes into specialized raw materials that command top dollar. In this comprehensive guide, we will analyze the key advantages of integrating a High Efficiency PVC Pulverizer Machine into your recycling workflow, showing you how it optimizes processing, reduces waste, and boosts overall profitability.
The primary goal of any plastic recycling plant is to maximize the resale value of its processed material. If you only shred plastic waste, you are stuck selling coarse regrind. Manufacturers of high-end plastic goods cannot use regrind directly because it ruins their extrusion screws and causes surface defects. By adding an Industrial PVC Pulverizer Machine to your production line, you instantly elevate your product from cheap construction scrap to high-grade micronized powder.
Coarse flakes behave poorly during the melting process. They have a small surface-area-to-volume ratio, which means they take longer to absorb heat.
Uneven Melting: When flakes enter an extruder, the outer layers melt while the core remains solid. This creates cold spots, clogging screens and damaging expensive equipment.
Inconsistent Density: Flakes pack together unevenly in shipping and storage. This makes feeding rates inconsistent, leading to variable wall thickness in finished extruded products.
Air Trapping: Large flakes trap air pockets during transport through the extrusion screw, resulting in structural bubbles in the final product.
By using a PVC Plastic Pulverizer Machine, you reduce these flakes to a uniform powder (typically between 30 and 80 mesh). This powder melts instantly and flows smoothly through manufacturing equipment, eliminating the issues associated with raw regrind.
Once you turn your PVC scrap into a high-quality powder, you can sell to premium manufacturers who produce high-performance goods.
Window Profile Co-extrusion: Premium window manufacturers blend fine recycled powder with virgin PVC to create the structural core of new window frames.
Precision Pipe Manufacturing: Water pipe producers require ultra-fine powder to maintain wall strength and pressure ratings without using costly chemical additives.
Vinyl Flooring Production: High-density vinyl planks require a solid, bubble-free plastic layer that only uniform micronized powder can deliver.
Processed Material Form | Average Market Value (USD/Ton)* | Compatible Applications | Processing Margin |
|---|---|---|---|
Raw PVC Regrind/Flakes | $300 - $450 | Low-end drainage tiles, basic spacers | Very Low |
Pulverized PVC Powder | $850 - $1,200 | Window profiles, pressure pipes, vinyl flooring | High |
*Note: Market values are average estimates for industry comparison purposes and are subject to regional market fluctuations.
Polyvinyl chloride is notoriously sensitive to high temperatures. If PVC gets too hot during processing, it reaches its thermal degradation point. When this happens, the polymer chains break down, releasing corrosive hydrochloric acid (HCl) gas. This gas ruins your machinery, endangers your staff, and turns your valuable plastic into black, charred waste. A high-quality PVC Pulverizer Machine solves this problem with advanced, multi-layer cooling systems that protect the material's molecular structure.
Friction is unavoidable when you grind tough plastic down to the micron level. This friction creates rapid heat. To combat this, modern systems surround the grinding chamber with cooling jackets.
Constant Cold-Water Flow: Chilled water continuously flows through the double-walled casing of the pulverizer. It absorbs heat from the stator and rotor discs, keeping the internal temperature below 65°C.
Closed-Loop Chiller Integration: High-efficiency plants connect their pulverizer to an industrial chiller. This maintains a steady coolant temperature of 10°C to 15°C, ensuring the machine can run 24/7 without thermal spikes.
Corrosion Resistance: The cooling jackets are built from high-grade stainless steel to prevent rust and ensure long-term, trouble-free thermal exchange.
Water cooling handles the metal structure, but air cooling protects the plastic particles directly as they move through the machine.
Instant Heat Extraction: A powerful suction blower pulls a massive volume of ambient air through the grinding chamber. This air absorbs heat directly from the plastic particles as they are being sheared.
Pneumatic Transportation: The same air that cools the powder also carries it out of the chamber. This reduces the residence time of the material in the hot zone to less than a fraction of a second.
Cyclone Separation: The air and powder enter a cyclone collector where the hot air is vented out, and the cooled powder is discharged safely into storage bags.
Energy is the largest recurring cost for any plastic recycling facility. Grinding tough PVC requires heavy-duty motors, and running these motors at full capacity can result in massive electric bills. A High Efficiency PVC Pulverizer Machine uses modern electrical engineering to maximize throughput while minimizing power consumption, helping you keep your operating margins high.
Traditional pulverizers run their main motors at a fixed speed, regardless of how much material is actually inside the grinding chamber. This wastes a huge amount of energy.
Soft Starting: Variable Frequency Drives (VFDs) gradually ramp up the motor speed when you turn the machine on. This eliminates the massive power spikes that can trigger peak-demand charges from your local utility company.
Adaptive Speed Control: The VFD continuously monitors the electrical load on the main motor. If the feeding rate slows down, the system automatically adjusts the power input to match the reduced load, saving electricity.
Overload Prevention: If the grinding chamber gets temporarily packed with material, the VFD quickly manages the motor's torque and slows down the vibratory feeder to prevent a costly electrical trip.
To evaluate the true efficiency of your pulverizer, you must calculate how many kilograms of quality powder it produces for every kilowatt of electricity consumed.
Direct-Drive Engineering: Older machines use belts to connect the motor to the grinding shaft. These belts slip and lose up to 10% of their energy to friction. Modern systems use direct-drive couplings, delivering 99% of the motor's energy straight to the grinding disc.
Optimized Tooth Profiles: Grinding discs are computer-designed with specific tooth angles that cut rather than crush the plastic. This slicing action requires far less mechanical force, reducing the overall power draw.
Automated Feeder Coordination: By matching the speed of the vibratory feeder to the exact cutting capacity of the discs, the machine operates at its absolute peak efficiency curve all day long.
In a busy recycling plant, machine downtime is a profit killer. If your pulverizer is constantly offline for blade adjustments or repairs, you cannot meet your customer contracts. An Industrial PVC Pulverizer Machine is designed with heavy-duty materials and quick-maintenance features to ensure maximum uptime and a low cost of ownership.
Many PVC scraps, especially old window profiles and floor tiles, contain high levels of calcium carbonate fillers. These mineral additives are highly abrasive and can wear down standard steel blades in a matter of days.
High-Chromium Alloys: The grinding discs in premium machines are cast from specialized high-chromium or tungsten-carbide alloys. These materials resist abrasive wear, maintaining their sharp cutting edges for hundreds of hours.
Balanced Rotary Action: The rotating disc is dynamically balanced on a precision lathe. This eliminates high-speed vibrations that can damage the main bearings and cause uneven blade wear.
Symmetrical Tooth Designs: Many modern discs are reversible. When one side of the teeth gets dull, you can simply flip the disc over to use the fresh side, instantly doubling the lifespan of the tool before you need to resharpen it.
Even the toughest blades eventually need maintenance. Modern pulverizers make this process as easy and fast as possible.
Front-Opening Chambers: The grinding chamber is secured by heavy-duty swing bolts. Operators can open the door in minutes without using specialized hydraulic tools.
Slide-Out Shafts: The main rotor assembly can slide forward, giving operators complete, unobstructed access to the rotating disc for cleaning, inspection, or replacement.
Preset Adjustments: Micro-adjustment dials allow operators to set the exact gap between the discs quickly. You do not have to spend hours checking the clearances with complex tools.
Historically, plastic grinding facilities were dirty, dusty, and loud places to work. Today, strict environmental and workplace health regulations make those conditions unacceptable. A Low Noise Plastic Pulverizer Machine helps you comply with safety laws while creating a much cleaner and safer environment for your operators.
The sound of high-speed metal cutting plastic can easily exceed 100 decibels, which can cause permanent hearing damage and increase worker fatigue.
Double-Walled Soundproofing: The entire motor and grinding chamber are housed inside a heavy steel cabinet lined with high-density acoustic foam. This drops noise levels below 80 decibels.
Vibration Dampening Pads: The machine sits on heavy-duty rubber pads that absorb low-frequency vibrations, preventing the floor and walls of your facility from shaking.
Precision Air Ducting: The pneumatic transport pipes are designed with smooth curves rather than sharp corners, reducing the rushing wind noise that contributes to high ambient decibels.
Fine PVC powder is extremely light and can easily escape into the air. Breathing in this dust is a major health hazard, and thick airborne dust can also pose a serious dust-explosion risk.
100% Hermetic Sealing: Every joint, flange, and pipe connection in the system is sealed with durable rubber gaskets to prevent any powder leaks.
High-Efficiency Cyclone Separators: The cyclone uses centrifugal force to separate 99.9% of the powder from the air stream, dropping the clean powder directly into collection bins.
Pulse-Jet Dust Collectors: For the remaining micro-dust, a secondary bag filter system captures the smallest airborne particles, venting only clean, filtered air back into your facility.
PVC comes in many different forms, from rigid, thick conduits to highly flexible, soft cable insulation. A versatile PVC Pulverizer Machine can easily adapt to these different materials, allowing your recycling plant to take on a wider variety of waste streams and secure more profitable contracts.
Rigid and flexible PVC behave very differently when they are processed.
Rigid PVC Profiles: These are brittle and shatter easily under high-speed impact. They grind quickly but require precise temperature monitoring because they degrade rapidly.
Flexible PVC Scrap: This material contains plasticizers that make it rubbery. It bends instead of breaking, requiring a tighter blade gap and maximum airflow to prevent the elastic plastic from warming up and sticking together.
By adjusting the mechanical parameters of your machine, you can switch from processing rigid siding to soft cable scrap on the same afternoon.
VFD Speed Adjustments: You can slow down the rotor speed for soft PVC to reduce friction heat, then speed it up for rigid PVC to maximize hourly output.
Micro-Gap Customization: Use the external adjustment bolts to set a wider gap for coarse, high-volume pipe powder, or tighten it for ultra-fine compounding powder.
Changeable Sizing Screens: Sifting screens can be swapped out in under ten minutes, allowing you to quickly match the exact mesh size requested by your buyers.
Material Feature | Rigid PVC (Pipes/Windows) | Flexible PVC (Cables/Mats) |
|---|---|---|
Material Behavior | Hard, brittle, shatters easily | Soft, elastic, stretches under load |
Required Disc Gap | 0.4mm - 0.6mm (Wider) | 0.2mm - 0.3mm (Tighter) |
Rotor Speed Setting | High (50 - 60 Hz) | Medium (35 - 45 Hz) |
Cooling Requirement | Standard Water + Air cooling | Maximum Water + High-Velocity Air |
Integrating a PVC Pulverizer Machine into your recycling plant is one of the smartest investments you can make. It solves the biggest bottlenecks in plastic processing by turning low-value, uneven flakes into high-grade, premium powder. The advantages are clear: you gain access to lucrative, high-margin manufacturing markets, prevent thermal degradation of your sensitive materials, and significantly lower your monthly energy costs. Furthermore, with modern low-noise and dust-free designs, you can easily maintain a clean, safe, and regulatory-compliant workshop.
If you are looking to upgrade your recycling capabilities, Maoyue Plastic Pulverizer is here to support you. We are a premier manufacturer of high-performance Industrial PVC Pulverizer Machines and High Efficiency PVC Pulverizer Machines. Our equipment is engineered to withstand the toughest recycling environments, featuring advanced VFD motor controls, robust water-cooling systems, and precise gap adjustment mechanisms.
To explore our full range of pulverizing solutions and see how we can help you maximize your recycling profits, visit us today at Maoyue Plastic Pulverizer. Let us help you turn your plastic waste into high-value raw material.
A granulator only cuts plastic into coarse flakes (typically 3mm to 10mm). These flakes are too large and uneven for precision processes like pipe extrusion or window profile manufacturing. A pulverizer takes those flakes and grinds them down to a consistent, fine powder (30 to 80 mesh) that melts quickly and evenly.
Our machines use a dual-cooling approach. First, an active water-cooling jacket circulates cold water around the grinding chamber to absorb heat from the metal. Second, a high-velocity suction blower pulls a massive volume of cool air through the chamber to draw heat away from the plastic particles directly.
Yes, you can. However, you must adjust the operating parameters. Rigid PVC grinds best at high speeds with a slightly wider gap. Flexible PVC is rubbery and requires a tighter gap, slower motor speeds (controlled via the VFD), and maximum cooling to prevent the material from heating up and sticking together.
This depends entirely on the abrasiveness of your feedstock. Clean, virgin PVC scrap will allow the discs to last for hundreds of hours. However, post-consumer PVC that contains sand, dirt, or high levels of calcium carbonate fillers will wear the blades down faster. Regular weekly inspections are highly recommended.
For standard PVC pipe and profile extrusion, a mesh size of 30 to 40 is highly popular because it provides an excellent balance between high-quality output and high processing speed. For specialized plastic compounding and coatings, a finer mesh size of 60 to 80 is usually required.
