Why can two equal powder charges produce very different rotomolded walls? The answer often begins before molding starts.
An LLDPE Pulverizer determines how pellets become flowing, melt-ready particles. Their size distribution affects mold coverage, fusion, surface quality, and local wall buildup.
This guide explains how fines, target particles, and coarse material behave. You will also learn how to specify powder, adjust milling, and diagnose uneven walls.
Rotational molding does not push resin through a pressurized cavity. Powder tumbles inside a heated mold rotating on two axes. Particles contact the hot surface, soften, adhere, and fuse into successive layers. Every fraction must therefore travel freely before it melts.
The powder charge mainly controls average wall thickness. Particle size distribution controls how evenly that material reaches different mold areas. A good distribution helps resin cross broad panels, enter corners, and cover ribs before fusion limits further movement.
The Association of Rotational Molders particle-size method connects poor distributions to several practical defects:
Uneven wall thickness: Poor-flowing powder may accumulate on open surfaces while starving recessed features. Once those particles melt, later material cannot easily correct the imbalance.
Bridging: Interlocking or sticky particles can form temporary arches across narrow paths. Powder stops moving normally, leaving thin regions beyond the obstruction.
Roughness and pinholes: Oversized particles may not fuse completely during the available cycle. Entrapped air and irregular packing can leave internal texture or small voids.
Pigment swirling: Fines and larger particles can separate during transfer or rotation. Different fractions may then carry color unevenly across the mold.
LLDPE remains popular because it offers impact strength, chemical resistance, and useful toughness. However, its thermal behavior makes grinding control important. Excessive mill heat can soften particle edges, produce tails, and encourage clumping.
Wall thickness also develops over time. Early particles create the first skin against the mold. Later powder rolls across that growing layer and adheres where enough heat remains. If one fraction melts much earlier, it can trap air or block movement into nearby details.
Uniform walls require more than “fine powder.” They need a repeatable blend of sizes and shapes. That blend must suit the resin, mold geometry, heating profile, and rotational speed ratio.
Each particle fraction performs differently during the molding cycle. Smaller particles heat quickly because they have more surface area relative to mass. Larger particles usually flow farther, yet they need more time to melt completely.
Powder fraction | Typical behavior | Possible wall-thickness effect | Common quality risk |
Excess fines | Melt early, dust easily, and may agglomerate | Local buildup near early contact zones | Bridging, pigment separation, porosity |
Controlled middle fraction | Flows predictably and fuses steadily | More balanced layer formation | Lowest risk under stable settings |
Excess coarse material | Travels well but heats slowly | Thin details or irregular late-stage buildup | Voids, rough inner surfaces, incomplete fusion |
Fines are useful in moderation. They coat fine details early and fill spaces between larger particles. Too many fines reduce dry flow, increase dust, and may stick together. A powder cloud can also separate during handling, changing the formulation entering each mold.
The middle fraction normally carries much of the wall mass. It should move consistently, spread across the cavity, and melt within the planned oven cycle. Stable retention across these sieves often matters more than one attractive average value.
Coarse particles can support flow and bulk handling. An excessive coarse tail creates another problem. These particles may arrive at difficult areas but remain only partly fused. Extending the heating cycle can close voids, yet extra heat may oxidize or degrade already-molten resin.
Particle shape adds another layer. Clean, compact particles generally flow better than powder carrying hairs or comma-shaped tails. Those irregular pieces interlock, slowing movement through hoppers and across the mold.
A narrow particle size distribution does not mean every particle is identical. It means oversize material and uncontrolled fines remain limited around a useful center range. The preferred balance must be proven through sieve testing and molding trials.
Many buyers request 35 mesh rotomolding powder. It is a useful reference, not a complete purchasing specification. Mesh describes an opening size, while real pulverized powder contains many fractions above and below that point.
The LyondellBasell rotational molding guide notes that many rotomolding resins are ground near 35 mesh. It also presents a much broader particle diameter range. This difference shows why one mesh label cannot predict powder performance alone.
Ask a supplier or in-house laboratory to report these measurements:
Sieve-retention profile: Record the percentage retained on every selected sieve. This reveals hidden coarse tails and excessive fines.
Oversize and fines limits: Set acceptable boundaries based on actual molded results. Avoid copying another plant’s limits without trials.
Dry-flow time: Use the same funnel, sample mass, conditioning, and procedure. Trending matters more than isolated readings.
Bulk density: It affects charge volume, conveying, dosing, and packing behavior. Large shifts may indicate a changed particle profile.
Particle shape: Inspect samples for tails, flakes, melted edges, contamination, or agglomerates. A microscope makes comparisons easier.
Batch consistency: Compare incoming or milled lots against an approved control sample. Control charts reveal drift before rejection rates rise.
Laser measurements such as D10, D50, and D90 can complement sieve analysis. They describe the sizes below which 10%, 50%, and 90% of particles fall. However, irregular LLDPE particles may behave differently from smooth spheres sharing those values.
Build the final specification around a molding window. Test the same powder on representative molds, including deep recesses and sharp transitions. Record wall thickness at fixed locations, internal air temperature, oven time, rotation ratio, and finished-part defects.
This approach connects LLDPE powder mesh size to production outcomes. It also separates real particle problems from changes in mold loading, heat transfer, or machine settings.

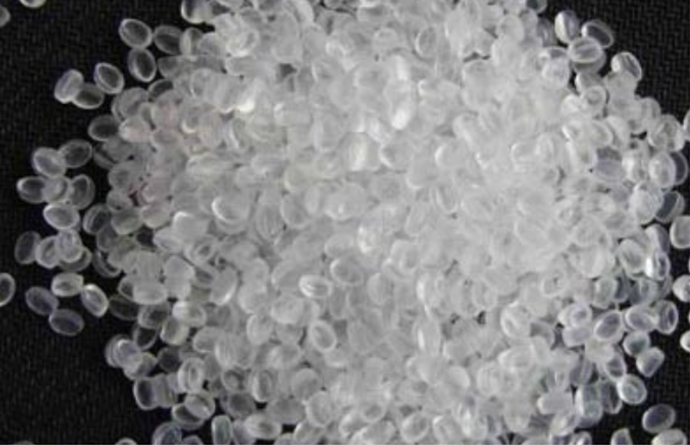

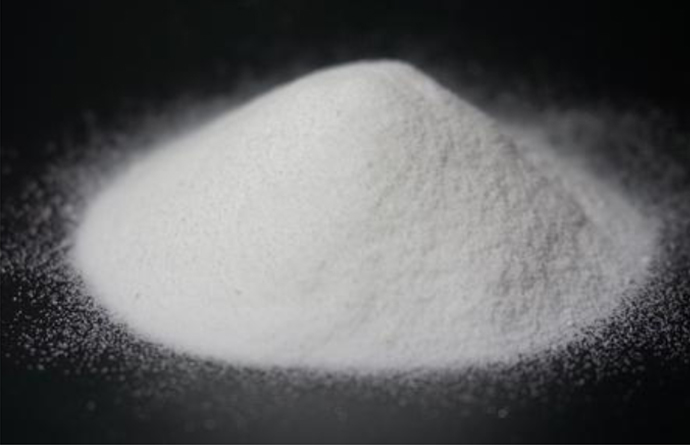

An LLDPE Pulverizer for rotomolding usually passes pellets between a rotating disc and a stationary disc. Shear and impact reduce the resin, while airflow moves particles away from the grinding zone. Screening then separates acceptable powder from oversize material.
Several controls shape the final curve:
1. Disc gap: A smaller gap generally creates finer output. An overly tight setting raises heat, energy use, and the fines fraction.
2. Feed rate: Excess feeding can overload the grinding zone. An unstable feed creates changing residence time and inconsistent batches.
3. Disc condition: Worn or damaged cutting edges produce irregular particles. Scheduled inspection protects both output and throughput.
4. Cooling: Air and water cooling remove grinding heat. Stable temperature helps prevent LLDPE softening, smearing, and agglomeration.
5. Classification: A reliable screen controls oversize return. Screen damage or blockage can quietly shift the delivered distribution.
Maoyue builds disc-type PE grinding systems for LLDPE, HDPE, and related materials. Its rotomolding material grinding solution emphasizes uniform powder for molded tanks, barriers, and playground products. Available configurations combine adjustable grinding, cooling, and dust collection.
Operators should change one variable at a time. Begin from a documented recipe, stabilize the mill, then collect samples at regular intervals. Measure sieve retention, temperature, flow time, and bulk density before approving the adjustment.
Regrinding oversize material requires care. Repeated passes may increase fines or expose resin to more heat. Blend-back percentages should stay controlled, especially when processing colored compounds or recycled feedstock.
Sampling location matters as well. A sample taken only beside the screen may not represent powder collected after conveying. Check the final collection point, because segregation can occur inside pipes, cyclones, bins, or bagging equipment.
The best setting is not simply the finest output. It is the operating window producing the required curve at stable throughput, manageable temperature, and acceptable disc wear.
Do not adjust the pulverizer whenever a thickness gauge finds variation. Powder quality is one cause among several. Charge weight, mold balance, rotation ratio, venting, oven temperature, resin melt index, and geometry can produce similar symptoms.
Use a structured check:
Observation | Powder-related check | Process-related check |
Thin recessed areas | Oversize fraction, poor flow, particle tails | Rotation ratio, mold geometry, heating |
Thick patches near broad panels | Excess fines, agglomeration | Early melting, mold orientation |
Pinholes or rough inner surface | Coarse tail, broad distribution | Short cycle, trapped air, venting |
Batch-to-batch thickness drift | Sieve profile, bulk density, feedstock | Charge accuracy, oven repeatability |
Color streaks | Fine separation, uneven particle coating | Mixing method, loading practice |
First, confirm charge weight and thickness measurement locations. Next, compare current powder against an approved sieve profile. If the profile changed, inspect disc gap, wear, feed stability, cooling temperature, screens, and recycle rate.
When choosing a plastic pulverizer for rotomolding, request a trial using your actual resin. Pigments, stabilizers, recycled content, and melt index all influence grinding behavior. Evaluate several production-length samples rather than one small startup batch.
Capacity should be based on acceptable powder, not raw feed. Ask how much product remains inside your approved distribution after screening and oversize return. Also compare energy use, cleaning access, dust control, spare-disc support, and adjustment repeatability.
For water tanks or large hollow parts, run trials across the intended wall range. A machine may perform well at one recipe yet drift during higher throughput. Long runs expose heat buildup, screen loading, and disc wear that short demonstrations can hide.
Maoyue integrates research, manufacturing, sales, and service for plastic size-reduction equipment. Its rotomolding powder production solution can be reviewed when planning feed, milling, screening, and collection around a target output.
Finish acceptance trials in the mold. Track thickness at defined points across several cycles. This evidence shows whether the selected PE powder grinding machine produces repeatable powder, not merely an acceptable sieve report.
Powder charge sets nominal thickness, but distribution strongly affects wall uniformity. Controlled fines, middle fractions, coarse particles, and particle shape help LLDPE travel and fuse evenly.
A capable LLDPE Pulverizer must hold this balance across real production runs. Maoyue supports that goal through adjustable grinding, cooling, classification, and application testing.
Specify the complete powder profile, then verify it through repeatable molding trials.
A: Many processors use powder near 35 mesh, but this is only a reference point. The acceptable sieve distribution depends on resin grade, mold geometry, wall target, and cycle settings. Approve a complete retention profile through molding trials.
A: No. Moderate fines can improve early coverage, but excess fines reduce flow and encourage clumping. They may create thick patches, dust, pigment separation, or bridging. Balanced distribution is more useful than maximum fineness.
A: Coarse particles need more heat and may not enter small features efficiently. They can leave recesses underfilled or partly fused. Extending the cycle may help fusion, but excessive heat can degrade the resin.
A: Use a controlled sieve stack, consistent sample mass, fixed shaking conditions, and retained-weight reporting. Add dry-flow time, bulk density, and particle-shape inspection. Compare every batch against an approved production profile.
A: Disc gap, feed rate, disc condition, rotor speed, cooling, screening, and oversize recycle all matter. Change one setting at a time. Then check temperature, sieve retention, flow, and bulk density.
A: No. Also inspect powder charge, rotation ratio, mold balance, geometry, oven temperature, venting, and resin melt index. A controlled trial helps isolate the true cause before equipment adjustments.
