When choosing a plastic pulverizer, many buyers focus first on motor power, production capacity, or automation features. However, experienced manufacturers know that the grinding disc is the true core component that determines overall machine performance.
A high-quality grinding disc directly affects production capacity, powder fineness, energy consumption, maintenance frequency, and even the overall service life of the pulverizer.
Today, DC53 and D2 tool steel are the two most commonly used materials for manufacturing grinding discs. But which one is the better choice for long-term, stable plastic pulverizing?
In this article, we will provide a comprehensive comparison of DC53 vs. D2 grinding discs, covering material properties, real-world performance, long-term operating costs, and industrial applications to help you make a more informed purchasing decision.
The grinding disc is the most critical working component inside a plastic pulverizer. During operation, two precision-machined grinding discs rotate at high speed while maintaining a very small, adjustable gap.
As plastic granules enter the gap between the discs, they are continuously cut, sheared, rubbed, and impacted until they are processed into fine plastic powder.
You can think of the grinding discs as the "teeth" of a plastic pulverizer. Just as sharp teeth improve chewing efficiency, high-quality grinding discs significantly enhance pulverizing performance.
For this reason, the grinding disc is far more than a consumable part—it is the core component that determines machine performance, production efficiency, and long-term operating costs.
Choosing premium grinding disc materials, advanced manufacturing processes, and an optimized disc design is essential for achieving efficient, stable, and cost-effective plastic pulverizing.
In a plastic pulverizer, the grinding disc is the core component that comes into direct contact with plastic particles to perform cutting, shearing, and grinding. As a result, the material of the grinding disc plays a decisive role in the machine's overall efficiency, reliability, and long-term performance.
The material of a grinding disc directly affects several key performance factors:
Wear Resistance – Determines the service life of the grinding disc and its ability to maintain sharp, effective cutting teeth.
Heat Resistance – Ensures stable performance during continuous operation and minimizes performance loss caused by high temperatures.
Impact Toughness – Reduces the risk of chipping, tooth breakage, and cracking, especially when processing recycled plastics or materials containing small impurities.
Pulverizing Stability – Helps maintain consistent production capacity and reliable grinding performance over extended periods.
Powder Particle Size Consistency – Less disc wear results in a more uniform particle size distribution and higher-quality plastic powder.
Maintenance Interval – Superior wear resistance reduces the frequency of grinding disc replacement and gap adjustment.
Total Operating Cost – A longer service life means fewer spare parts, less downtime, and lower maintenance costs.
Poor-quality grinding discs wear out quickly, leading to inconsistent particle size, reduced powder quality, higher energy consumption, and more frequent replacement. In contrast, premium tool steel grinding discs can maintain stable performance throughout thousands of hours of continuous operation, providing greater productivity and a lower total cost of ownership.

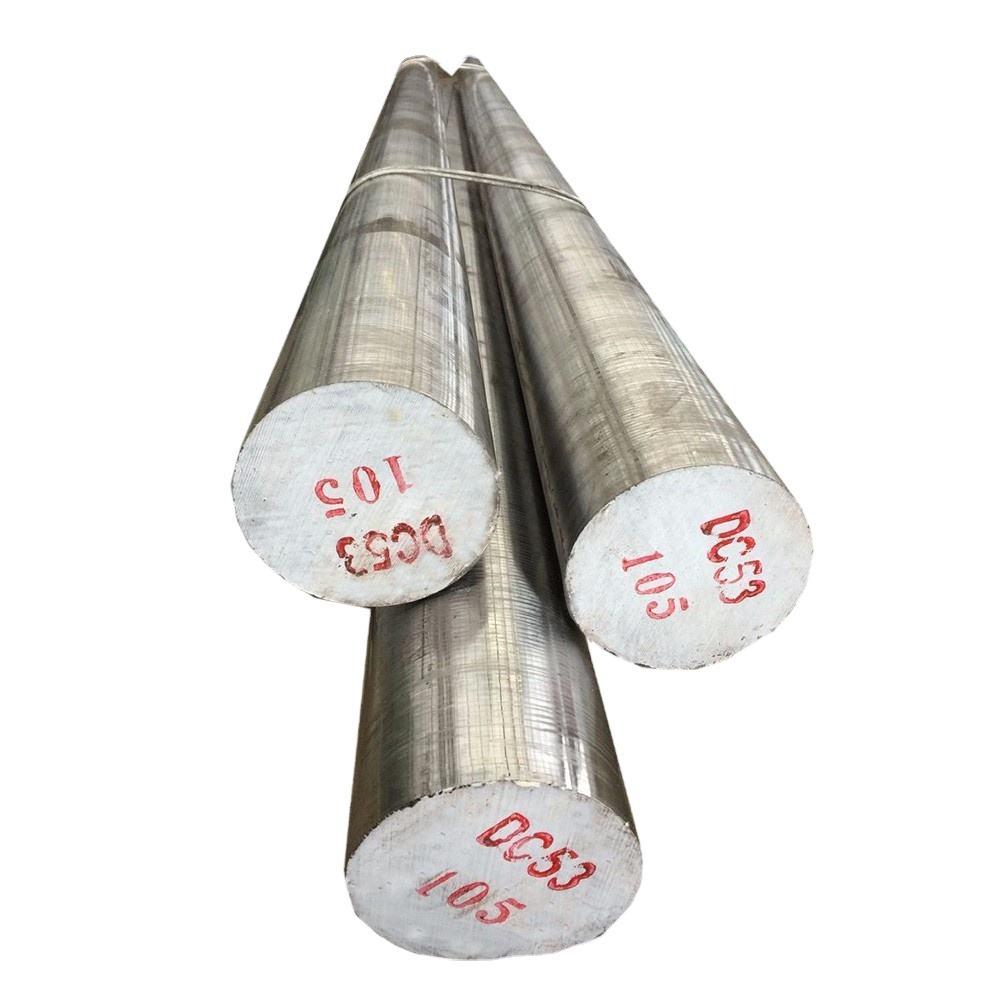

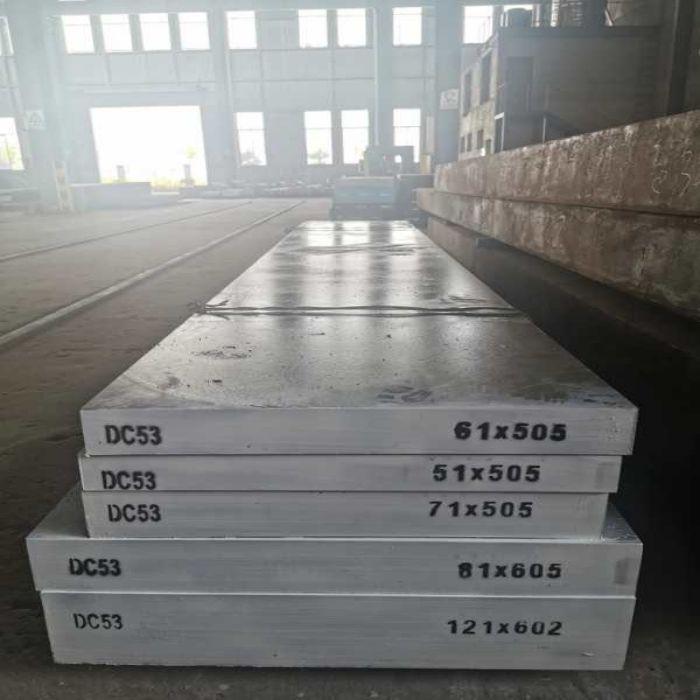

DC53 is a high-performance cold work tool steel developed in Japan and can be considered an upgraded version of traditional D2 tool steel. It combines high hardness with excellent toughness, making it highly suitable for high-speed industrial equipment such as plastic pulverizers.
DC53 is a high-carbon, high-chromium cold work tool steel. Its typical chemical composition mainly includes:
Carbon
Chromium
Molybdenum
Vanadium
Through optimized alloy design and heat treatment, DC53 forms a more uniform and refined carbide structure. This not only significantly improves wear resistance but also effectively reduces the risk of cracking and chipping caused by stress concentration in traditional tool steels. As a result, DC53 can maintain stable performance under high-load and long-term continuous operating conditions.
Compared with conventional tool steels, DC53 offers the following advantages:
During operation, the grinding discs in a plastic pulverizer are exposed not only to continuous friction and wear but also to impact loads caused by plastic particles, recycled materials, and occasional impurities mixed into the raw materials. If the disc material lacks sufficient toughness, problems such as tooth chipping, cracks, and even disc breakage may occur.
DC53 provides significantly higher impact toughness than traditional D2 tool steel, allowing it to better absorb impact stresses generated during high-speed operation and maintain reliable performance.
Thanks to its more uniform carbide distribution and superior material stability, DC53 demonstrates a much lower wear rate than standard D2 tool steel during long-term pulverizing operations.
Even after extended continuous operation, DC53 grinding discs can maintain excellent tooth geometry and cutting performance, ensuring more consistent powder particle size, stable grinding efficiency, and reduced output loss caused by disc wear.
Under the same machine configuration, raw materials, and production conditions, grinding discs made from DC53 tool steel typically achieve a service life improvement of approximately 20%–50% compared with traditional D2 grinding discs. In certain processing conditions, they can provide even longer continuous operating periods.
Because DC53 grinding discs wear more slowly and maintain their tooth profile for a longer period, the frequency of disc adjustment and replacement is significantly reduced.
This helps minimize maintenance workload, lower spare parts inventory requirements, improve equipment utilization, and enhance continuous production capacity.

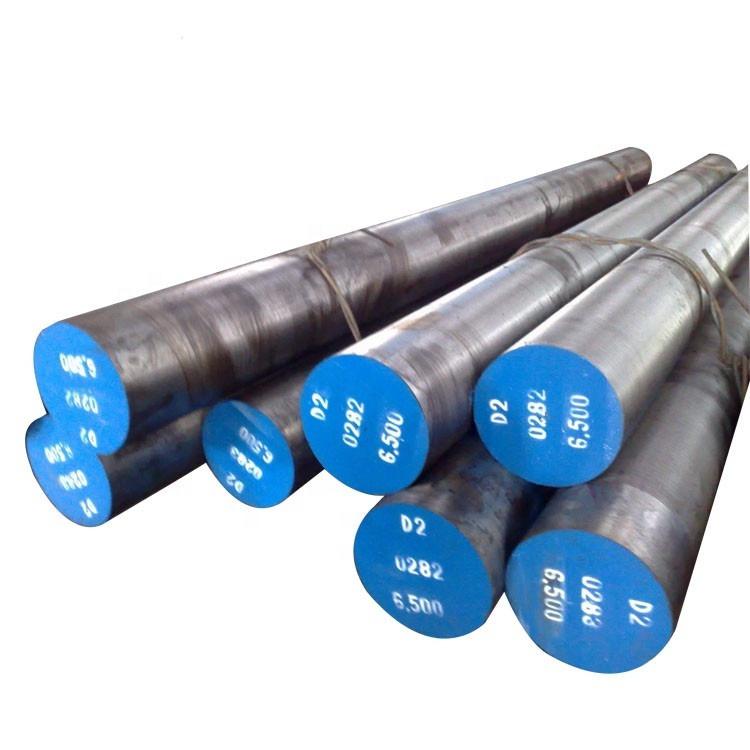

D2 is one of the most widely used cold work tool steels in the world. For decades, it has been extensively applied in the manufacturing of cutting tools, molds, industrial blades, and grinding discs. Its excellent hardness makes it suitable for a wide range of medium-load industrial applications.
D2 is a typical high-carbon, high-chromium cold work tool steel. Its main chemical composition includes:
High Carbon
High Chromium
Small amounts of Molybdenum
Vanadium
The high carbon and chromium content allows D2 to form a large amount of hard carbide structure, providing excellent wear resistance. However, this relatively coarse carbide distribution also reduces the material's toughness, making it more susceptible to chipping, cracking, and even breakage under continuous impact or high-load operating conditions.
Although D2 has been developed for many years, it remains one of the most widely used tool steels in global industrial applications due to its proven material properties and mature manufacturing processes.
Lower material cost
High hardness
Mature and stable manufacturing process
Wide global availability
D2 grinding discs still perform reliably in standard plastic pulverizing applications. However, as modern plastic processing industries demand higher equipment performance, the limitations of D2 are becoming increasingly noticeable.
Due to its relatively lower toughness, D2 grinding discs are more likely to experience tooth chipping, cracks, and localized wear during long-term high-speed operation or when processing recycled plastics containing impurities.
As the grinding disc continues to wear, the tooth profile gradually changes, affecting the stability of the grinding gap. This can result in fluctuations in powder particle size, reduced production capacity, and increased energy consumption.
Choosing between DC53 and D2 is not simply about selecting a material with higher hardness. An ideal grinding disc requires the right balance between hardness, wear resistance, toughness, heat resistance, and service life.
The comparison below highlights the key differences between these two materials in plastic pulverizing applications.
Property | DC53 | D2 | Description |
|---|---|---|---|
Hardness | HRC 60–62 | HRC 58–60 | DC53 has slightly higher hardness. |
Wear Resistance | ★★★★★ | ★★★★☆ | DC53 offers better wear resistance. |
Toughness | ★★★★★ | ★★★☆☆ | DC53 has stronger resistance to chipping and cracking. |
Heat Resistance | Excellent | Good | DC53 is more suitable for continuous production. |
Service Life | 20–50% Longer | Standard | DC53 has a longer service life. |
Maintenance Frequency | Lower | Higher | DC53 requires fewer maintenance intervals. |
Long-term Cost | Lower | Higher | DC53 has a lower overall cost. |
Hardness is one of the key indicators for evaluating grinding disc performance. It determines the ability of the disc teeth to resist deformation during continuous operation.
Both materials offer high hardness, but after proper heat treatment, DC53 can typically achieve higher and more stable hardness. This allows the plastic pulverizer to continuously produce more consistent plastic powder while reducing quality fluctuations caused by grinding disc wear.
A more stable tooth profile means the grinding disc can maintain sharp cutting edges for a longer period, resulting in more consistent pulverizing performance.
Plastic pulverizing is essentially a continuous wear process. Every kilogram of plastic material passing through the grinding discs gradually wears down the disc teeth.
The better the wear resistance, the longer the grinding disc can maintain its original tooth profile and cutting performance.
Thanks to its more uniform and refined carbide structure, combined with an optimized alloy composition, DC53 provides significantly better wear resistance than traditional D2 tool steel.
Its slower wear rate allows the grinding disc to maintain excellent tooth geometry and cutting efficiency even after long-term continuous operation. This ensures continuous production of plastic powder with consistent particle size and stable quality.
For factories operating two or three shifts per day, this advantage can significantly reduce downtime and improve overall equipment utilization.
High hardness without sufficient toughness is like glass—it is hard but easy to break.
During plastic pulverizing, grinding discs are continuously exposed to impact forces caused by plastic particles, modified materials, and small impurities contained in recycled plastics.
The impact toughness of DC53 is approximately twice that of traditional D2 steel, significantly reducing the risk of tooth chipping, cracking, and disc damage.
During plastic pulverizing, high-speed friction continuously generates heat. If the grinding disc cannot withstand elevated temperatures, thermal stress can accelerate wear and affect machining accuracy.
Even under higher operating temperatures, DC53 can maintain high hardness and mechanical strength, reducing the risk of deformation or performance degradation caused by thermal stress.
Therefore, DC53 is more suitable for long-term continuous production.
For plastic processing companies, grinding disc service life is not only related to spare parts costs but also directly affects equipment availability and production scheduling.
A longer-lasting grinding disc means:
Reduced downtime for disc replacement and improved equipment utilization
Stable powder particle size and product quality over long periods
Lower spare parts inventory and purchasing frequency
Reduced labor and maintenance costs
Improved production efficiency and delivery capability of the entire production line
Many industrial users report that under the same operating conditions, DC53 grinding discs can extend service life by 20%–50% compared with D2 grinding discs.
For high-output factories with continuous production, this means fewer grinding disc replacements throughout the year, reduced maintenance workload, and improved overall production efficiency.
Although DC53 grinding discs have a slightly higher initial purchase cost, their longer service life and lower maintenance requirements result in lower overall operating costs.
For high-volume, continuous plastic processing companies, adopting DC53 grinding discs can reduce downtime, improve equipment utilization, lower maintenance frequency, and ensure long-term product quality stability.
Many companies have found that the production efficiency improvements and maintenance savings brought by DC53 can often recover the additional material investment within several months, while continuing to generate greater economic benefits over the following years.
The answer depends on your specific production requirements.
You have a smaller production capacity and shorter daily operating hours
You have a limited budget and want to reduce initial equipment investment costs
Your production is not continuous and mainly based on intermittent processing
You process standard plastics and do not have strict requirements for grinding disc service life or powder consistency
Maintenance is convenient and you can accept regular grinding disc adjustment or replacement
You operate continuous industrial production with two or three shifts per day
You require high-volume pulverizing with stable production capacity over long operating periods
You process PVC and require high powder fineness and excellent particle size consistency
You grind PE, PP, and other polyolefin materials that require long-lasting cutting performance
You process engineering plastics such as PA, ABS, PC, and PBT, which have higher wear resistance requirements
You manufacture modified plastics or masterbatch products that require stable powder particle size
You process recycled plastics where better impact resistance is needed to handle impurities
You aim for lower maintenance costs, longer service life, reduced downtime, and higher equipment utilization
For modern plastic processing companies, DC53 has become the preferred choice for an increasing number of manufacturers because it provides higher reliability, longer service life, and lower overall operating costs.
Over the past decade, the plastic processing industry has undergone significant changes. Plastic manufacturers are no longer focused only on the initial equipment purchase cost. Instead, they are paying more attention to production efficiency, product quality, and long-term operating costs.
Modern plastic processing companies are increasingly focused on the following key factors:
Higher production efficiency — They expect equipment to maintain stable output during long-term operation and minimize efficiency losses caused by grinding disc wear.
Lower energy consumption — Grinding discs that maintain sharp tooth profiles for longer periods help reduce pulverizing resistance, lowering energy consumption per unit of production.
Longer service life — Extending grinding disc replacement cycles reduces spare parts costs and minimizes production downtime.
More stable powder quality — Maintaining a stable grinding gap ensures more uniform powder particle size and improves product consistency.
Lower maintenance costs — Reducing grinding disc adjustment, replacement, and equipment maintenance frequency helps increase production line uptime.
Higher equipment reliability — Even during continuous two-shift, three-shift, or 24-hour production, the equipment can maintain stable operation while reducing the risk of unexpected failures.
Although traditional D2 tool steel can still meet the requirements of many standard plastic pulverizing applications, its limitations in wear resistance, impact toughness, and long-term dimensional stability become increasingly apparent under high-load and continuous production conditions.
With its better balance of hardness, toughness, and wear resistance, DC53 has become an increasingly preferred material among high-end plastic pulverizer manufacturers.
For high-performance plastic pulverizers, a premium grinding disc is determined by far more than the material itself. Although DC53 tool steel offers excellent wear resistance and toughness, its full potential cannot be achieved without precise machining, proper heat treatment, and strict quality control.
Therefore, a truly outstanding grinding disc is the result of the combined performance of material selection, manufacturing processes, machining accuracy, and quality management.
With more than 30 years of experience in plastic pulverizer manufacturing, Changzhou Mao Yue Intelligent Equipment Co., Ltd. has always implemented strict quality control throughout the entire production process, from raw material selection to final inspection. By continuously optimizing grinding disc manufacturing technology, Maoyue provides global plastic processing companies with more durable, stable, and efficient grinding discs and plastic pulverizing solutions.
Every Maoyue grinding disc undergoes strict process control and multiple quality inspections, helping customers achieve more stable pulverizing performance, longer service life, and lower overall operating costs.
High-quality material is the foundation of high-performance grinding discs.
To meet the pulverizing requirements of different plastic materials, including PVC, PE, PP, engineering plastics, masterbatch, and recycled plastics, Maoyue widely uses premium DC53 cold work tool steel to manufacture grinding discs, providing more reliable performance for continuous and high-load production.
Compared with conventional materials, DC53 offers higher wear resistance, better toughness, and more stable dimensional retention, making it highly suitable for long-term continuous operation.
Even the best material requires precision manufacturing technology to fully realize its performance advantages.
The machining accuracy of grinding disc teeth directly determines the matching gap between the discs. The grinding gap directly affects plastic powder fineness, particle size consistency, and overall machine output. Therefore, every detail in grinding disc manufacturing is critical.
Maoyue is equipped with multiple high-precision CNC machining centers to precisely process each grinding disc. Strict control of machining dimensions and tooth profile accuracy ensures excellent consistency and interchangeability of every disc.
This helps achieve:
More uniform grinding teeth and higher cutting efficiency
More precise grinding gap control and more stable powder particle size
Reduced uneven wear and improved wear resistance
Lower equipment vibration and noise for improved machine stability
Extended service life of bearings and other critical components
Premium material alone does not determine grinding disc quality. Scientific heat treatment is essential to fully unlock the performance advantages of DC53 material.
Maoyue applies mature heat treatment processes, including precise quenching, tempering, and stress-relief treatment. Heat treatment parameters are optimized according to different plastic materials and operating conditions, achieving an ideal balance between high hardness and high toughness.
Advanced heat treatment not only improves wear resistance but also effectively reduces internal residual stress, minimizing the risks of tooth chipping, cracking, and thermal deformation. This allows the grinding discs to maintain stable performance during long-term continuous production.
This is one of the key reasons why Maoyue grinding discs can maintain sharp tooth profiles and stable grinding performance over extended operating periods.
High-speed rotating grinding discs must maintain excellent dynamic balance. Even minor imbalance can increase vibration, increase bearing loads, raise operating noise, and accelerate equipment wear.
Maoyue performs dynamic balancing inspections on every grinding disc to ensure stable operation at high speeds, reduce vibration, and improve equipment reliability.
Grinding discs after dynamic balancing inspection can effectively achieve:
Reduced equipment vibration
Lower bearing and main shaft loads
Reduced operating noise
Improved high-speed operating stability
Extended machine service life
More consistent and stable powder particle size
Before delivery, every grinding disc undergoes multiple quality inspection procedures.
Inspection items include:
Material inspection
Dimensional inspection
Hardness testing
Dynamic balancing inspection
Surface quality inspection
Only products that meet strict quality standards are delivered to customers.
It is this continuous pursuit of superior materials, advanced processes, and strict quality management that enables Maoyue grinding discs to deliver excellent wear resistance and long-term stability. They help customers achieve higher production efficiency, more consistent powder quality, lower maintenance costs, and longer equipment service life.
Not necessarily. For applications with lower production volumes or limited budgets, D2 remains a reliable choice. However, for continuous industrial production, DC53 typically provides higher durability, more stable performance, and lower long-term operating costs.
DC53 is a high-performance tool steel with superior wear resistance and toughness. Although its initial purchase cost is higher, its longer service life usually results in lower overall operating costs.
It can improve output indirectly. Because DC53 grinding discs maintain their tooth profile for a longer period and provide more stable grinding gaps, the equipment can maintain consistent production capacity and powder quality over long-term operation.
For high-output PVC pulverizing machines operating continuously, DC53 is usually the more suitable choice because of its superior wear resistance and toughness.
The replacement cycle of grinding discs depends on the processed material, operating hours, maintenance practices, and working conditions. Regular inspection of disc wear is recommended to ensure the equipment maintains optimal performance.
Using high-quality raw materials, properly adjusting the grinding gap, maintaining an effective cooling system, preventing metal contaminants from entering the machine, and performing regular maintenance can all help extend grinding disc service life.
Both DC53 and D2 are widely used tool steels for plastic pulverizer grinding discs, but they are suitable for different production requirements.
If you have lower production volumes and a limited budget, D2 remains an economical and practical choice.
However, if you are looking for higher productivity, longer service life, lower maintenance costs, and more consistent powder quality, DC53 is undoubtedly the better long-term investment.
At Maoyue Intelligent Equipment, we combine premium materials, precision machining, advanced heat treatment processes, and strict quality control to provide high-performance grinding discs and complete plastic pulverizing solutions for customers worldwide.
Whether you process PVC, PE, PP, ABS, PA, TPU, EVA, or other engineering plastics, selecting the right grinding disc is a critical step toward improving production efficiency, reducing operating costs, and achieving stable long-term production.
